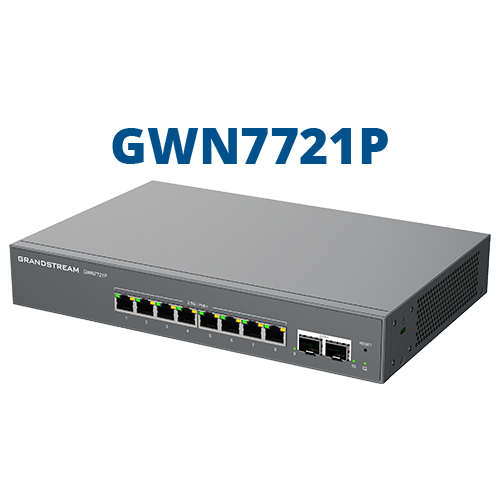

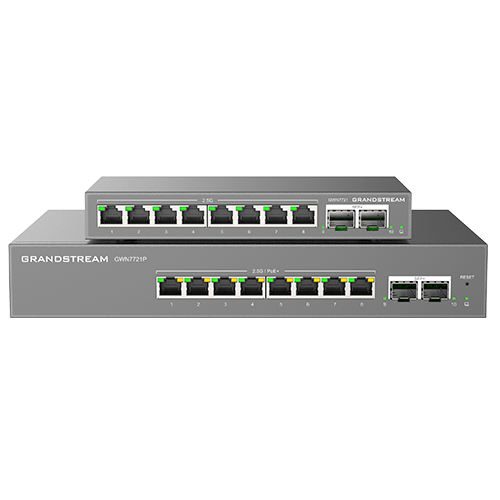

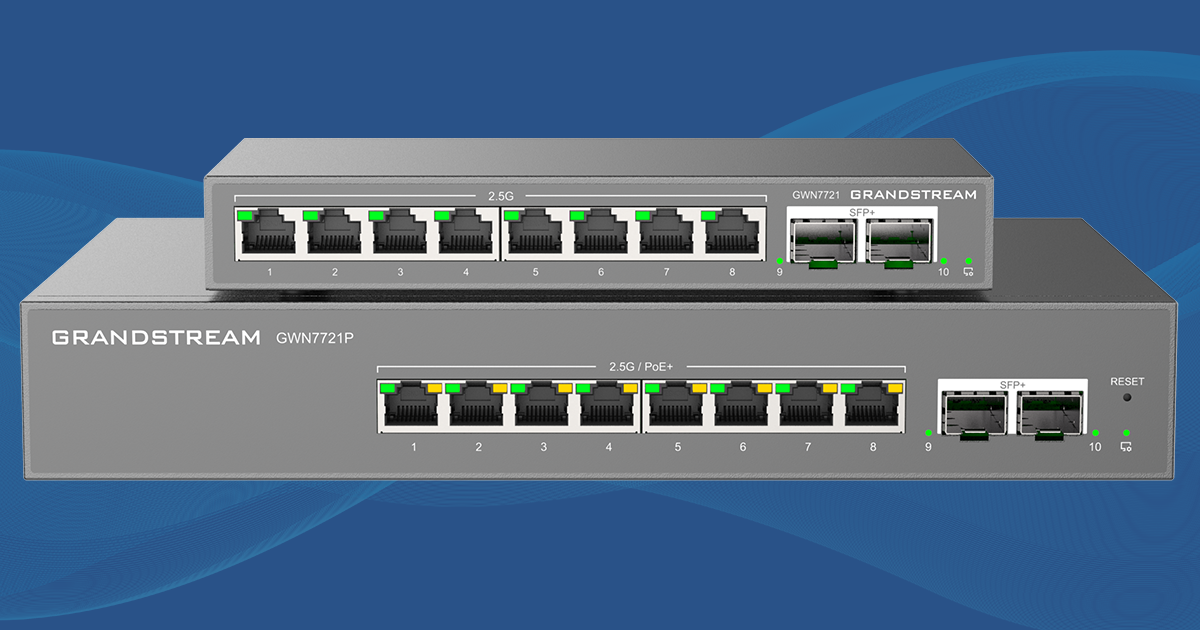

    GWN7721(P) Series

    Layer 2 Lite Managed 2.5 Gigabit Network Switches

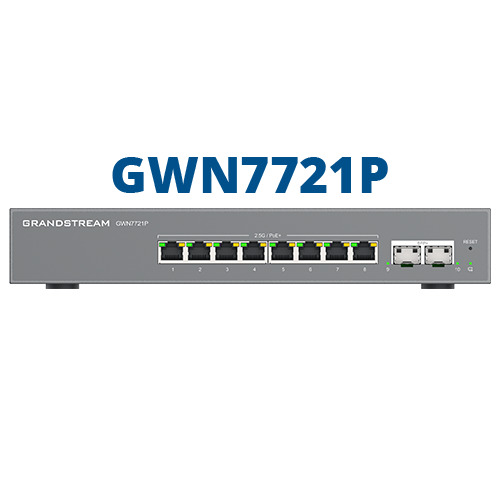

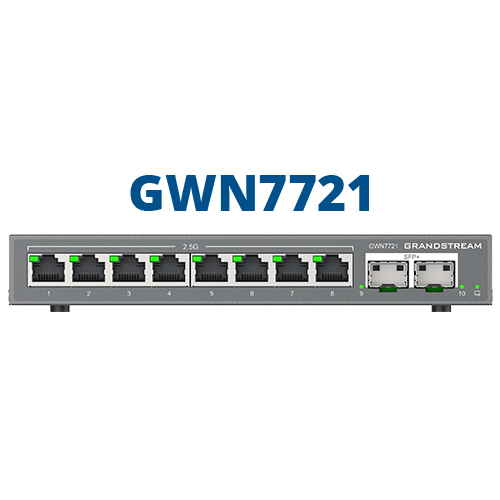

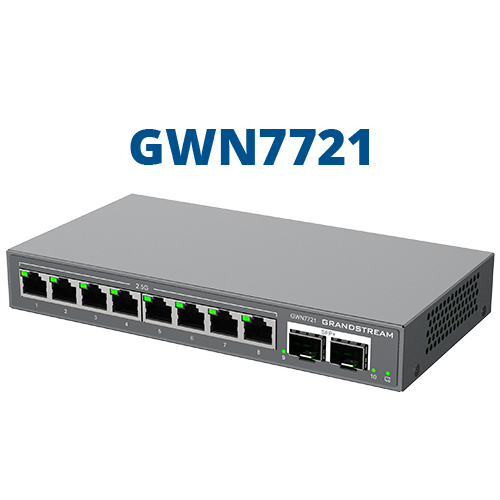

    The GWN7721 and GWN7721P are 10-port Layer 2 Lite Managed Switches equipped with 8 2.5-Gigabit Ethernet ports and 2 10-Gigabit SFP+ ports to allow small-to-medium businesses to build scalable and secure high-speed networks.

    • 8x 2.5 Gigabit Ethernet ports and 2x 10 Gigabit SFP+ ports
    • GWN7721P ports 1-8 support PoE and provide smart power control to support dynamic PoE/PoE+ power allocation per port
    • Supports Loop Detection, Cable Test and Port Mirroring to quickly locate network faults
    • SNMPv2 remote monitoring, fault diagnosis, and configuration  management
    • STP/RSTP to guarantee fast convergence, ensure network stability and provide link load balancing
    • Free and flexible management options include the local web user interface, GWN Manager, and GDMS Networking
    • DHCP Snooping ensures DHCP packets are only allowed from trusted ports to keep the DHCP environment safe
    • Built-in QoS allows for prioritization of network traffic
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Build Scalable and Secure High-Speed Networks

    Grandstream's GWN7721 Series of 10-Port Layer 2 Lite Managed Network Switches targets a wide range of network construction scenarios across various industries such as hotels, home offices, and small to medium-sized enterprises

    • The GWN7721 Series supportscomplex VLAN traffic segmentation, port-based VLAN, DSCP and 802.1p QoS priority management modes and IGMP Snooping to provide bandwidth control and maximize network performance.
    • The GWN7721P’s 8 Ethernet ports all provide PoE power output, suitable for IP phones, IP cameras, Wi-Fi access points, and more.
    • These Layer 2 Lite network switches offer a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, and through their web user interface.
    • By providing high-speed 2.5 Gigabit Ethernet and 10 Gigabit SFP+ ports, layer 2 lite control, flexible management options, and advanced security protection, the GWN7721 and GWN7721(P) are ideal for small to-medium businesses, hotels, home offices, and more.

    Product Comparison

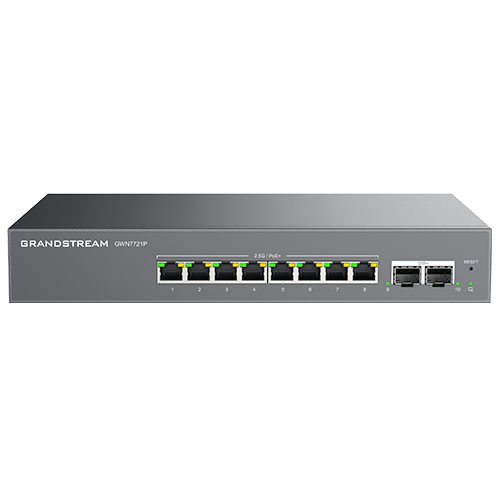

    NameGWN7721P
    Specs
    STANDARDS AND PROTOCOLS IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
    GIGABIT PORTS 10
    POE PORTS (POE MODELS) 8
    PORT FEATURES 8x 2.5 Gigabit Ethernet Ports, 2x 10 Gigabit SFP+ Ports
    PoE CONFIGURATION (PoE MODELS) Port 1-8 support 802.3af/at standard PoE out: - Up to 30W per port PoE out
    LED INDICATORS Per device: Power- Green Per port: Link/Activity - Green GWN7721P Port 1-8: PoE power state - Yellow
    SWITCHING CAPACITY 80Gbps
    JUMBO FRAME 1518, 2048, 3072, 4096, 5120, 6144, 7168, 8192, 9216
    ENCLOSURE Metal

    Related Products

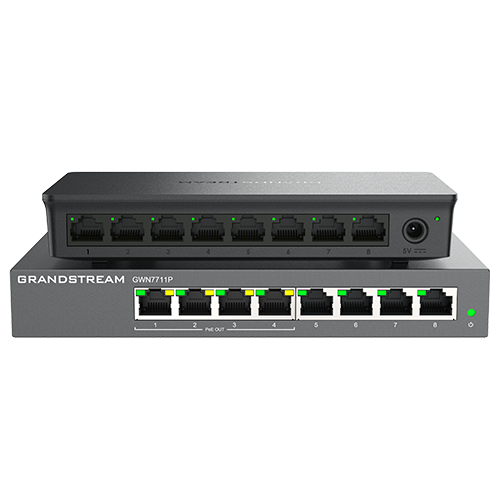

    GWN7711(P)

    GWN7711(P)

    GWN7711(P)

    GWN7711(P)_1

    • 8 Gigabit Ethernet ports
    • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
    • Supports Loop Detection, Cable Test, and Port Mirror to quickly locate network faults
    • IGMP snooping to improve multicast forwarding efficiency
    • LLDP for automatic discovery, provisioning and management of endpoint devices
    • GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platforms; Embedded controller to manage switch
    • Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
    • Built-in QoS allows for prioritization of network traffic

    GWN7710R

    GWN7710R

    GWN7710R

    GWN7710R_2

    • 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
    • IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
    • SFP Fiber Port for long-distance transmission
    • DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
    • IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
    • Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
    • STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
    • Built-in QoS allows for prioritization of network traffic

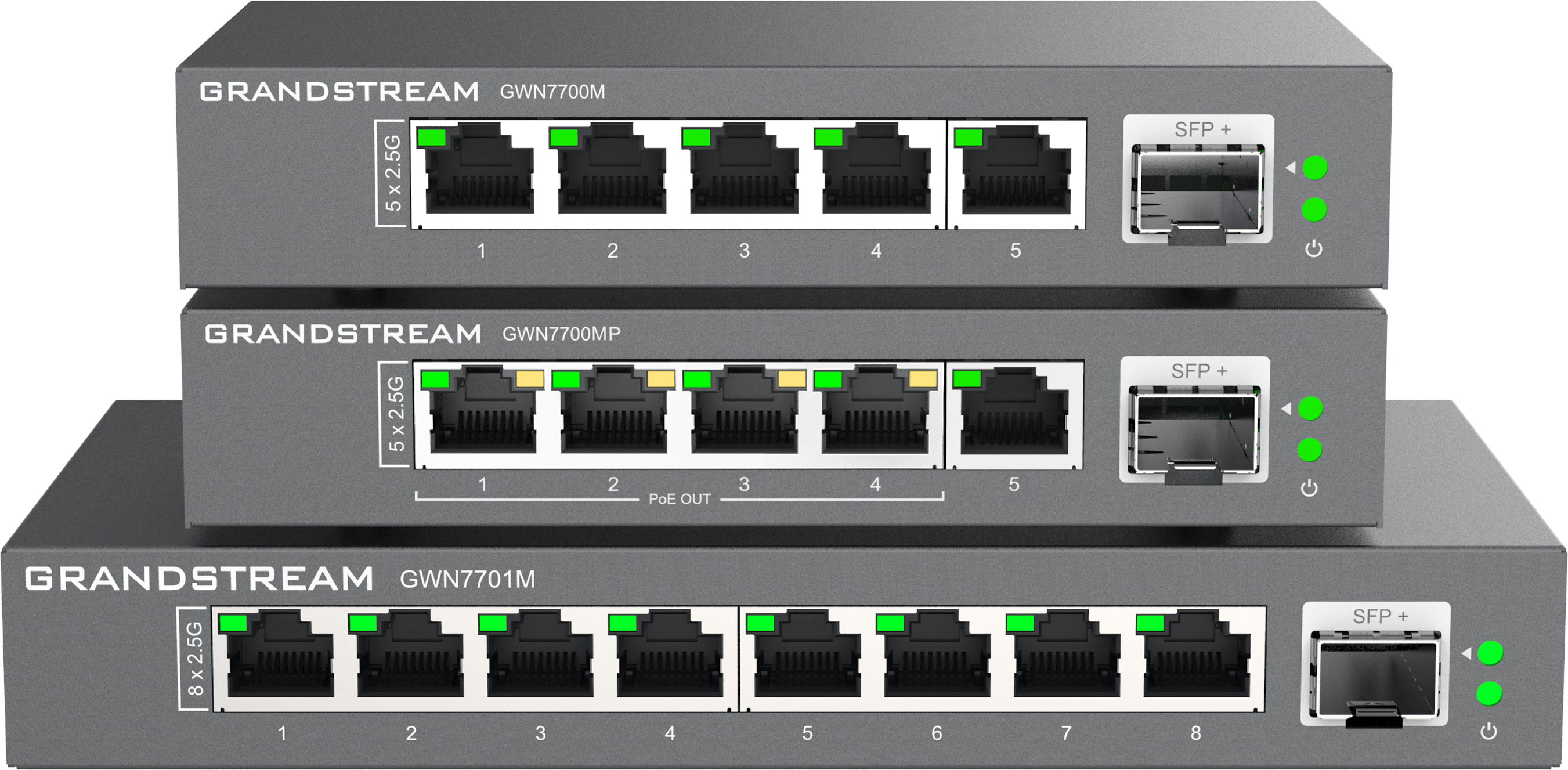

    GWN7700M Series

    GWN7700M Series

    GWN7700M Series

    GWN7700M-7700MP-7701M

    • 3 Models - GWN7700M, GWN7700MP, and GWN7701M
    • 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
    • One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
    • LED Indicators; Per port: Link/Activity/Speed Per device: Power
    • Auto MDI/MDIX crossover for all ports
    • Whisper Quiet: fanless
    • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
    • Green technology reduces power consumption
    • QoS - Supports Default Strict Priority when present

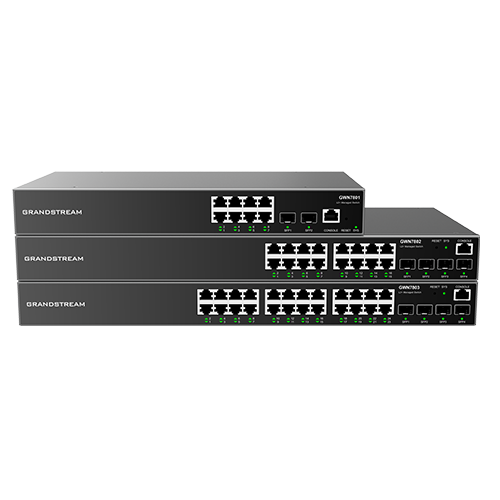

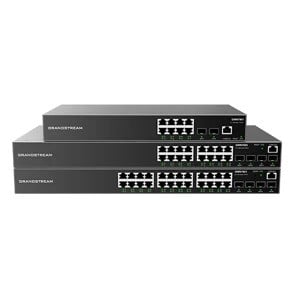

    GWN7801(P) - GWN7802(P) - GWN7803(P)
