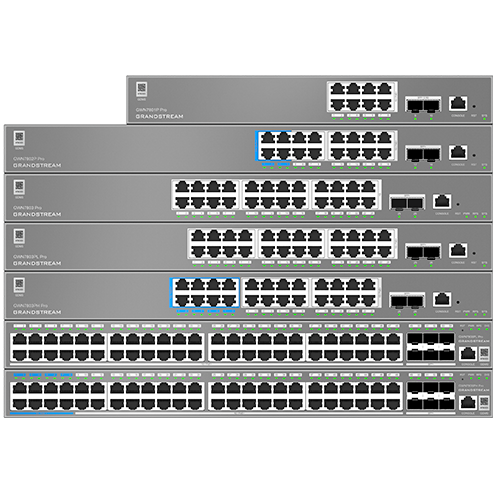

    GWN7800 Pro Series

    Enterprise Layer 2++ Managed Network Switches
    The GWN7800 Pro Series are layer 2++ managed network switches that allow small-to-medium enterprises to build scalable, secure, and high-performance business networks that are fully manageable.

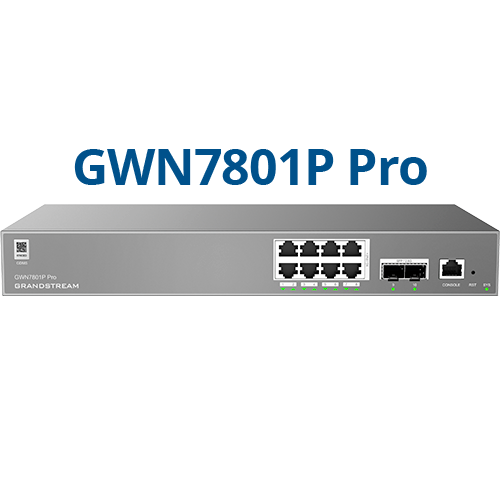

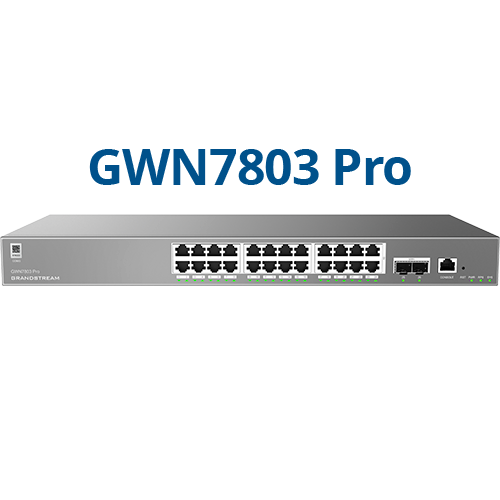

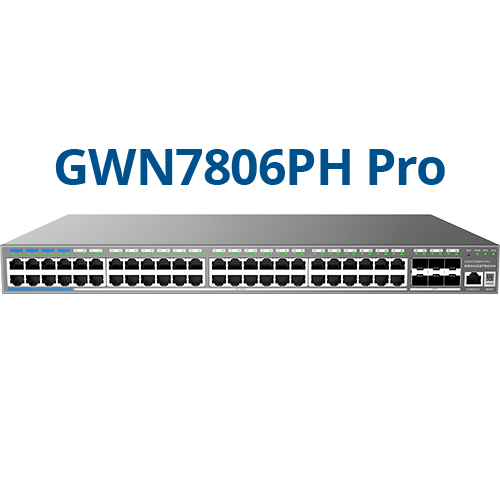

    • 7 models available - GWN7801P Pro, GWN7802P Pro, GWN7803 Pro, GWN7803PL Pro, GWN7803PH Pro, GWN7806PL Pro, and GWN7806PH Pro
    • 8/16/24/48 Gigabit Ethernet ports, 2 Gigabit SFP ports, and 2/6 Gigabit SFP+ Ports
    • Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) power allocation per port for the PoE-capable models
    • Supports deployment in IPv6 and IPv4 networks
    • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
    • Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
    • Pro AV (pending) uses built-in QoS that allows for prioritization of network traffic
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Powerful Processing Capabilities

    Grandstream's GWN7800 Pro Series switches come with powerful processing capabilities to ensure a high-performance backbone for any network.

    • Unicast routing via ACL for data communication routing between different network segments. Supports DHCP Server and Relay to assign IP addresses to hosts within the network.
    • GVRP for VLAN dynamic distribution, registration, and attribute propagation, to reduce the amount of manual configuration and ensure the correctness of configuration.
    • QoS, including Port Priority, Priority Mapping, Queue Scheduling, Traffic Shaping, and Rate Limit.
    • ACL is used to recognize the filtering of data packets by configuring matching rules, processing operations and time schedule, and providing flexible security access control policies.
    • IPv6 for the network transition from IPv4 to IPv6.
    • Up to 32 Link Aggregation groups depending on device

    GWN7800 Pro Series Deployment Scenarios

    GWN7800 Pro Series is ideal for small-to-medium-sized deployments and can be used for multiple deployment scenarios.

    • Offices - Small to medium enterprise offices can leverage the GWN7800 Pro series to create a network foundation for their Wi-Fi, IP endpoint, and workstation devices. Within a typical office deployment, the GWN7800 Pro series of switches best fit in the Data Link layer in reference to the Open Systems Interconnection model (OSI model).
    • Education - Grandstream's GWN7800 Pro series of Layer 2++ Switches provide a wide variety of capabilities and features to help improve the experience of all users on the network. The switches are also an ideal choice for an education solution due to their port customization, PoE capabilities, and complete network access customization.
    • Hotels -  Within a typical hotel deployment, a single GWN7800 Pro Layer 2++ switch can be deployed for every floor, providing both a rapid network connection and power. With up to 48 Gigabit ports, each port supporting gigabit speeds and IEEE 802.3af/at PoE, each GWN7800 Pro can connect to and power up to 48 Wi-Fi access points.

    Product Comparison

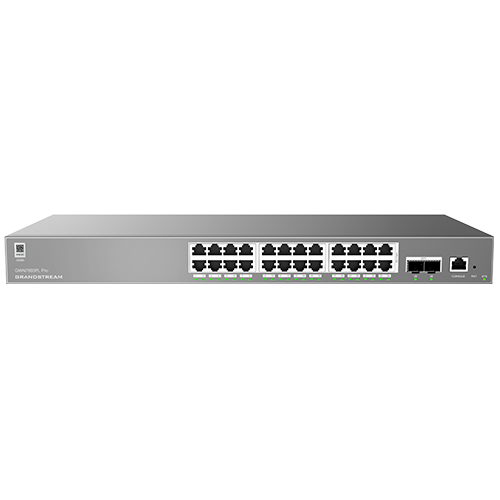

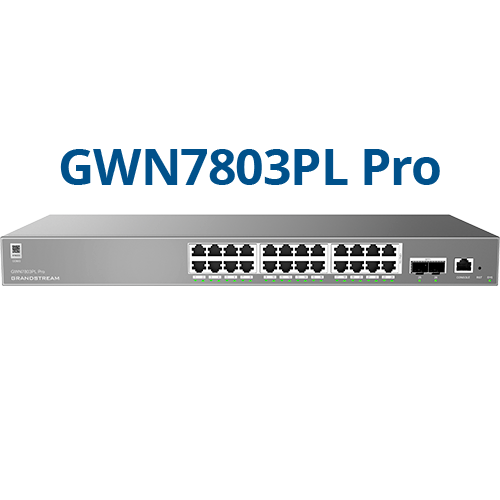

    NameGWN7803PL Pro
    specs
    Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
    Gigabit Ethernet Ports 24
    Gigabit SFP+ Ports 2
    PoE Ports (PoE Models Only) 24
    PoE Standards IEEE 802.3af/at
    Total PoE Output Power (PoE Models Only) 250W (30W per port)
    Total Non Blocking Throughput 44Gbps
    Switching Capability 88Gbps
    Forwarding Rate 65.472Mpps
    Switching Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending) ERPS(pending), 16K MAC addresses
    Security
    • User hierarchical management and password protection, HTTPS, SSH, Telnet
    • Identity authentication, including 802.1X and MAC authentication
    • AAA authentication, including RADIUS, TACACS
    • Storm control
    • Port isolation
    • Port security, sticky MAC address, filtering invalid MAC addresses
    • IP/IPv6 source guard, DoS attack prevention, ARP inspection, CPU protection
    • Loop protection, including port loopback detection, BPDU protection, root protection, and loopback protection
    • Kensington Security Slot (Kensington Lock) support
    • Firmware signature

    Related Products

    GWN7801(P)/GWN7802(P)/GWN7803(P)

    GWN7801(P)/GWN7802(P)/GWN7803(P)

    GWN7801(P)/GWN7802(P)/GWN7803(P)

    GWN7800WEBSITEPAGEIMAGE1-ezgif.com-webp-to-jpg-converter

    • 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
    • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
    • Supports deployment in IPv6 and IPv4 networks
    • Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
    • Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform, and GWN Series Router
    • Built-in QoS allows for prioritization of network traffic
    GWN7806(P)

    GWN7806(P)

    GWN7806(P)

    GWN7806 Website Image - 8

    • 48 Gigabit Ethernet ports and 6 10Gigabit SFP+ ports
    • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
    • Supports deployment in IPv6 and IPv4 networks
    • Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
    • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
    • Embedded controller to manage switch, GWN Series Routers, GWN.Cloud and GWN Manager; Grandstream’s cloud and on-premise Wi-Fi management platform
    • Built-in QoS allows for prioritization of network traffic
    • Supports stacking for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices
