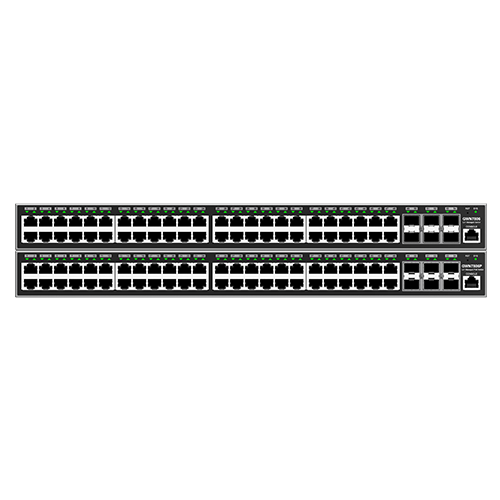

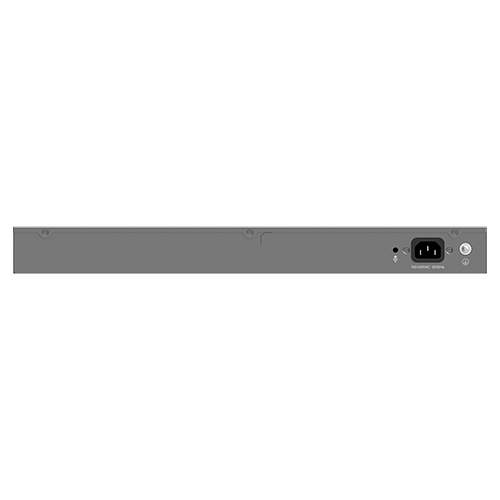

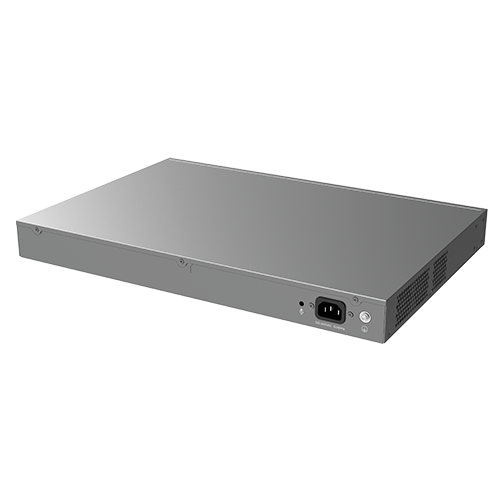

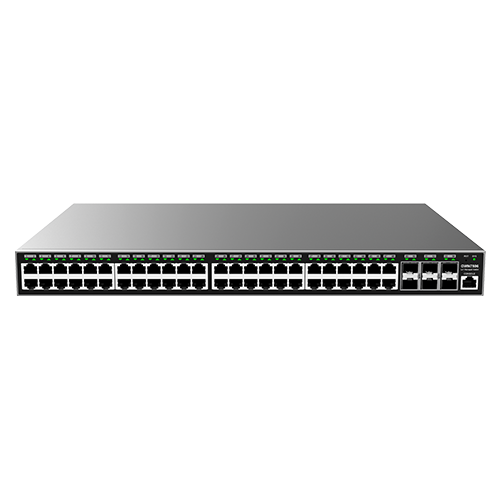

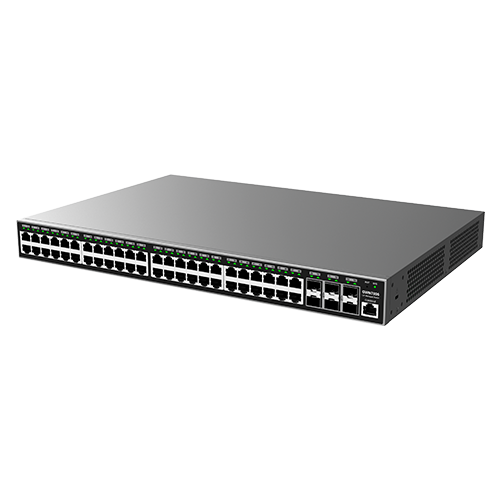

    GWN7806(P)

    Enterprise-Grade Layer 2+ Managed Network Switch
    The GWN7806(P) is a high-performance layer 2+ managed network switch with 48 ports that allows small-to-medium enterprises to build scalable, secure, and smart business networks that are fully manageable

    • 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
    • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
    • Supports deployment in IPv6 and IPv4 networks
    • Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
    • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
    • Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and  on-premise Wi-Fi management platform
    • Built-in QoS allows for prioritization of network traffic
    • Supports stacking (pending) for easy management of up to 16 switches in one interface while creating redundant backup between multiple devices
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    48-Port Layer 2+ Switch

    The GWN7806(P) is a 48-port Layer 2+ managed network switch that provides 6 SFP+ ports, while the GWN7806P also provides
    48 ports of PoE and PoE+ output.





    High-Performance Networking

    The GWN7806(P) Series provides 6 SFP+ optical ports and supports up to 216Gbps switching capacity.





    Advanced Network Control and Management

    Advanced VLAN, a state-of-the-art QoS, IGMP/MLD Snooping, and comprehensive security protection provides
    network administrators with advanced network control.





    Automatically Power Your Devices

    PoE devices can be automatically discovered and powered by the GWN7806(P) Series to provide quick and easy installation.





    Free, Centralized Cloud Management

    Deploy and manage the GWN7806(P), and all Grandstream solutions, centrally from the cloud using the
    free Grandstream Device Management System (GDMS).





    Supports Stacking

    Coming Soon - Easy management multiple switches using one interface while creating redundant backup between multiple devices.



    Free Network Management Options Module

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Powerful Processing Capabilities

    Grandstream's GWN7806(P) Layer 2+ managed network switch comes with powerful processing capabilities to ensure a high-performance backbone for any network.

    • Unicast routing via ACL for data communication routing between different network segments. Supports DHCP Server and Relay to assign IP addresses to hosts within the network.
    • GVRP for VLAN dynamic distribution, registration, and attribute propagation, to reduce the amount of manual configuration and ensure the correctness of configuration.
    • QoS, including Port Priority, Priority Mapping, Queue Scheduling, Traffic Shaping, and Rate Limit.
    • ACL is used to recognize the filtering of data packets by configuring matching rules, processing operations and time schedule, and providing flexible security access control policies.

    Product Comparison

    NameGWN7806(P)
    Specs
    Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
    Gigabit Ethernet Ports 48
    Gigabit SFP/SFP+ Ports 6 SFP+ Ports
    PoE Ports (PoE Models Only) 48
    Total PoE Output Power (PoE Models Only) 400W (30W per Port)
    Total Non-Blocking Throughput 108Gbps
    Switching Capability 216Gbps
    Forwarding Rate 160.704Mpps
    Switching
    • 32K static, dynamic and filtering MAC addresses
    • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
    • VLAN virtual interface
    • GVRP (pending)
    • 27 link aggregation
    • Spanning tree, 64 instances for STP/RSTP/MSTP Routing Static
    Security
    • User hierarchical management and password protection, HTTPS, SSH, Telnet
    • 802.1X authentication
    • AAA authentication including RADIUS, TACACS+
    • Storm control
    • Port isolation, port security, sticky MAC
    • Filtering MAC address
    • IP source guard, DoS attack prevention, ARP inspection
    • DHCP Snooping
    • Loop protection including BPDU protection, root protection(pending), and loopback protection(pending)
    • Kensington Security Slot (Kensington Lock) support
