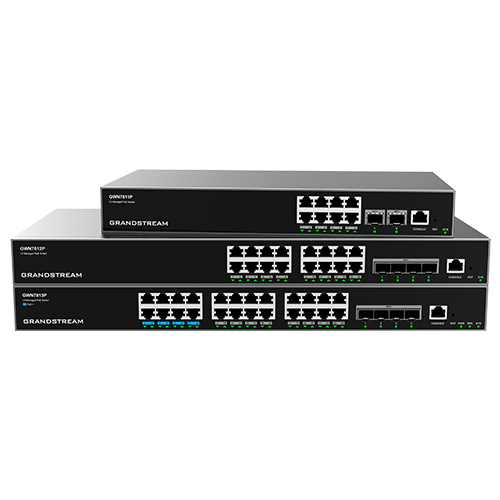

    GWN7811(P) / GWN7812P / GWN7813(P)

    Enterprise Layer 3 Managed Network Switches
    The GWN7810 series are Layer 3 managed network switches that allow enterprises to build scalable, secure, and high-performance business networks that are fully manageable.

    • 8/16/24 Gigabit Ethernet  ports and 2/4 10Gigabit SFP+ ports
    • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models, Ports 1-8 on the GWN7813P support PoE++
    • Supports deployment in IPv6 and IPv4 networks
    • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
    • Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and  on-premise network management platform
    • Built-in QoS allows for prioritization of network traffic
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    Layer 3 Network Switches

    The GWN7810 series are Layer 3 managed network switches that provide 8, 16, or 24 Gigabit Ethernet  ports and 2 or 4 SFP+ ports.





    High-Performance Networking

    The GWN7810 Series includes SFP+ optical ports on all models (up to 4 ports), PoE output on 3 models, while the GWN7813 adds PoE++ ports.
    They support up to 128Gbps switching capacity.





    Power Redundancy

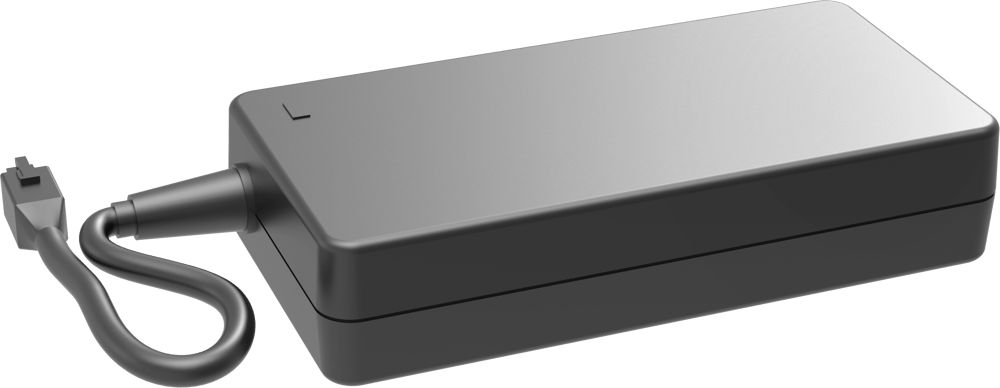

    A dual power supply design allows the GWN7813(P) to offer redundancy and ensure uninterrupted operation in case of isolated power failure scenarios.





    Free, Centralized Cloud Management

    Deploy and manage the GWN7810 Series, and all Grandstream solutions, centrally from the cloud using the
    free Grandstream Device Management System (GDMS).



    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    High Performance with Maximum Network Capacity and Control

    Grandstream's GWN7810 Series network switches are ideal for enterprises and medium-to-large businesses that require high-performance networks with maximum network capacity and control.

    • Supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks
    • The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform.
    • The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses

    Product Comparison

    NameGWN7811(P)
    Specs
    Network Protocols IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
    Gigabit Ethernet Ports 8
    SFP+ 10Gigabit Ports 2
    PoE Ports (PoE Models Only) 8
    Total PoE Output (PoE Models Only) 120W (30W per Port)
    Total Non-Blocking Throughput 28Gbps
    Switching Capability 56Gbps
    Forwarding Rate 41.644Mpps
    Switching, Routing, and Multicast
    • 16K static, dynamic and filtering MAC addresses
    • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
    • VLAN virtual interface
    • GVRP (pending)
    • Spanning tree, 32 instances for STP/RSTP/MSTP
    • Static routing
    • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
    • Policy routing (pending)
    • IGMP Snooping
    • MLD Snooping
    • MVR (pending)
    Security
    • User hierarchical management and password protection, HTTPS, SSH, Telnet
    • 802.1X authentication
    • AAA authentication including RADIUS, TACACS+
    • Storm control
    • Port isolation, port security, sticky MAC
    • Filtering MAC address
    • IP source guard, DoS attack prevention, ARP inspection
    • DHCP Snooping
    • Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)
    • Kensington Security Slot (Kensington Lock) support

    Related Products

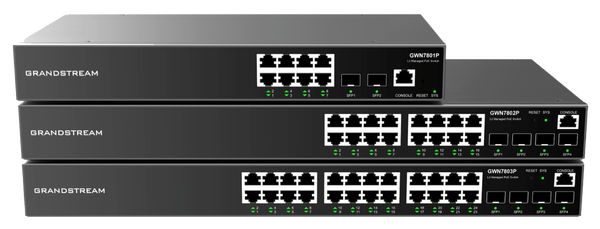

    GWN7801(P)/GWN7802(P)/GWN7803(P)
