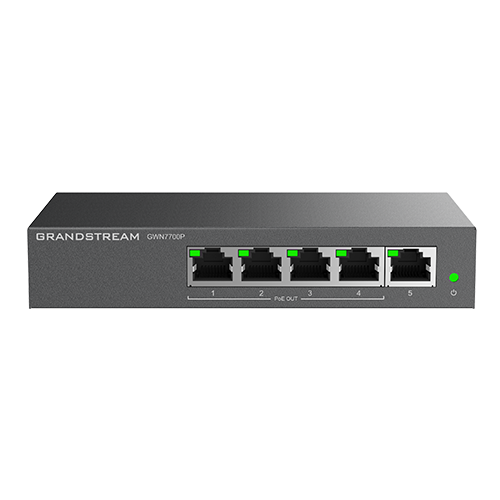

GWN7700(P&PA) Series
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add highspeed
Gigabit connectivity to home offices and small-to-medium sized businesses.
- 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
GWN7701PA/GWN7702P only) - Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
- GWN7700(P&PA) Series Datasheet - English
- GWN7700(P&PA) Series Datasheet - French
- GWN7700(P&PA) Series Datasheet - German
- GWN7700(P&PA) Series Datasheet - Italian
- GWN7700(P&PA) Series Datasheet - Polish
- GWN7700(P&PA) Series Datasheet - Portuguese
- GWN7700(P&PA) Series Datasheet - Russian
- GWN7700(P&PA) Series Datasheet - Spanish
- DoC - GWN7700
- DoC - GWN7700P
- DoC - GWN7701
- DoC - GWN7701P
- DoC - GWN7701PA
- DoC - GWN7702
- DoC - GWN7702P
- DoC - GWN7703
- DoC - GWN7706
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity
to home offices and small-to-medium sized businesses.

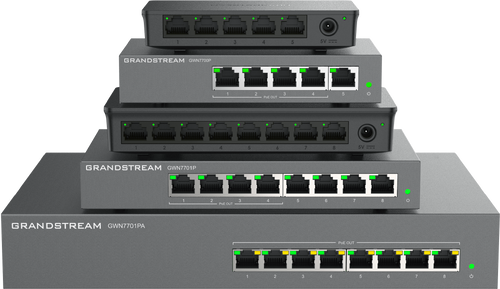

The Ideal Model for Every Need
Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Free Network Management Options
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.
GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.
Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.
Product Highlights
Powerful Unmanaged Processing Capabilities
The GWN7700(P&PA) series of unmanaged network switches are designed to be plug-and-play devices that are cost-effective and easy to deploy.
- The GWN7700(P&PA) Series supports up to 5, 8, 16, or 24 Gigabit ports depending on the model, supporting up to 100Gbps switching capacity and 10KB Jumbo Frame capabilities
• All GWN7700 devices support Auto-Negotiation and Auto MDI/MDIX, which are two features that help ensure the network and all devices within it are operating at high transmission rates
• During times of heavy network activity, a switch's port buffers can receive too much traffic and fill up faster than the switch can send the information. GWN7700 switches have IEEE 802.3x Flow Control feature, which tells the transmitting device to wait so the information in the buffer can be sent
Creating IT Infrastructures with Grandstream's GWN Series
Grandstream's networking portfolio is widely adopted around the world to support deployments of workstations, IP endpoints, Wi-Fi access points, and other devices. Whether you are new to Grandstream's GWN networking portfolio or regularly install it, this interactive infographic aims to provide you with valuable insights on utilizing GWN Series switches in your networks.
Product Comparison
NameGWN7700(P) |
---|
Specs |
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
Gigabit Ports 5 |
PoE Ports (PoE Models) 4 |
Port Features
|
PoE Configuration (PoE Models)
|
Switching Capability 10Gbps |
Jumbo Frame 9KB |
Enclosure Plastic GWN7700, Metal GWN7700P |
