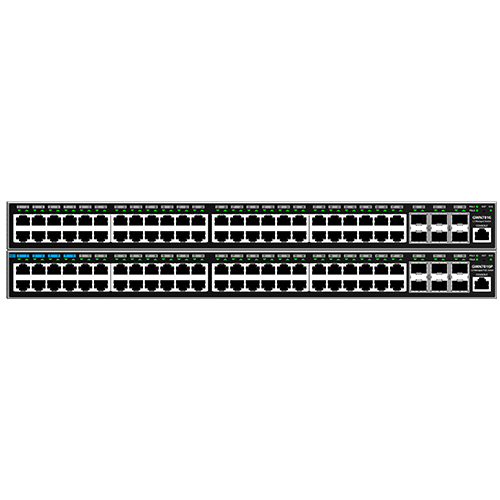

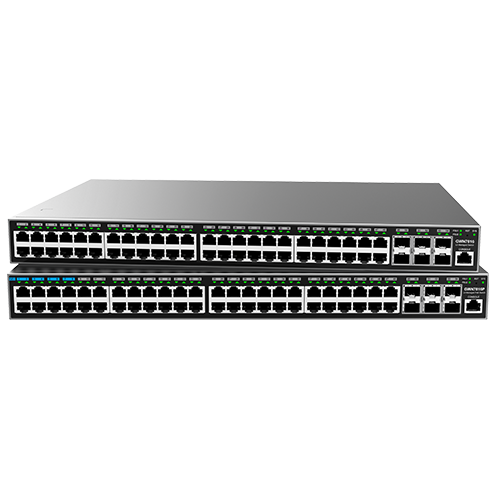

    GWN7816(P)

    Enterprise-Grade Layer 3 Managed Network Switch
    The GWN7816(P) are 48-port Layer 3 managed network switches that allow enterprises to build scalable, secure, and high-performance business networks that are fully manageable.

    • 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
    • Smart power control to support dynamic PoE/PoE+, PoE++ (GWN7816P) power allocation per port for the PoE models
    • Supports deployment in IPv6 and IPv4 networks
    • Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
    • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
    • Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and  on-premise Wi-Fi management platform
    • Built-in QoS allows for prioritization of network traffic
    • Supports stacking (pending) for easy management on one interface while creating redundant backup between  multiple devices
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    48-Port Layer 3 Switch

    The GWN7816(P) is a 48-port layer 3 managed network switch that provides 6 SFP+
    ports, while the GWN7816P also provides 48 ports of PoE, PoE+, and PoE++ output.





    High-Performance Networking

    The GWN7816(P) includes 6 SFP+ optical ports and supports up to 216Gbps switching capacity.





    Automatically Power Your Devices

    PoE devices can be automatically discovered and powered by the 48-port GWN7816 to provide quick and easy installation.





    Free, Centralized Cloud Management

    Deploy and manage the GWN7816(P), and all Grandstream solutions, centrally from the cloud using the
    free Grandstream Device Management System (GDMS).





    Supports Stacking

    Coming Soon - Easy management multiple switches using one interface while creating redundant backup between multiple devices.



    Free Network Management Options Module

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    High performance with Maximum Network Capacity and Control

    Grandstream's GWN7816(P) Layer 3 managed network switches are ideal for enterprises and medium-to-large businesses that require high-performance networks with maximum network
    capacity and control.

    • Supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks
    • The GWN7816P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.
    • The GWN7816(P) can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform.

    • With an advanced set of features, comprehensive security protection, and flexible management options, the GWN7816(P) is ideal for enterprises and medium-to-large businesses that require high-performance networks with maximum capacity and control.

    Product Comparison

    NameGWN7816(P)
    Specs
    Network Protocols IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
    Gigabit Ethernet Ports 48
    SFP+ 10Gigabit Ports 6
    PoE Ports (PoE Models Only) 48
    Total PoE Output (PoE Models Only) 740 (60W on Ports 1-8 with PoE++, 30W on all Remaining Ports)
    Total Non-Blocking Throughput 108Gbps
    Switching Capability 216Gbps
    Forwarding Rate 160.704Mpps
    Switching, Routing, and Multicast
    • Supports stacking for easy management of multiple devices on one interface while creating redundant backup between devices
    • 16K static, dynamic, and filtering MAC addresses
    • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
    • VLAN virtual interface
    • GVRP (pending)
    • Spanning tree, 64 instances for STP/RSTP/MSTP
    • Static routing
    • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
    • Policy routing (pending)
    • IGMP Snooping
    • MLD Snooping
    • MVR (pending)
    Security
    • User hierarchical management and password protection, HTTPS, SSH, Telnet
    • 802.1X authentication
    • AAA authentication including RADIUS, TACACS+
    • Storm control
    • Port isolation, port security, sticky MAC
    • Filtering MAC address
    • IP source guard, DoS attack prevention, ARP inspection
    • DHCP Snooping
    • Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)
    • Kensington Security Slot (Kensington Lock) support
