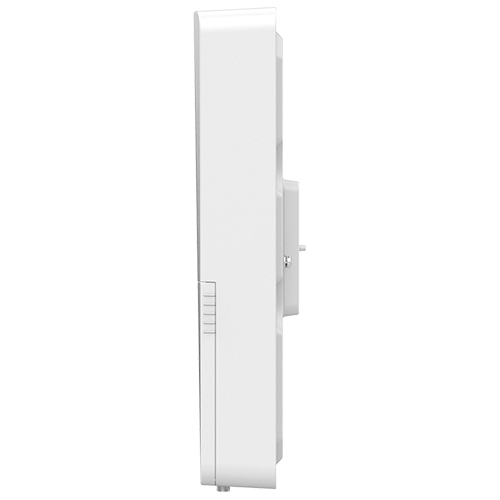

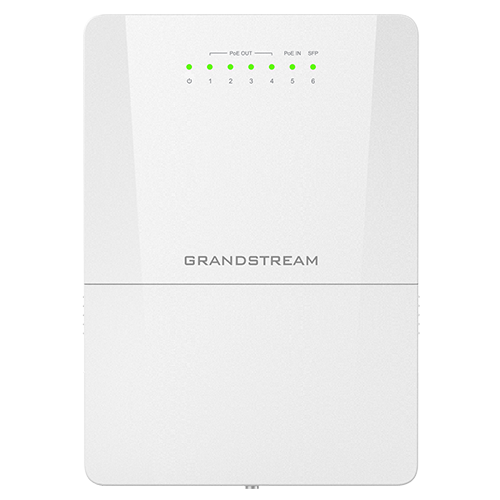

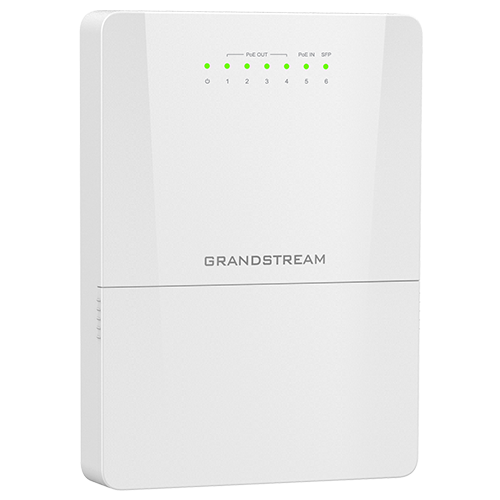

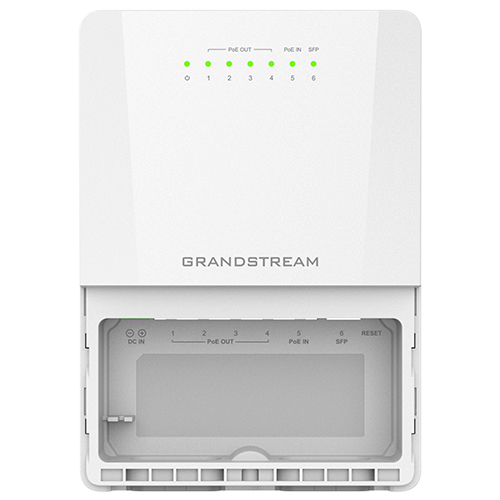

    GWN7710R

    6-Port Outdoor L2 Lite Managed Switch
    The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.

    • 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
    • IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
    • SFP Fiber Port for long-distance transmission
    • DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
    • IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
    • Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
    • STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
    • Built-in QoS allows for prioritization of network traffic
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Build Scalable, Secure, and Smart Networks

    The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.

    • To ensure a stable and powerful network performance, the GWN7710R supports flexible and complex traffic segmentation with global or per port VLANs, provides DSCP/802.1p QoS priority management modes, bandwidth control, and storm control.
    • This weatherproof managed newtork switch provides 4 Gigabit ports that provide passive PoE++ output, 1 Gigabit port with PoE++ input, and one 2.5G SFP port
    • The GWN7710R can be managed in a variety of ways, including locally through the web user interface, through the cloud with GDMS, and on-premises with GWN Manager.

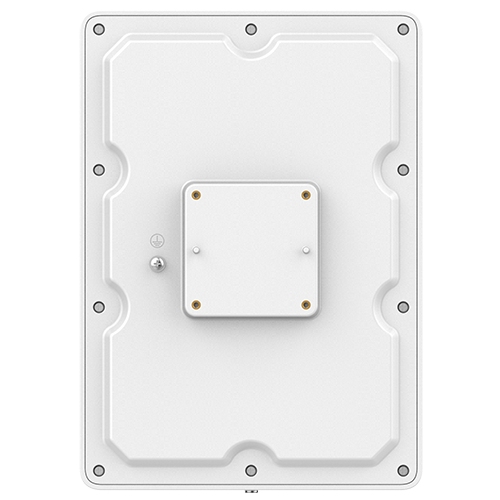

    • It supports pole, DIN-rail, and wall-mounted installation to support a variety of outdoor and indoor applications.

    Product Comparison

    NameGWN7710R
    Specs
    STANDARDS AND PROTOCOLS IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
    GIGABIT PORTS 6
    POE PORTS (POE MODELS) 5

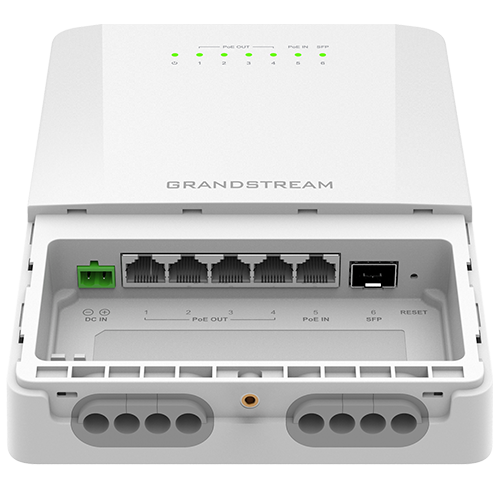

    PORT FEATURES 5x Gigabit Ethernet Ports 1x 1G/2.5G SFP Port
    PoE CONFIGURATION (PoE MODELS) Standard PoE output Mode: Port 1 - Port 4 up to 30W on each PoE port; Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W; Port 2 - Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W; Note: 4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-); 2-Pair: Powered on pins: 4,5(+),7,8(-)
    LED INDICATORS Per device System on : Green; Per Ethernet port Link/Activity: Green; Per Passive PoE out port 48VDC: Orange; Per Passive PoE out port 24VDC: Blue; Support LED indicator switch
    SWITCHING CAPACITY 15Gbps
    JUMBO FRAME 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K
    ENCLOSURE Metal

    Related Products

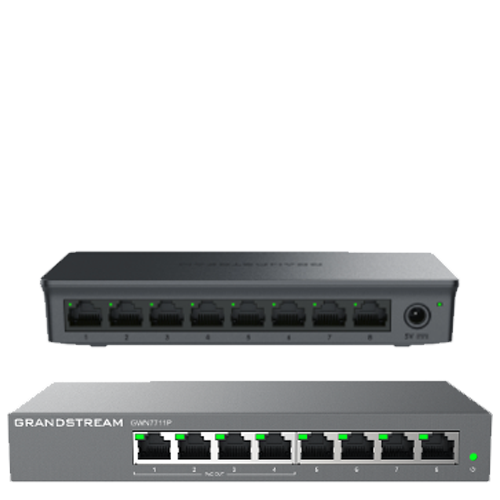

    GWN7711(P) Series
