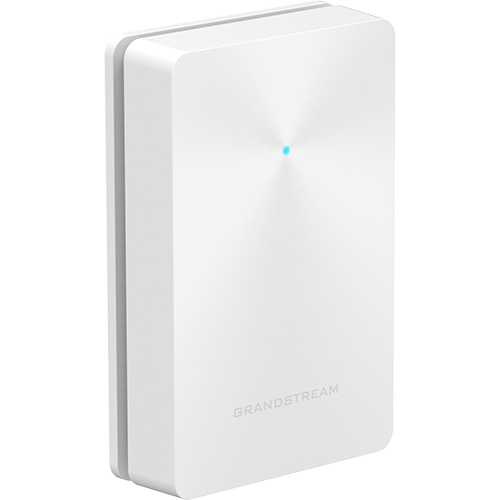

    GWN7624

    GWN In-Wall Wi-Fi Access Point
    The GWN7624 is an in-wall Wi-Fi access point that includes three Gigabit network ports, 2 which provide PoE, to provide internet connections and power for devices such as IP phones, computers, TVs and more.

    • 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
    • Supports up to 200 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self-power adaptation upon auto detection of PoE or PoE+
    • Embedded controller can manage up to 30 local GWN series APs;
    • GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    www.grandstream.comhubfsgwn cloud combinationn graphic

    GWN.Cloud

    GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

    GWN.Cloud
    gwnmanager_thumbnail

    GWN Manager

    GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





    Product Highlights

    Electric Avenue Case Study

    Electric Avenue Music Festival is regarded as New Zealand’s biggest and boldest music festival featuring 50 artists, 5 stages, and 12 hours of music and art performances. This festival happens in one of New Zealand’s biggest cities Christchurch at the iconic Hagley Park which is situated in the heart of the city. The festival took place on Feb 25th, 2023, with over 30,000 people in attendance to witness this spectacle of music and arts.

    The GWN7624 catered to key management personnel who were situated in an indoor space with dense walls and played a pivotal role in coordinating the event.

    Read Case Study

    Affordable and Powerful

    The GWN7624 is a competitive Wi-Fi device that was designed for a low price point with high performance, perfect for more cost-sensitive and mid-volume Wi-Fi deployments like cafes, lecture halls, and offices.

    • Retail Price: Competitive models of similar capabilities priced well above the GWN7624
    • Market Leading Wi-Fi Standards: IEEE 802.11a/b/g/n/ ac standards, this supports past, present, and future Wi-Fi devices
    • Greater Performance for Less Money: 200+ concurrent devices, 2.02Gbps aggregate dual-band throughput
    • PSE Network Ports: Three network ports with 2 PSE providing ports make the GWN7624 an ideal deployment device for hotel rooms, executive offices, and similar use cases

    GWN Config & Deployment Webinar

    Watch this pre-recorded webinar presented by the Grandstream support team which covers the initial training and configuration for GWN series access points. It will provide some basic recommendations on how to plan and optimize your wireless network.

    Interested in GWN certification trainings? Visit Grandstream Academy to register for self-guided Networking training today!

    Networking Solution Self-Training (GCS)

    Product Comparison

    NameGWN7624
    Specs
    Client Devices 200+
    Range Up to 175 Meters
    Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port
    PoE/PoE+ Support 802.3az; PoE 802.3af/ 802.3at; PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W
    2.4G Throughput 300Mbps (2x2:2 MIMO)
    5G Throughput 1733Mbps (4x4:4 MU-MIMO)
    6G THROUGHPUT -
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
    SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
    Antennas Two 5G & two double frequency internal antennas
    Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
    Dimensions 135x86x38.5mm

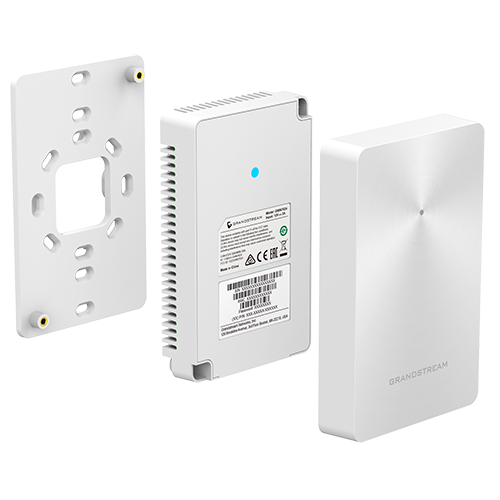

    Mounting Wall Mountable
