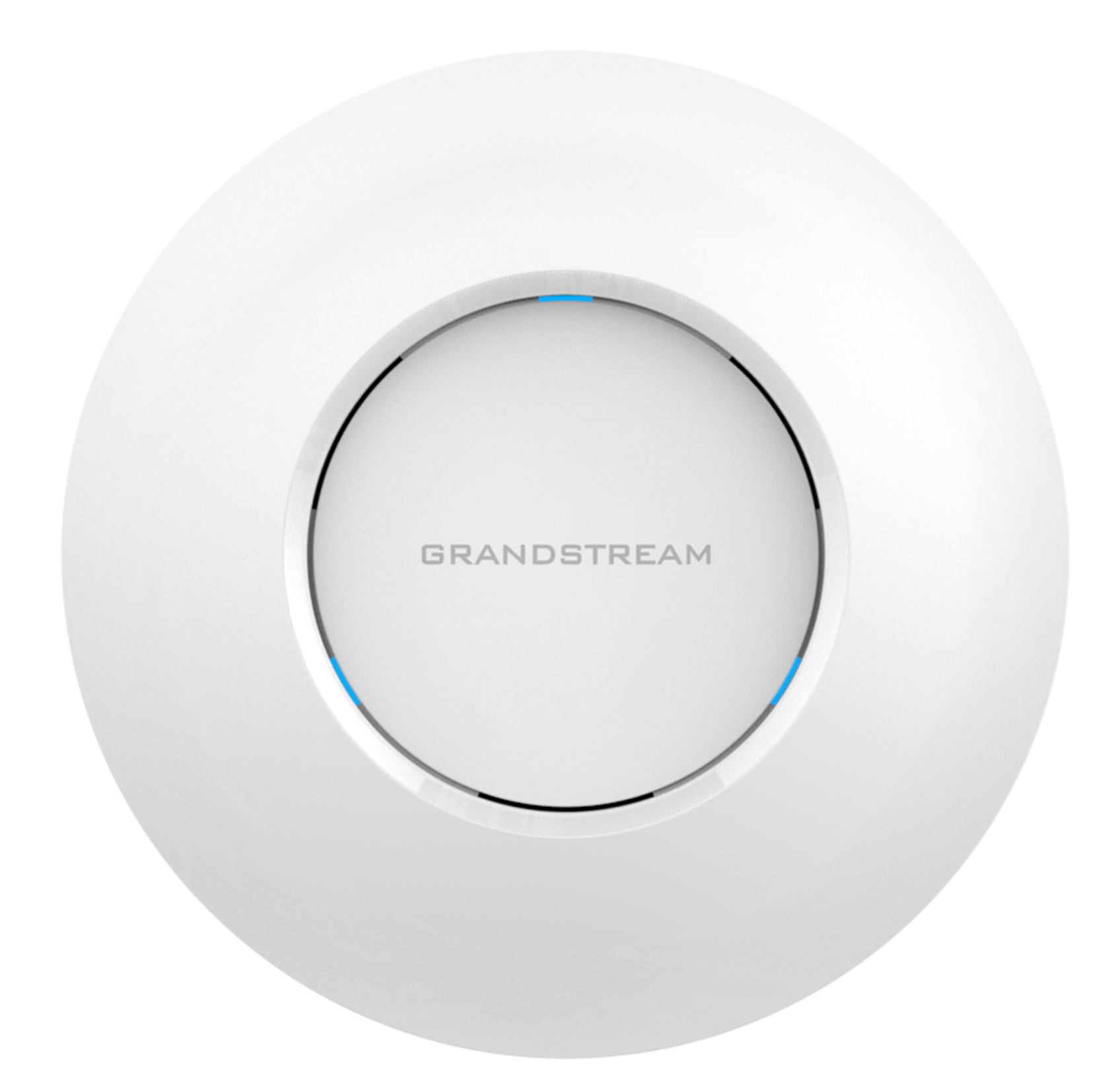

    GWN7625

    GWN 4x4:4 and 2x2:2 Indoor Wi-Fi 5 Access Point
    The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band.

    • 2.03 Gbps wireless throughput and 2 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
    • Supports up to 200 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self power adaptation upon auto detection of PoE or PoE+
    • Embedded controller can manage up to 30 local GWN series APs;
    • GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Advanced Features

    The GWN7625 comes equipped with the advanced performance-boosting features of our GWN access points.

    • Beamforming Technology: AP detects wireless clients and focuses signals on them
    • Multiple Customized SSIDs: Up to 16 SSID channels with customized client configurations, captive portal, and bandwidth limits
    • QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment
    • Captive Portals: Wi-Fi clients attempting to access an SSID can be led to a customized landing with login features such as voucher authentication, password, social login, and more

    GWN7625 Sales Kit

    The GWN7625 sales kit is an ideal resource for taking a deeper look into the product. Learn about its competitive capabilities, use cases, deployment scenarios, and Grandstream integrations all from one document. This helpful resource can also be used to educate your potential clients on the GWN7625 as well. Either utilize it during meetings and potential bids or provide it to them directly.

    Click below to access a PDF copy of the GWN7625 Sales Kit.

    Download the Sales Kit



    GWN Config & Deployment Webinar

    Watch this pre-recorded webinar presented by the Grandstream support team which covers the initial training and configuration for GWN series access points. It will provide some basic recommendations on how to plan and optimize your wireless network.

    Interested in GWN certification trainings? Visit Grandstream Academy to register for self-guided Networking training today!

    Networking Solution Self-Training (GCS)

    Product Comparison

    NameGWN7625
    Specs
    Client Devices 200+
    2.4G Throughput 300Mbps (2x2:2 MIMO)
    5G Throughput 1733Mbps (4x4:4 MU-MIMO)
    6G THROUGHPUT N/A
    Range Up to 165 Meters
    Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
    PoE/PoE+ Supports PoE 802.3af/802.3at; Max consumption: 13W
    Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
    SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
    Antennas 6 single frequency internal antennas
    Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
    Dimensions 205.3x205.3x45.9mm
    Mounting Indoor wall mount or ceiling mount, kits included
