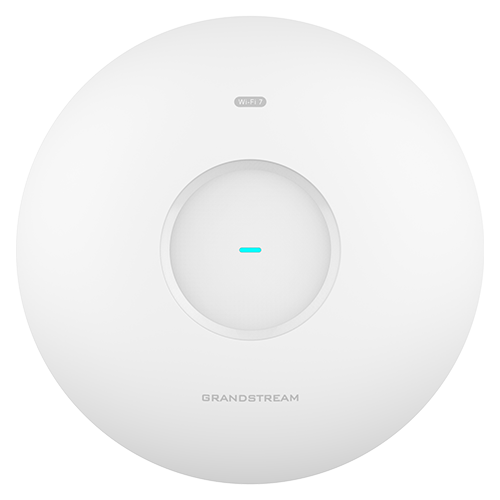

GWN7672

Tri-Band Wi-Fi 7 Access Point
The GWN7672 is a powerful enterprise-grade Wi-Fi 7 access point that provides wireless speeds up to 11Gbps (BE11000), ideal for demanding environments with medium to high user density.

  • 11Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
  • Integrated Wi-Fi 7 & 2x2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
  • Up to 175-meter coverage range
  • Supports 384 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self-power adaptation upon auto-detection of PoE+
  • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Free Network Management Options

gdms-networking-thumbnail

GDMS Networking

GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GDMS Networking
gwn-manager-thumbnail-2

GWN Manager

GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

GWN Manager
embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






Product Highlights


GWN7672 Key Deployment Scenarios

The GWN7672 can be deployed in various scenarios including:
  • Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
  • Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
  • Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

Wi-Fi 7

Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

Product Comparison


NameGWN7672
Specs
Client Devices 384
2.4G Throughput 688Mbps (2x2:2 MIMO)
5G Throughput 4320Mbps (2x2:2 MIMO)
6G THROUGHPUT 5765Mbps (2x2:2 MIMO)
Range Up to 175 Meters
Network Interfaces 2x 5G Ethernet WAN/LAN
PoE/PoE+ Supports PoE 802at; Maximum Power Consumption: 25W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
SSIDs 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz)
Antennas 7 single frequency antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signa tures, unique security certificate and random default password per device
Dimensions 220mmx220mmx54mm
Mounting Indoor wall mount or ceiling mount, kits included
