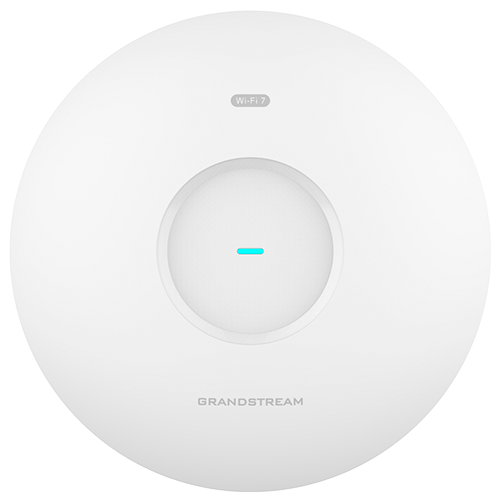

    GWN7670

    Dual-Band Wi-Fi 7 Access Point
    The GWN7670 is a new generation enterprise-grade 802.11be Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

    • 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
    • Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
    • Up to 175-meter coverage range
    • Supports 256 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self-power adaptation upon auto-detection of PoE+
    • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    State-of-the-Art Wi-Fi 7 Connectivity

    The GWN7670 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.



    Ideal for Environments with Medium User Density

    The GWN7670 provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.



    Twice as Fast as Wi-Fi 6

    Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.



    Easy and Free Management

    Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    GWN7670 Key Deployment Scenarios

    The GWN7670 can be deployed in various scenarios including:
    • Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
    • Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
    • Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

    Product Comparison

    NameGWN7670
    Specs
    Client Devices Up to 256
    2.4G Throughput 688Mbps (2x2:2 MIMO)
    5G Throughput 2882Mbps (2x2:2 MIMO)
    6G THROUGHPUT N/A
    Range Up to 175 Meters
    Network Interfaces 2x 2.5G Ethernet WAN/LAN
    PoE/PoE+ Supports PoE 802.3af/802.3at; Max Consumption: 14.5W
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
    SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
    Antennas 5 single frequency antennas
    Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
    Dimensions 185mmx185mmx44.5mm
    Mounting Indoor wall mount or ceiling mount, kits included
