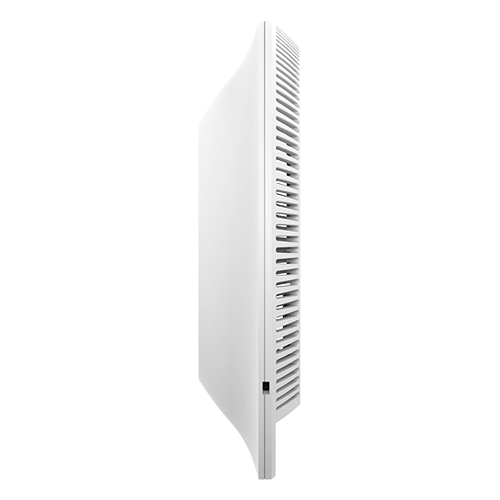

    GWN7662

    GWN 2x2:2 & 4x4:4 Wi-Fi 6 Indoor Access Point
    The GWN7662 is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next generation Wi-Fi networks for high-density environments.

    • 5.38 Gbps wireless throughput and 3.5 Gigabit wireline ports
    • 5GHz 4×4:4 MU-MIMO with DL/UL OFDMA technology
    • Up to 175-meter coverage range
    • Supports 256 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self power adaptation upon auto detection of PoE or PoE+
    • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    www.grandstream.comhubfsgwn cloud combinationn graphic

    GWN.Cloud

    GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

    GWN.Cloud
    gwnmanager_thumbnail

    GWN Manager

    GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





    Product Highlights

    Wi-Fi 6

    Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

    Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

    Wi-Fi Communications Guide

    As business requires more mobility and flexibility, organizations are relying on Wi-Fi networks not only for data and internet but also for their communications and collaboration platform. With over 100 products in our offering, including a full portfolio of Wi-Fi networking solutions as well as a deep portfolio of voice and video solutions, Grandstream provides a one-stop shop for all of your Wi-Fi and unified communication needs.

    Click below to read our Wi-Fi Communications Solutions Guide and learn about:

    • Why your Wi-Fi networks should also support voice & video solutions
    • How to optimize a Wi-Fi solution for voice and video communication
    • Using a Wi-Fi voice/video solution to control facility access

    Read the Wi-Fi Communications Guide

    Market-Leading Features

    The GWN7664 comes equipped with advanced performance-boosting features:
    • UL/DL OFDMA: Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands
    • Beamforming Technology: AP detects wireless clients and focuses signals towards them
    • Multiple Customized SSIDs: Up to 32 SSID channels with customized client configurations, captive portal, and bandwidth limits
    • QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment

    Product Comparison

    NameGWN7662
    Specs
    Client Devices Up to 256
    Range Up to 175 Meters
    Network Interfaces 1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 10/100/1000/2500 Base-T Ethernet Port
    PoE/PoE+ Supports 802.3az; PoE 802.3af/ 802.3at; Maximum Power Consumption: 16W
    2.4G Throughput 573.5Mbps (2x2:2 MIMO)
    5G Throughput 4804Mbps (4x4:4 MU-MIMO)
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
    SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
    Antennas 6 single frequency internal antennas
    Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures
    Dimensions 205.3mmx205.3mmx45.9mm
    Mounting Indoor wall mount or ceiling mount

    Related Products

    GWN7660

    GWN7660

    GWN7660

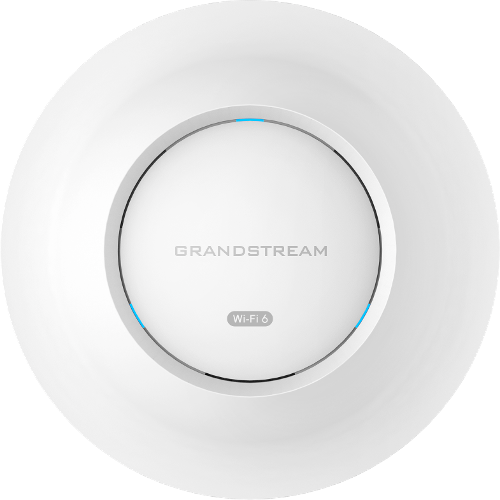

    GWN7664_front_web

    • 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
    • Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
    • Up to 175-meter coverage range
    • Supports 256 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self-power adaptation upon auto detection of PoE or PoE+
    • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

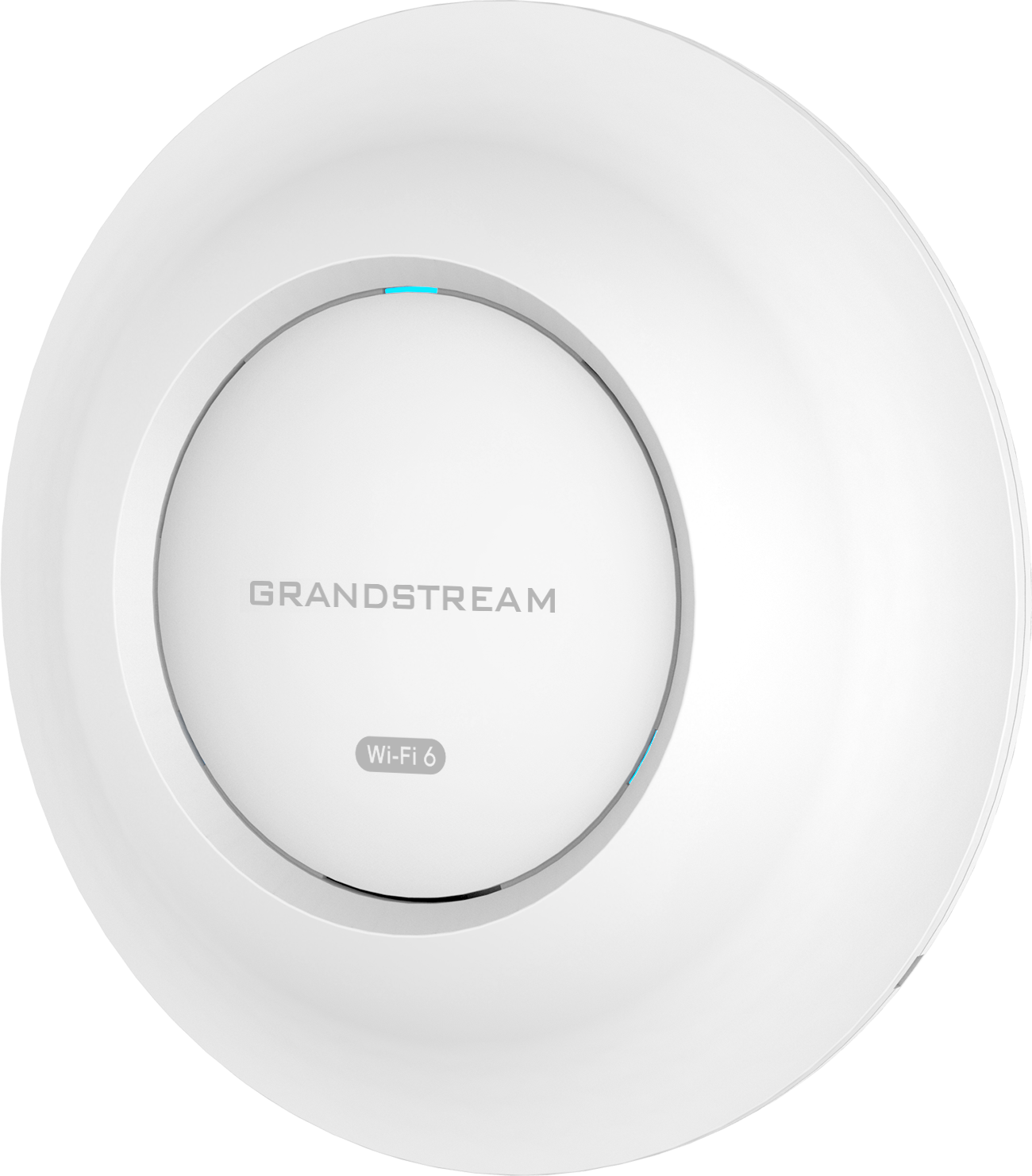

    GWN7664

    GWN7664

    GWN7664

    GWN7664_right

    • 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
    • Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
    • Up to 175-meter coverage range
    • Supports 750+ concurrent Wi-Fi client devices
    • Includes 1x 1G Port and 1x 2.5G Port
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self power adaptation upon auto detection of PoE or PoE+
    • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

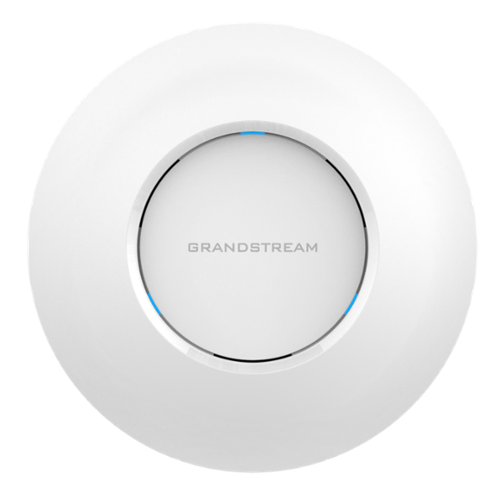

    GWN7625
