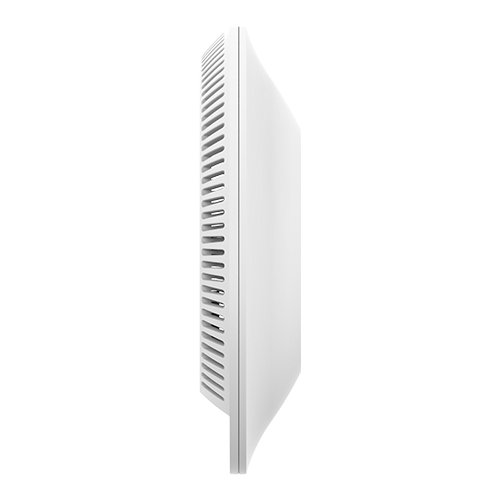

GWN7660E

GWN Enterprise-Grade Wi-Fi 6 Access Point
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band

  • 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
  •  Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
  • Up to 175-meter coverage range
  • Supports 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self-power adaptation upon auto-detection of PoE or PoE+
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

Free Network Management Options

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN.Cloud
gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

GWN Manager
embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights


Wi-Fi 6

Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

Market-Leading Features

The GWN7660E comes equipped with advanced performance-boosting features:
  • UL/DL OFDMA: Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands
  • Beamforming Technology: AP detects wireless clients and focuses signals towards them
  • Multiple Customized SSIDs: Up to 32 SSID channels with customized client configurations, captive portal, and bandwidth limits
  • QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment

Product Comparison


NameGWN7660E
Specs
Client Devices Up to 256
2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO)
5G Throughput 2.4Gbps (3x3:2 MU-MIMO)
6G THROUGHPUT N/A
Range Up to 175 Meters
Network Interfaces 1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 10/100/2500 Base-T Ethernet Port
PoE/PoE+ Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 12.95W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
SSIDs 32 SSIDs total, 16 per radio
Antennas 5 individual internal antennas
Wi-Fi and Security Systems WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions 180.4mm x 180.4mm x 40.8mm
Mounting Indoor wall mount or ceiling mount
