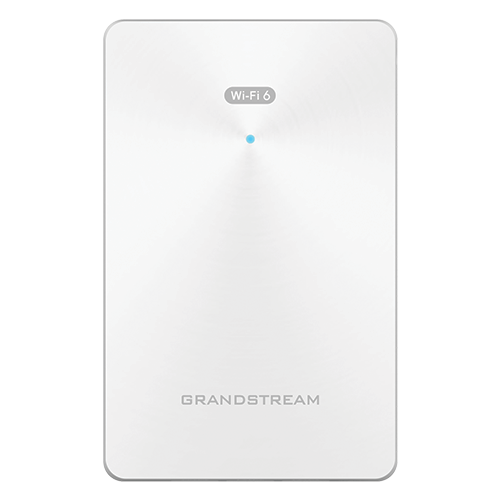

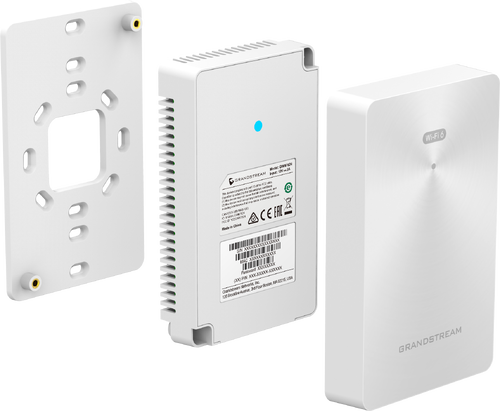

GWN7661

GWN Wi-Fi 6 In-Wall Access Point
The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit
network port with PoE/PoE+.

  • 1.77 Gbps wireless throughput and 4x Gigabit wireline ports
  • Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology
  • Supports up to 500+ concurrent Wi-Fi client devices
  • Self power adaptation upon auto detection of PoE or PoE+
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Free Network Management Options

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GDMS Networking
gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

GWN Manager
embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights


Wi-Fi 6

Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

The Benefits of Wi-Fi 6

Wi-Fi 6, also known as 802.11ax, was released in 2019. It has only now begun to see mainstream adoption as the go-to Wi-Fi standard for Wi-Fi manufacturers and businesses alike. Although it may be more expensive, Wi-Fi 6 access points deliver key advantages over Wi-Fi 5. 801.11ax performs up to 4x better in denser environments than its 802.11ac (Wi-Fi 5) counterpart. Wi-Fi 6 is also designed to better manage multiple types of Wi-Fi devices that are simultaneously connecting to an access point.

In this blog post, we cover the advantages that Wi-Fi 6 provides and how they benefit organizations.

Read the Blog Post



Market-Leading Features

The GWN7664 comes equipped with advanced performance-boosting features:
  • UL/DL OFDMA: Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands
  • Beamforming Technology: AP detects wireless clients and focuses signals towards them
  • Multiple Customized SSIDs: Up to 32 SSID channels with customized client configurations, captive portal, and bandwidth limits
  • QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment

Product Comparison


NameGWN7661
Specs
Client Devices 500+
2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO)
5G Throughput 1201Mbps (2x2:2 MU-MIMO)
6G THROUGHPUT N/A
Range Up to 100 Meters

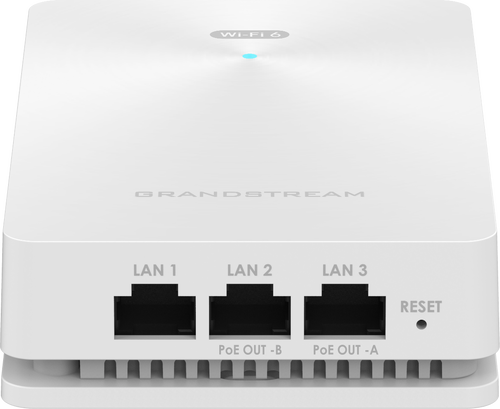

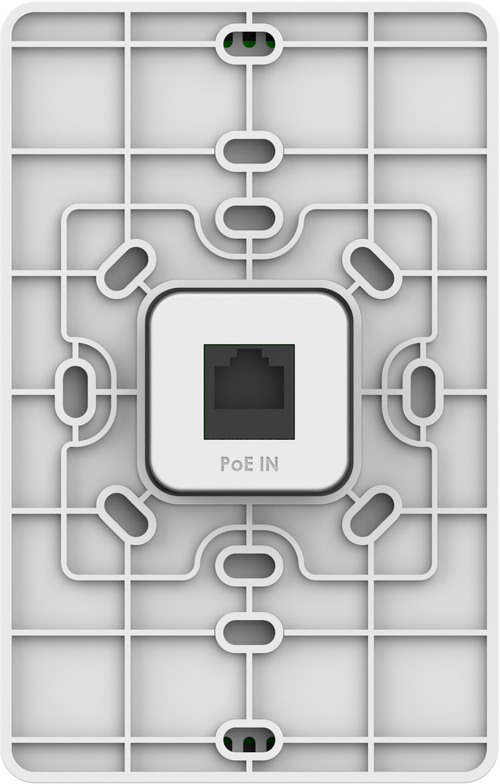

Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+, 2x 10/100/1000M Ethernet ports with PSE, 1x 10/100/1000M Ethernet port
PoE/PoE+ Supports 802.3az, PoE 802.3af/ 802.3at; PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Antennas 4 single band internal antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions 135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g
Mounting Wall Mountable
