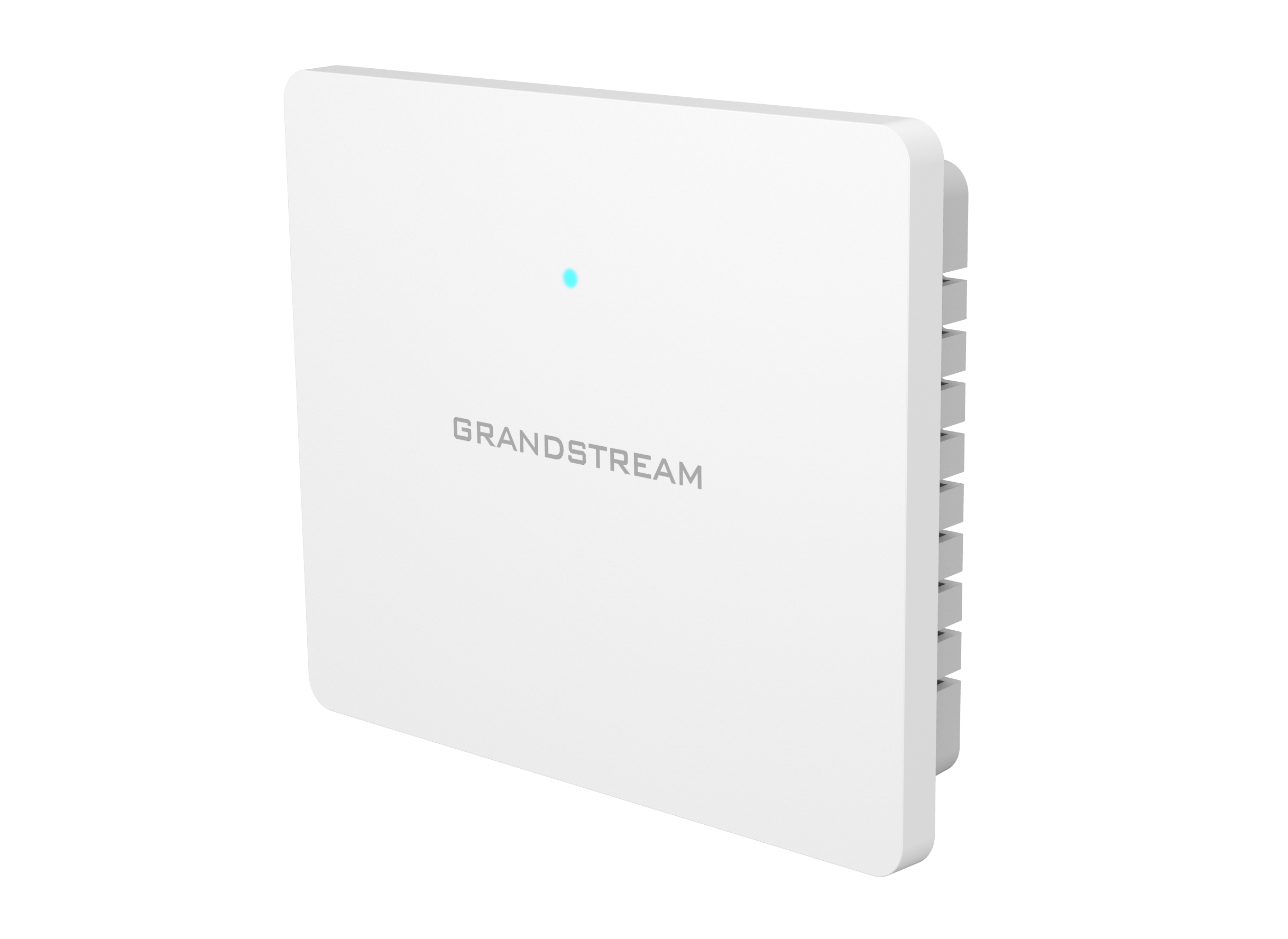

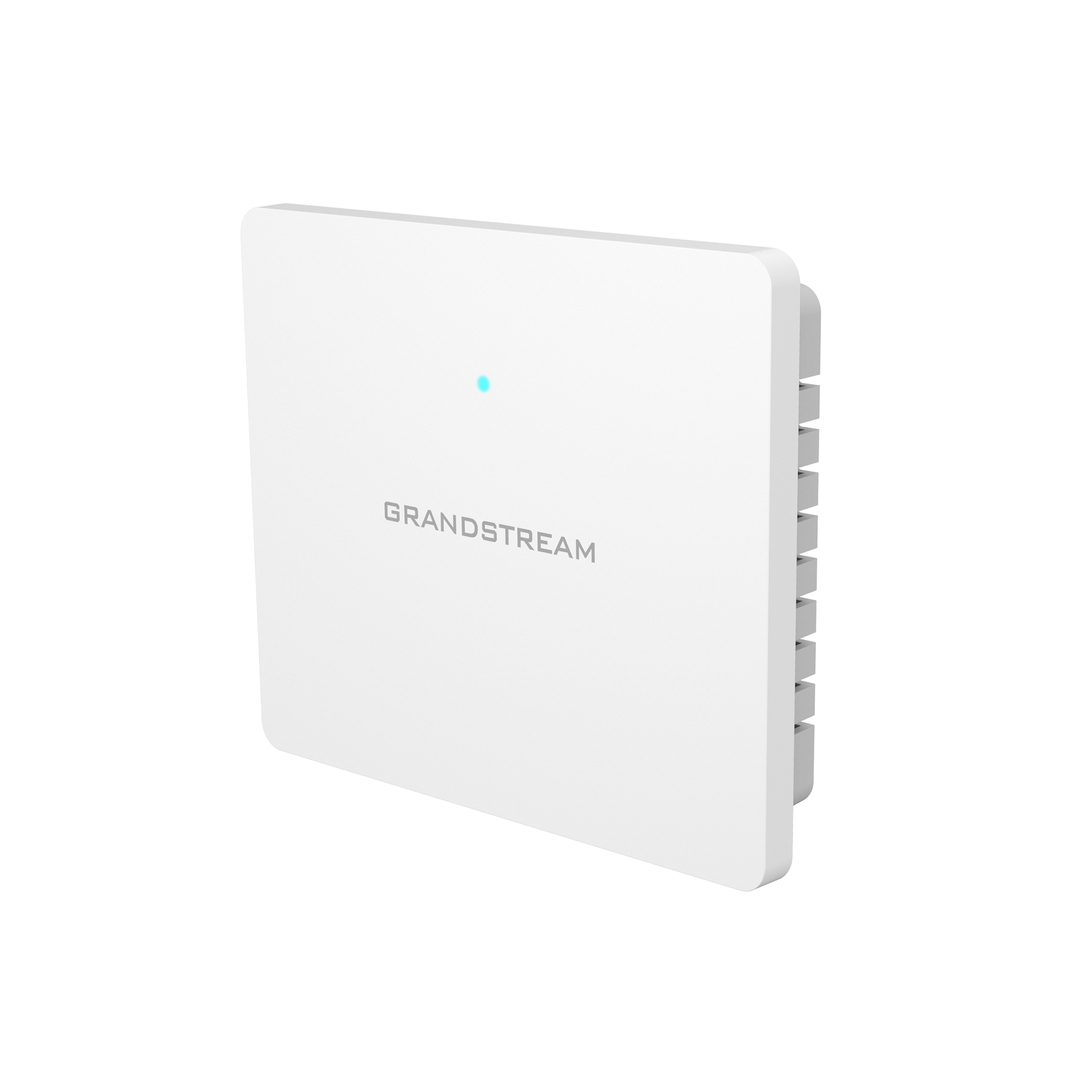

GWN7602

GWN Compact 2x2:2 Wi-Fi Access Point
The GWN7602 is a compact Wi-Fi access point designed for small businesses, homes, offices, hotels and more. It provides three 100Mb ports to provide IP phones, IPTV, computers and similar devices with ethernet while also providing an uplink Gigabit network port with PoE/PoE+.

  • 1.17Gbps aggregate wireless throughput, 1x Gigabit and 3x 100Mbit wireline speed
  • Up to 100 meters coverage range
  • Self power adaptation upon auto detection of PoE/PoE+ and PSE
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Support up to 80 Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures,

Free Network Management Options

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN.Cloud
gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

GWN Manager
embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights


Antigua Village Resort Wi-Fi and UC Solution

Antigua Village Resort (AVR) is a condominium beach resort located on the Caribbean Island of Antigua. Due to the outdated infrastructure of ADSL internet service and voice services, there was a major need to revamp the resort’s property-wide network infrastructure to provide reliable data and voice services for guest rooms and admin offices.

The GWN7602 was deployed, among other devices, throughout the village resort and successfully provided next-generation high-speed Wi-Fi connectivity to guests within their rooms. To learn more about the benefits that the GWN7602 provided to Antigua Village Resort, click below to read the case study.

Read the Case Study

Self-Guided Networking Solution Training

Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

Networking Solution Self-Training (GCS)

Product Comparison


NameGWN7602
Specs
Client Devices Up to 80
Range Up to 100 Meters
Network Interfaces 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100M Ethernet port with PSE 1x 10/100M Ethernet port
PoE/PoE+ Supports 802.3 az; PoE 802.3af/ 802.3at PSE max output per port: 6W; Max Consumption: 20W
2.4G Throughput 300Mbps (2x2:2 MIMO)
5G Throughput 867Mbps (2x2:2 MIMO)
6G THROUGHPUT -
Wi-Fi Standards IEEE 802.11a/b/g/n/ac
SSIDs 8 SSIDs total, 4 per radio (2.4Ghz and 5Ghz)
Antennas 2 dual band internal antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures
Dimensions 135x115x30mm
Mounting Wall Mountable
