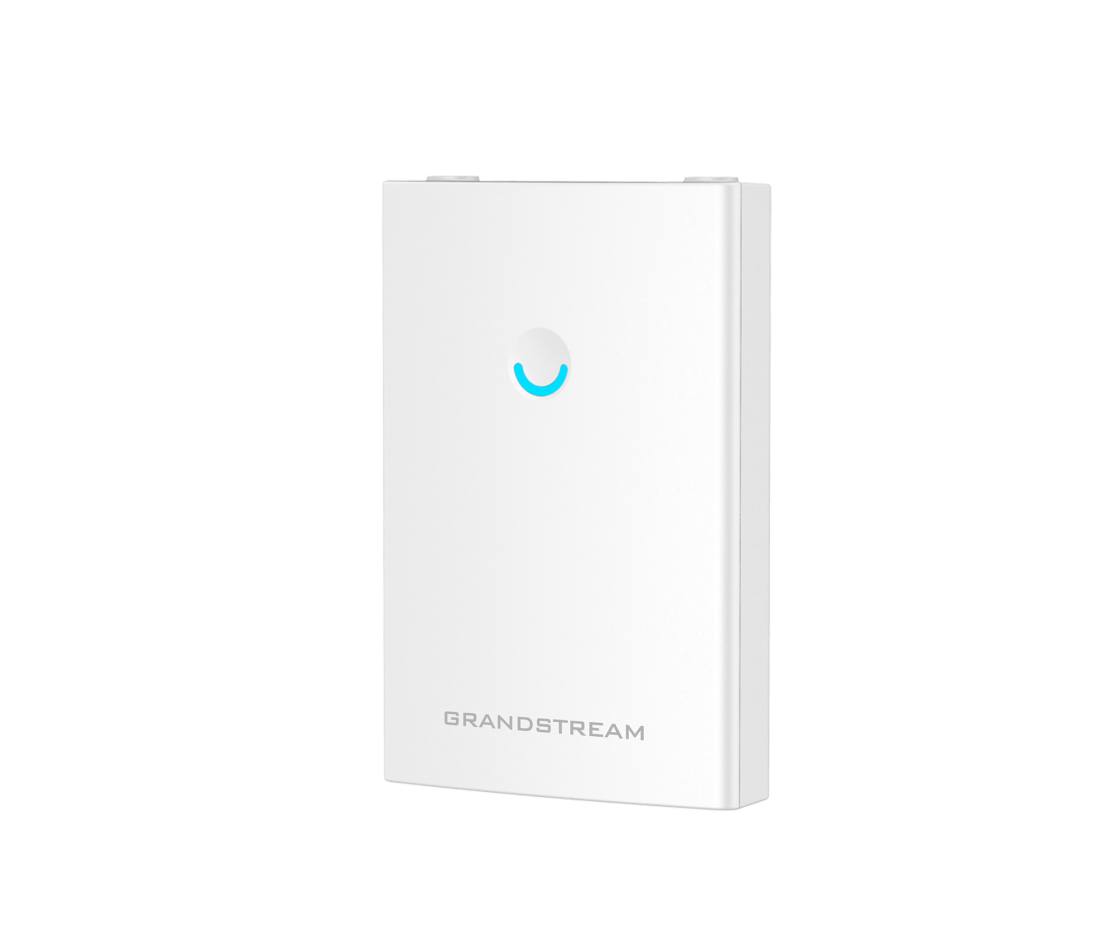

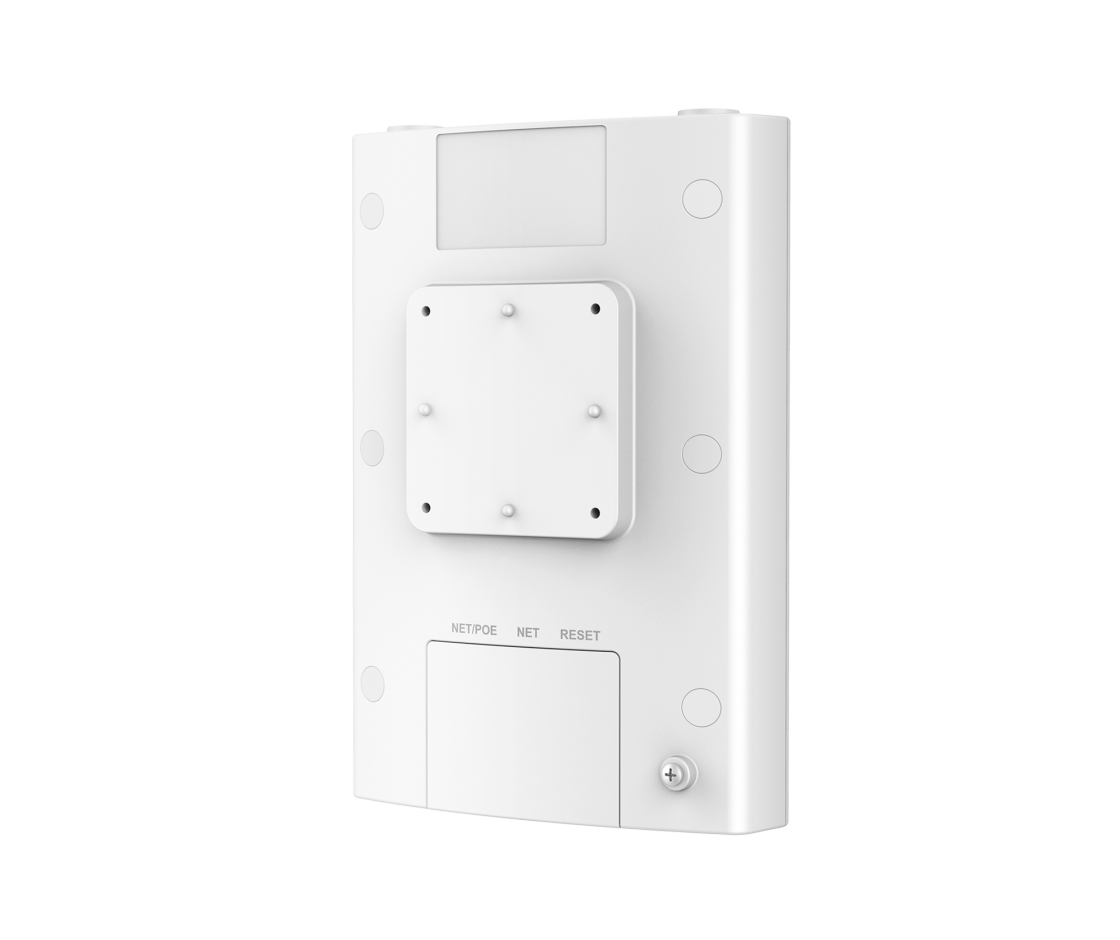

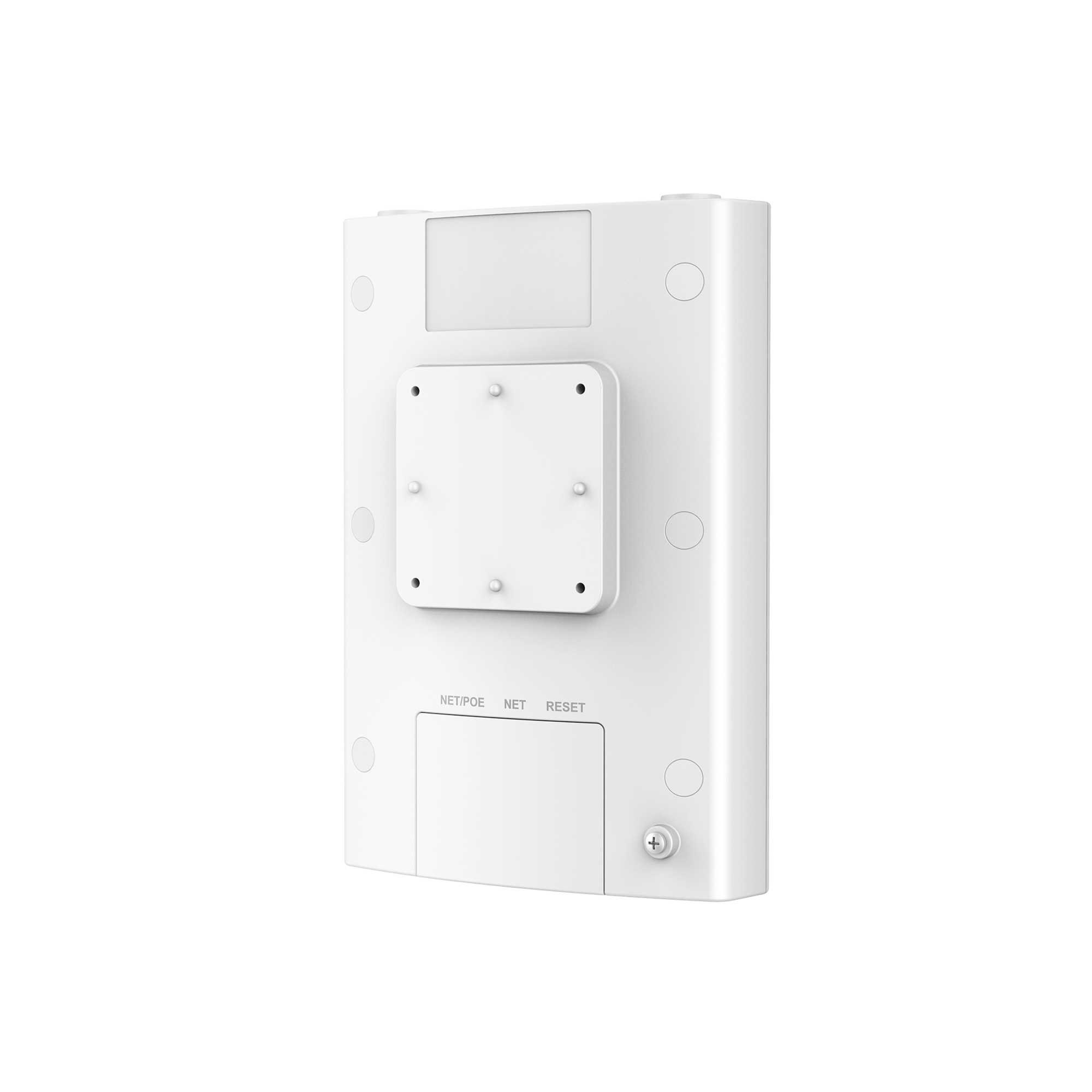

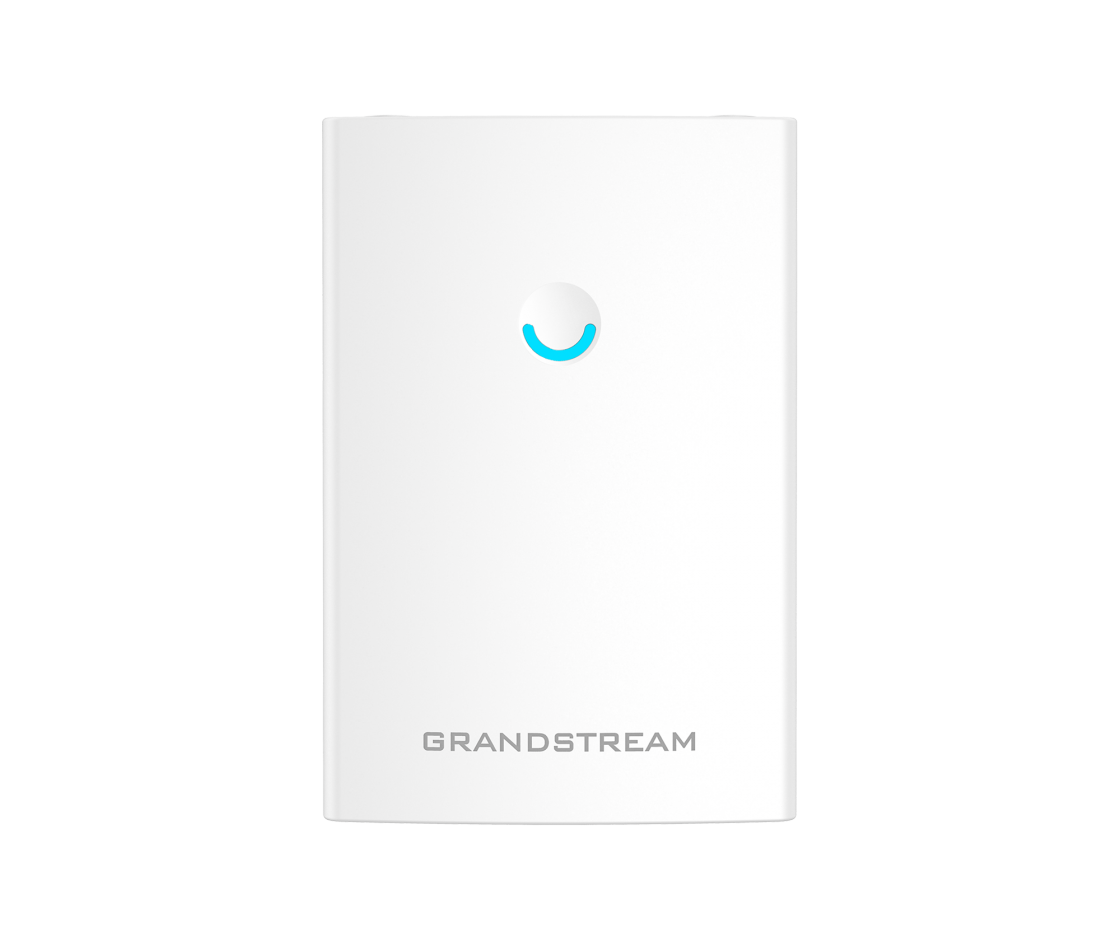

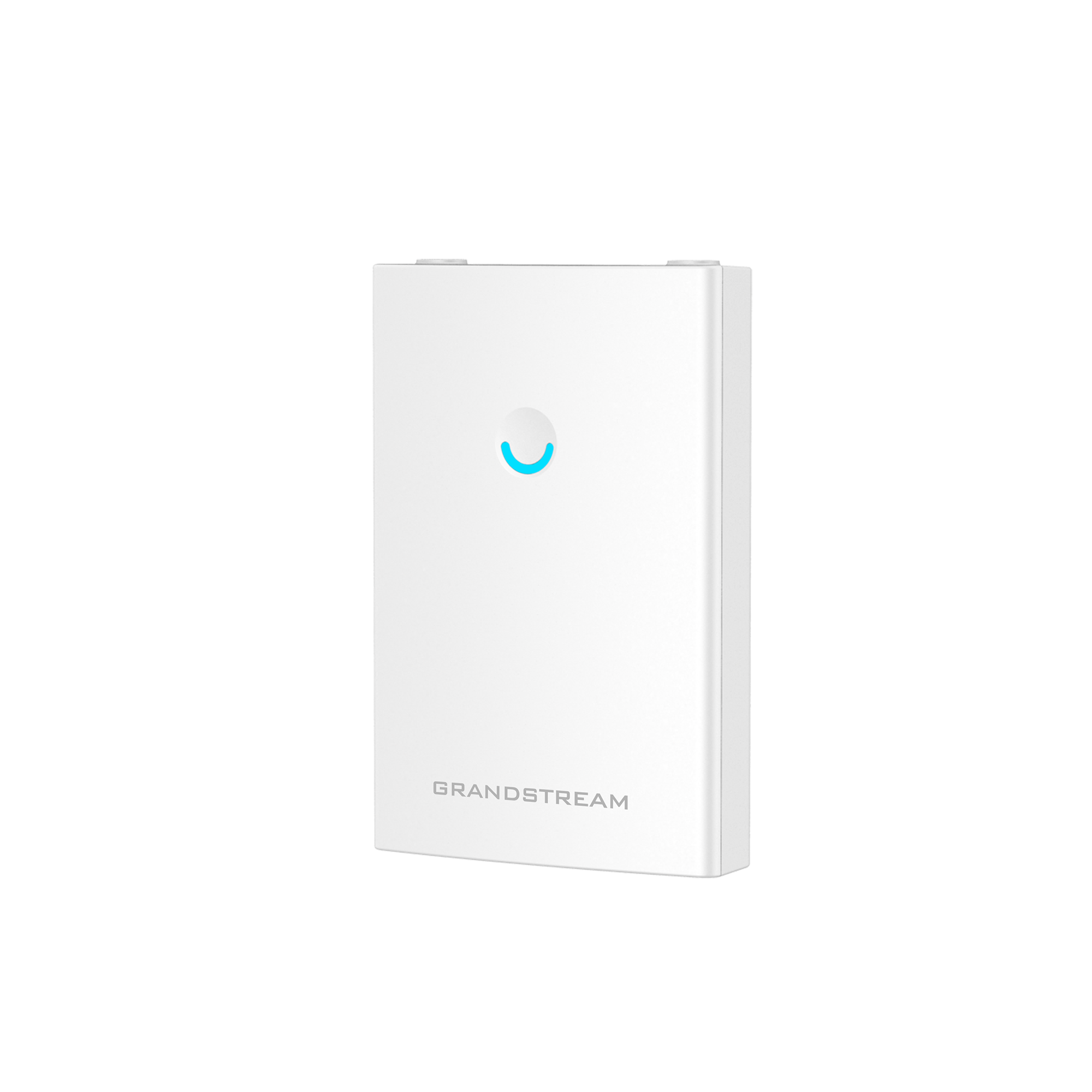

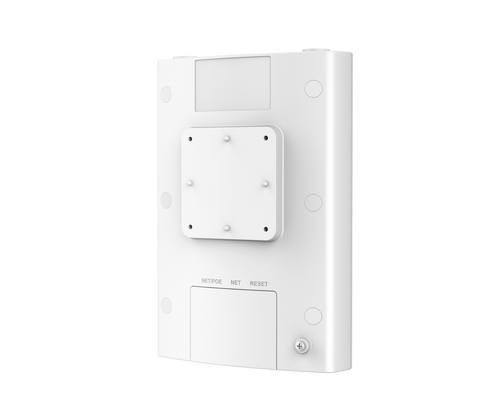

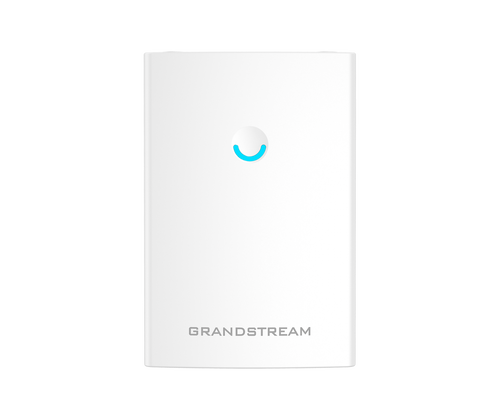

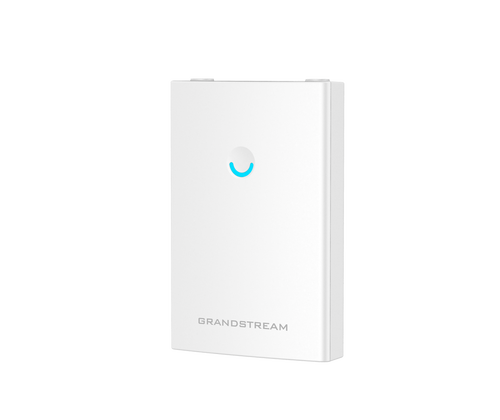

GWN7630LR
GWN 4x4:4 802.11 ac Wave-2 Weatherproof Long-Range Access Point
The GWN7630LR is a long-range 802.11ac Wave-2 4x4:4 access point designed to provide next generation network coverage for indoor and outdoor environments.
- 2.33Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 4x4:4 MIMO technology
- Self power adaptation upon auto detection of PoE/PoE+
- Support up to 250+ concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown

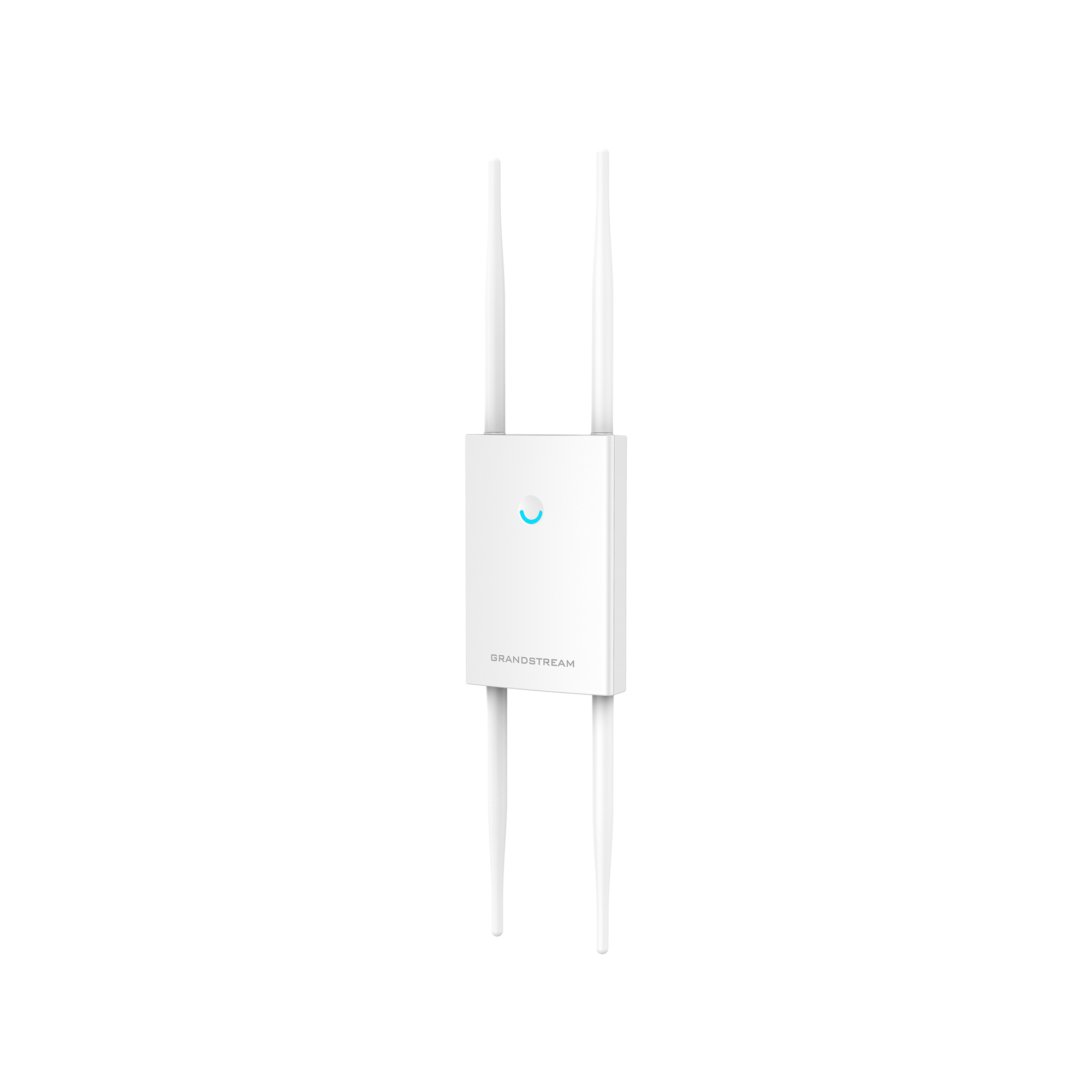

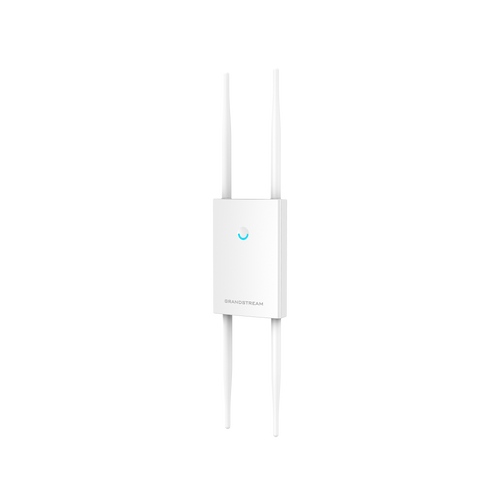

- Flexibility of detachable/ changeable antenna for different application scenarios
- Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management
Free Network Management Options
GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.
GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.
Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.
Product Highlights
Stonex India Case Study
Stonex India is one of the largest providers of natural stone in Asia. They procure, process, and sell over 500 varieties of stone curated from all over the world, highlighted by a luxury collection of white marble, granite, travertine, onyx, limestone, and semi-precious stones. Grandstream was chosen to build a powerful, modern Wi-Fi network that can provide a strong and reliable connection for hundreds of devices along with strong security protection.
In this case study, learn how the GWN7630LR was used to achieve this goal.
Basic Deployment Concepts GWN Access Points
In this video, we go over some high-level explanations of what is involved in planning, deploying, and optimizing GWN7600 series access points. The information in this video will help installers design a wireless network that will provide the required Wi-Fi coverage, data rates, wireless capacity, and roaming capability. These are the points covered in this video:
- Predictive site survey
- AP selection
- Local and cloud management of GWN access points
- Post-deployment survey
- Wi-Fi features: RRM, Voice Enterprise, Airtime Fairness, Client Isolation, Band Steering
Nolichucky George Campground Wi-Fi Solution
Nolichucky Gorge Campground is an outdoor recreational campground and river guide headquarters. They serve families, fishermen, and paddlers access to local outdoor wilderness experiences for any age or experience level. From the edible gardens to the Noli. Nolichucky Gorge Campground year provides an enjoyable experience to hundreds of visitors throughout the year. Nolichucky Gorge Campground needed to provide Wi-Fi access to their entire campus which had 0 mobile coverage and limited access to outside networks.
By choosing the GWN7630LR Wi-Fi access points, Erwin Utilities was able to provide superior coverage while maintaining a lower cost of operations for Nolichucky Gorge Campground.
Product Comparison
NameGWN7630LR |
---|
Specs |
Client Devices 250+ |
Range 300 Meters |
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports |
PoE/PoE+ Supports PoE 802.3af/ 802.3at; Max Consumption: 16.5W |
2.4G Throughput 600Mbps (4x4:4 MIMO) |
5G Throughput 1733Mbps (4×4:4 MU-MIMO) |
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2) |
SSIDs 32 SSIDs total, 16 per radio (2.4Ghz and 5Ghz) |
Antennas 4 detachable/changeable dual-band omnidirectional antennas |
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise, WPA3, anti- hacking secure boot and critical data/control lockdown via digital signatures |
Dimensions 205.3x205.3x45.9mm |
Mounting Wall mount or pole mount |
