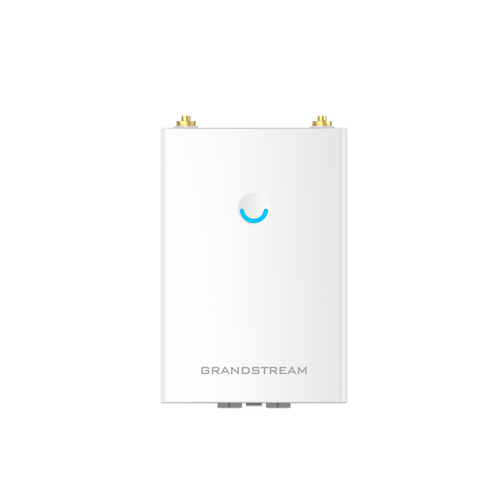

GWN7605LR

GWN 2x2:2 802.11ac Wave-2 Weatherproof Long-Range Access Point
The GWN7605LR is a long-range 802.11ac Wave-2 2x2:2 access point designed to provide next generation network coverage for indoor and outdoor environments.

  • 1.27Gbps aggregate wireless throughput and 2×Gigabit wireline ports
  • Dual-band 2×2:2 MUMIMO with beam-forming technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Supports 100+ concurrent Wi-Fi client devices
  • Up to 250-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibilty of 2 detachable/ changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Free Network Management Options

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GDMS Networking
gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

GWN Manager
embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights


Affordable and Powerful

The GWN7605LR is a competitive Wi-Fi device that was designed for a low price point with high performance, perfect for more cost-sensitive and mid-volume Wi-Fi deployments.

  • Retail Price: Competitive models of similar capabilities priced well above the GWN7605LR
  • Market Leading Wi-Fi Standards: Wave-2 IEEE 802.11a/b/ g/n/ac standards, this supports past, present, and future Wi-Fi devices
  • Greater Performance for Less Money: 100+ concurrent devices, 250-meter coverage range, 1.27Gbps aggregate dual-band throughput
  • Weatherproof Casing: IP66-level weatherproofing for outdoor Wi-Fi deployments

Basic Deployment Concepts GWN Access Points

In this video, we go over some high-level explanations of what is involved in planning, deploying, and optimizing GWN7600 series access points. The information in this video will help installers design a wireless network that will provide the required Wi-Fi coverage, data rates, wireless capacity, and roaming capability. These are the points covered in this video:

  • Predictive site survey
  • AP selection
  • Local and cloud management of GWN access points
  • Post-deployment survey
  • Wi-Fi features: RRM, Voice Enterprise, Airtime Fairness, Client Isolation, Band Steering

Product Comparison


NameGWN7605LR
Specs
Client Devices 100+
Range 250 Meters
Network Interfaces 2 x autosensing 10/100/1000 Base-T Ethernet Ports
PoE/PoE+ Supports PoE 802.3af/ 802.3at Max Consumption: 10.16W
2.4G Throughput 300Mbps (2x2:2 MIMO)
5G Throughput 867Mbps (2x2:2 MU-MIMO)
Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
Antennas 2 dual band external antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures
Dimensions 180.4x180.4x40.8mm
Mounting Wall mount or pole mount

Related Products



  • 3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
  • Dual-band 4x4:4 MU- MIMO with DL/UL OFDMA technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support 750+ concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of 4 detachable/changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

  • 1.77Gbps aggregate wireless throughput and2x Gigabit Ethernet ports
  • Dual-band 2×2:2 MU- MIMO with DL/UL OFDMA technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support 500+ concurrent Wi-Fi client devices
  • Up to 250-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of 2 detachable/changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

  • 2.33Gbps wireless throughput and 2x Gigabit wireline ports
  • Dual-band 4x4:4 MIMO technology
  • Self power adaptation upon auto detection of PoE/PoE+
  • Support 200+ concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of detachable/ changeable antenna for different application scenarios
  • Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management
  •

  • 1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
  • Dual-band 2x2:2 MU-MIMO with beamforming technology
  • Self power adaptation upon auto detection of PoE/PoE+
  • Supports 100+ concurrent Wi-Fi client devices
  • Up to 165-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
