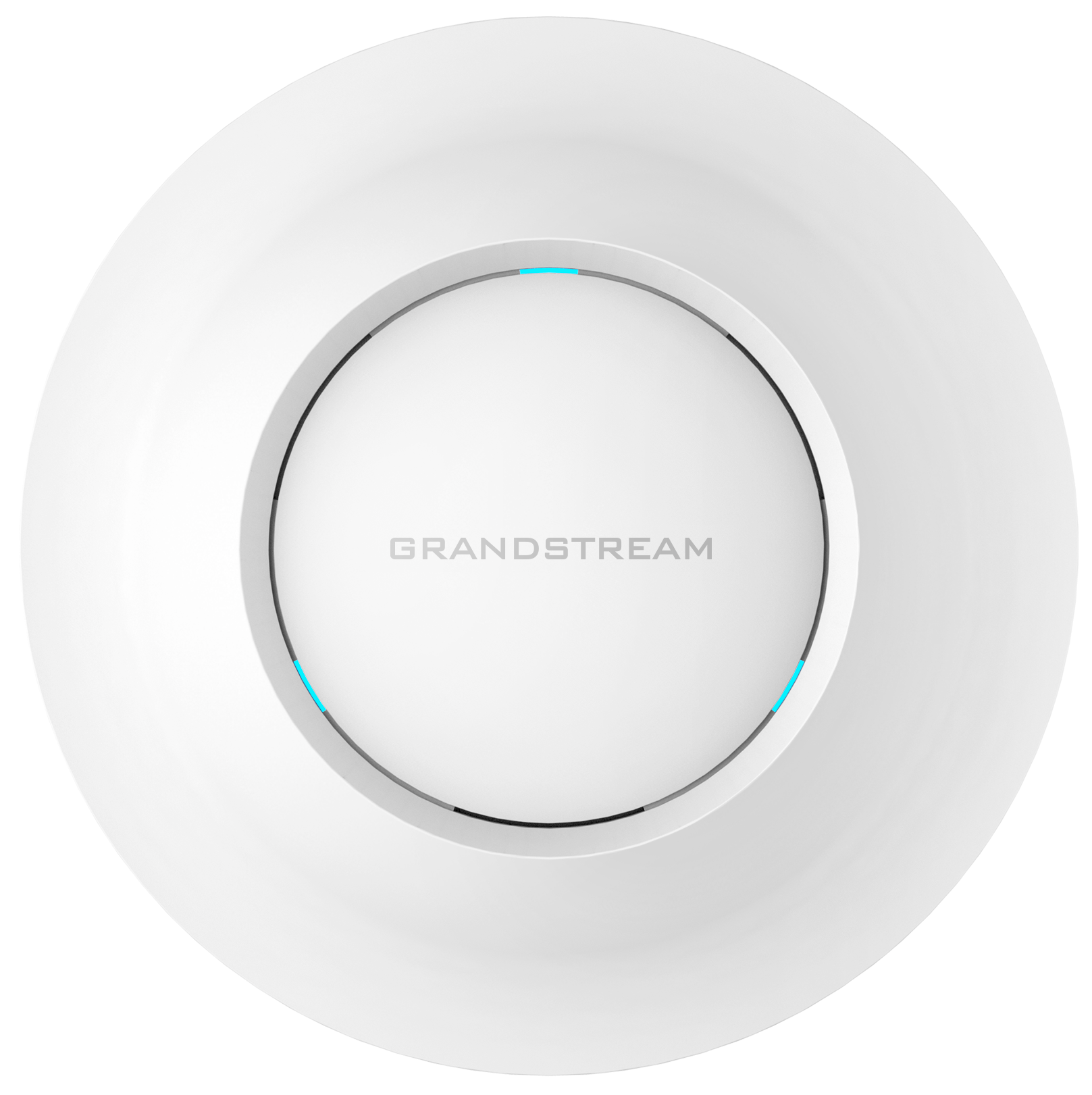

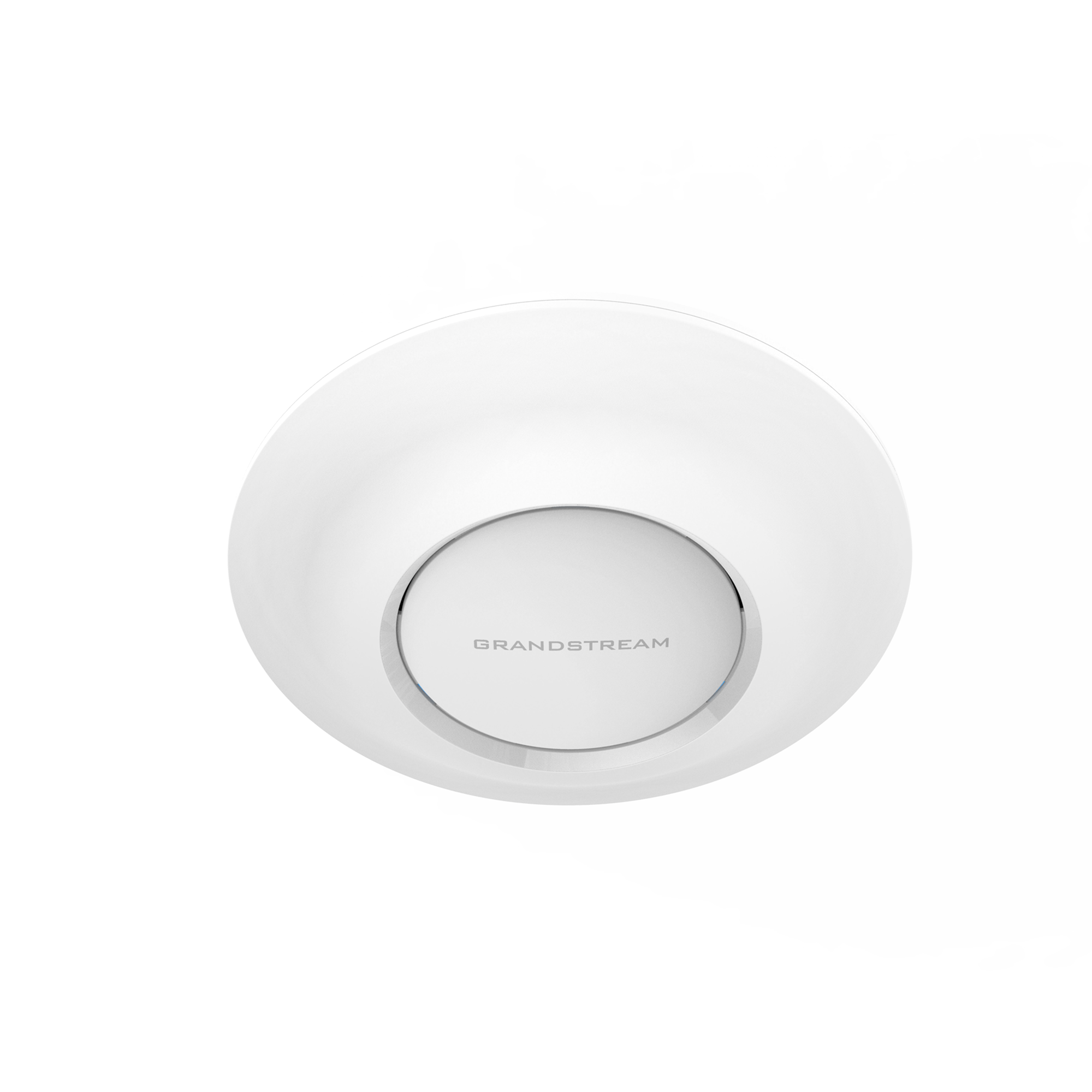

GWN7630

GWN 802.11ac Wave-2 4x4:4 Access Point
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point and  offers dual-band 4×4:4 MU-MIMO technology for small to medium sized businesses, multiple floor offices, commercial locations and branch offices.

  • 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
  • Dual-band 4×4:4 MU-MIMO technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Supports 200+ concurrent Wi-Fi client devices
  • Up to 175-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management

Free Network Management Options Module

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GDMS Networking
gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

GWN Manager
embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights


Payra Port Authority Case Study

Payra Port Authority is an autonomous port authority in charge of the third port in the Port of Payra, Bangladesh, and is situated in Patuakhali, Bangladesh. The Payra Port Authority, being a highly specialized government institution, needed a secure way of managing all its Wi-Fi access points as it was a high-security project. Payra Port Authority also needed to use Wi-Fi with multiple authentication systems, especially Active Directory Authentication.

In this case study, you can learn why Grandstream's GWN7630 was chosen for this solution.

Payra Port Authority Case Study

Basic Deployment Concepts GWN Access Points

In this video, we go over some high-level explanations of what is involved in planning, deploying, and optimizing GWN7600 series access points. The information in this video will help installers design a wireless network that will provide the required Wi-Fi coverage, data rates, wireless capacity, and roaming capability. These are the points covered in this video:

  • Predictive site survey
  • AP selection
  • Local and cloud management of GWN access points
  • Post-deployment survey
  • Wi-Fi features: RRM, Voice Enterprise, Airtime Fairness, Client Isolation, Band Steering

Stonex India Case Study

Stonex India is one of the largest providers of natural stone in Asia. They procure, process, and sell over 500 varieties of stone curated from all over the world, highlighted by a luxury collection of white marble, granite, travertine, onyx, limestone, and semi-precious stones. As Stonex India grew, their facilities grew too. They needed to ensure that staff and guests had Wi-Fi access throughout their showroom and their state-of-the-art manufacturing facility.

Grandstream was chosen to build a powerful, modern Wi-Fi network that can provide a strong and reliable connection for hundreds of devices along with strong security protection.

Stonex India Case Study

Product Comparison


NameGWN7630
Specs
Client Devices 200+
2.4G Throughput 600Mbps (4x4:4 MIMO)
5G Throughput 1733Mbps (4×4:4 MU-MIMO)
6G THROUGHPUT N/A
Range Up to 175 Meters
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
PoE/PoE+ Supports PoE 802.3af/ 802.3at; Max Consumption: 16.5W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
SSIDs 32 SSIDs total, 16 per radio (2.4Ghz and 5Ghz)
Antennas 4 dual band internal antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise, WPA3, anti- hacking secure boot and critical data/control lockdown via digital signatures
Dimensions 205.3x205.3x45.9mm
Mounting Indoor wall mount or ceiling mount

Related Products



  • 2.03 Gbps wireless throughput and 2 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
  • Supports up to 200 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE or PoE+
  • Embedded controller can manage up to 30 local GWN series APs;
  • GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

  • 1.75Gbps aggregate wireless throughput and 2x Gigabit wireline ports
  • Dual-band 3x3:3 MU-MIMO technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support 200+ concurrent Wi-Fi client devices
  • Up to 175-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller

  • Support for up to 16 SSIDs per radio and up to 250+ concurrent WiFi clients
  • Dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput of up to 1.75Gbps and expanded coverage range of up to 175 meters
  • Dual Gigabit ports with support for PoE/PoE+, USB port for future applications such as location based service and other IoT (Internet of Things) applications
  • User friendly built-in provisioning controller (via Web interface) allows any GWN7610 to auto discover, auto-provision and manage networks of up to 50 GWN7610s without requiring seperate controller hardware/software and without a single point of failure
  • Offers high-end security features that are not available on most 3rd party WiFi APs, including unique security certificate per device using SHA256 encryption and strong random default passwords per device
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Efficient power saving through self power adaptation upon auto detection of PoE or PoE+ network

  • 1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
  • Dual-band 2x2:2 MU-MIMO with beamforming technology
  • Self power adaptation upon auto detection of PoE/PoE+
  • Supports 100+ concurrent Wi-Fi client devices
  • Up to 165-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
