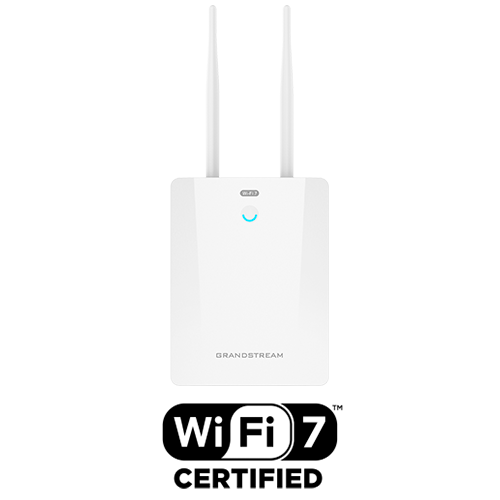

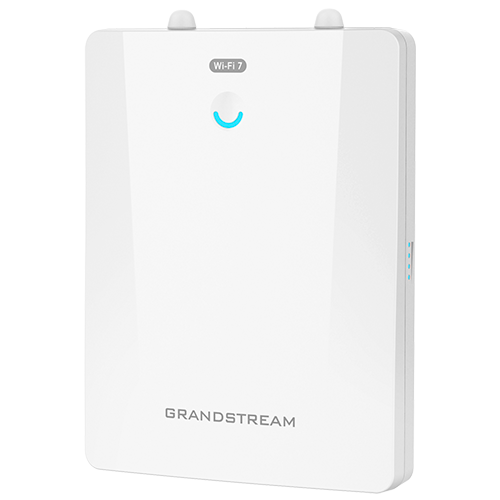

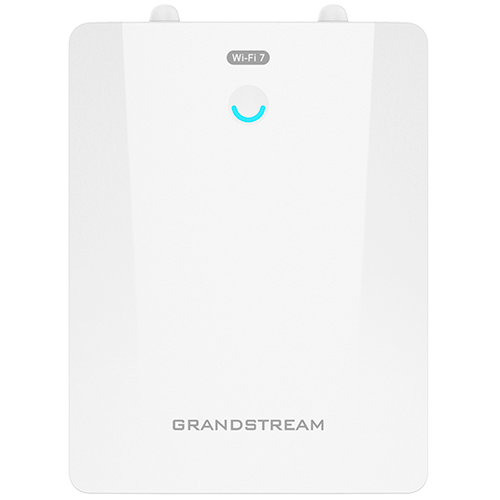

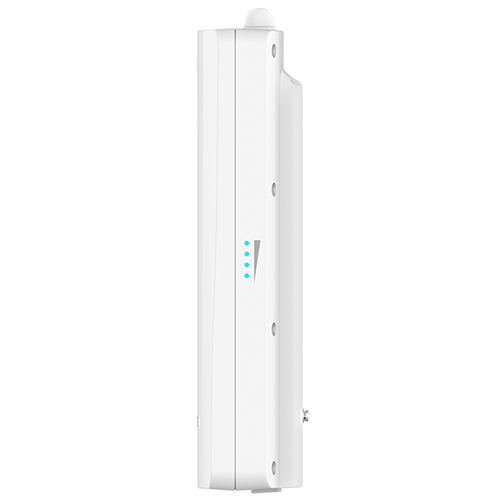

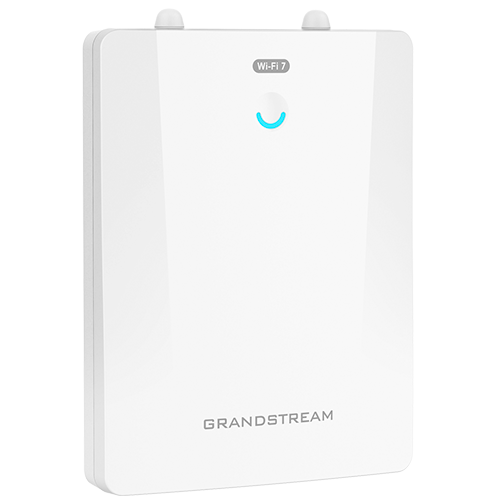

    GWN7670LR

    Long-Range Dual-Band Wi-Fi 7 Access Point/Bridge
    The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage.

    • 3.6Gbps aggregate wireless throughput, 2.5Gigabit Ethernet Port, and 2.5Gigabit SFP Port
    • Integrated Wi-Fi 7 and Dual band 2x2:2 MIMO with DL/UL OFDMA technology
    • Up to 350-meter coverage range
    • Supports 256 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self-power adaptation upon auto-detection of PoE+
    • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    State-of-the-Art Wi-Fi 7 Connectivity

    The GWN7670LR is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.



    Ideal for Environments with Medium User Density

    The GWN7670LR provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.



    Twice as Fast as Wi-Fi 6

    Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.



    Easy and Free Management

    Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    GWN7670LR Key Deployment Scenarios

    The GWN7670LR can be deployed in various scenarios including:
    • Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
    • Commercial Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
    • Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

    Product Comparison

    NameGWN7670LR
    Specs
    Client Devices 256
    Range 350 Meters

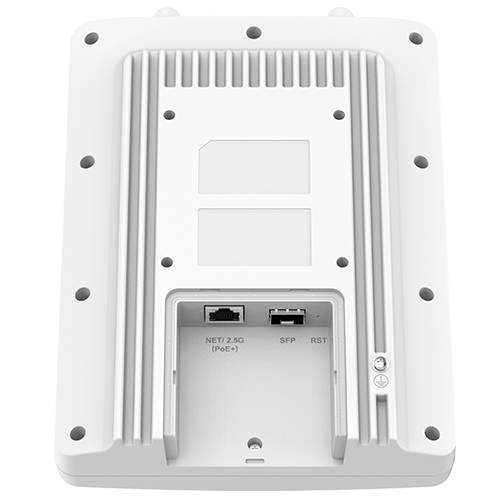

    Network Interfaces 1x 2.5G Ethernet WAN/LAN, RJ-45, PoE input 1x 2.5G SFP
    PoE/PoE+ Supports PoE 802.3at; Maximum Power Consumption: 15.5W
    2.4G Throughput 688Mbps (2x2:2 MIMO)
    5G Throughput 2882Mbps (2x2:2 MIMO)
    Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax/be
    SSIDs 32 SSIDs total, 16 per radio

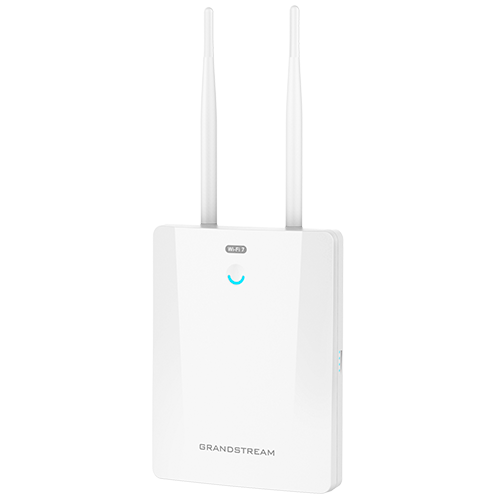

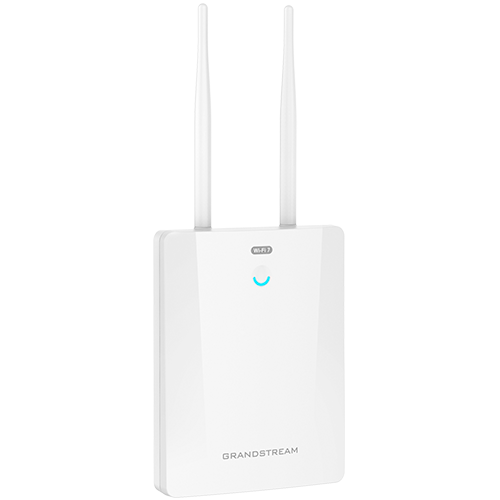

    Antennas 2.4G: Directional internal 8dBi/External omni 3.5dBi 5G: Directional internal 13.5dBi/External omni 3.5dBi BT: 5.0dBi
    Wi-Fi and Security Systems Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules, Rogue AP detection and containment, ARP attack defense, ND attack defense
    Dimensions 223.2mm x 169.9mm x 53.9mm

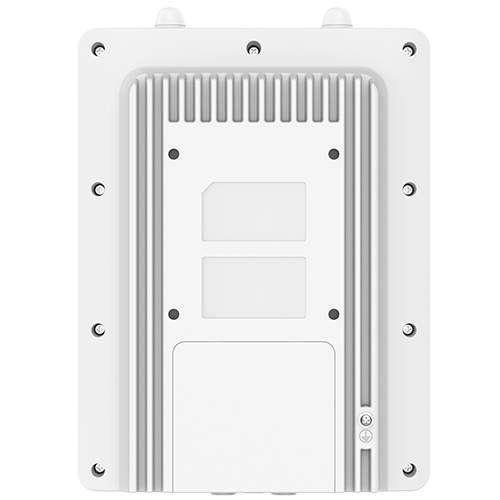

    Mounting Wall mount or pole mount, kits included
