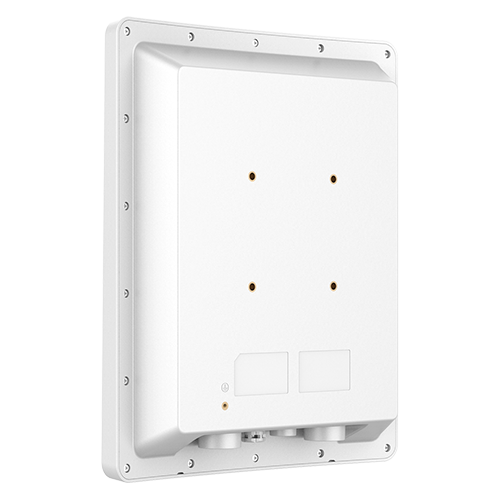

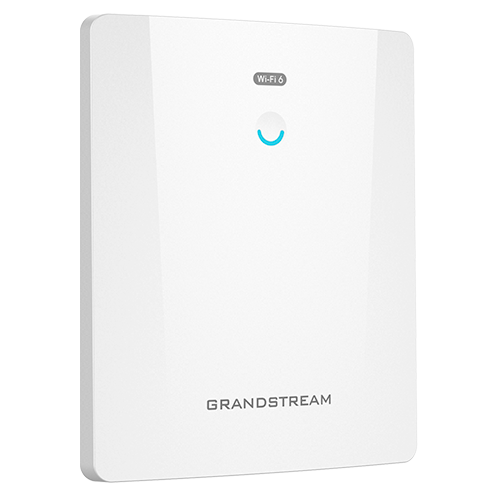

    GWN7664ELR

    High-Performance Outdoor Long-Range 802.11ax Wi-Fi 6 Access Point

    The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces.

    • 6 Gbps aggregate wireless throughput, 2.5 Gbps RJ45, and 2.5 Gbps SFP wireline ports
    • Dual-band 4x4:4 MU-MIMO with OFDMA technology
    • Self-power adaptation upon auto-detection of PoE or PoE+
    • Support 512 concurrent Wi-Fi client devices
    • Up to 300-meter coverage range
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Flexibility of 8 internal antennas
    • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    www.grandstream.comhubfsgwn cloud combinationn graphic

    GWN.Cloud

    GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

    GDMS Networking
    gwnmanager_thumbnail

    GWN Manager

    GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





    Product Highlights

    Wi-Fi 6

    Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

    Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

    Self-Guided Networking Solution Training

    Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

    This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

    Networking Solution Self-Training (GCS)

    Product Comparison

    NameGWN7664ELR
    Specs
    Client Devices 512
    Range 300 Meters

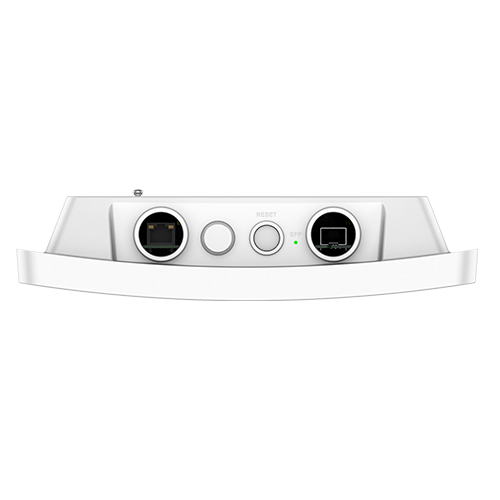

    Network Interfaces 1x 2.5G RJ45 Port and 1x 2.5G SFP Port
    PoE/PoE+ Supports PoE 802.3at; Maximum Power Consumption: 24W
    2.4G Throughput 1147Mbps (4x4:4 MU-MIMO)
    5G Throughput 4.8Gbps (4x4:4 MU-MIMO)
    Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax
    SSIDs 32 SSIDs total, 16 per radio
    Antennas 8 individual internal antennas
    Wi-Fi and Security Systems WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
    Dimensions 260mm x 310mm x 59mm
    Mounting Wall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°)
