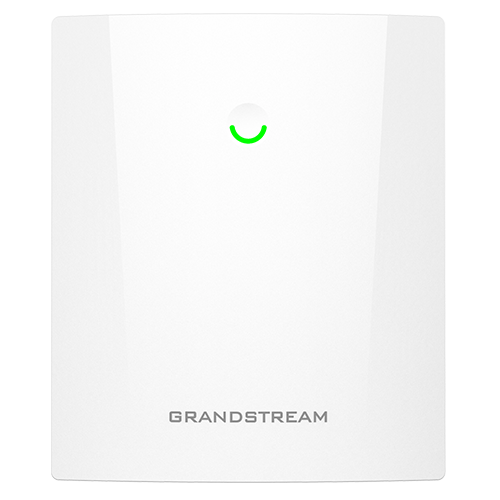

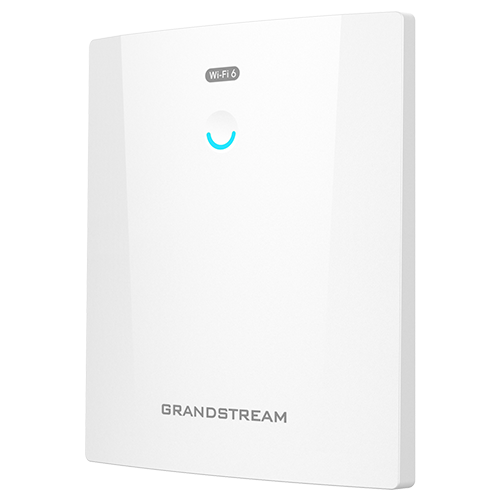

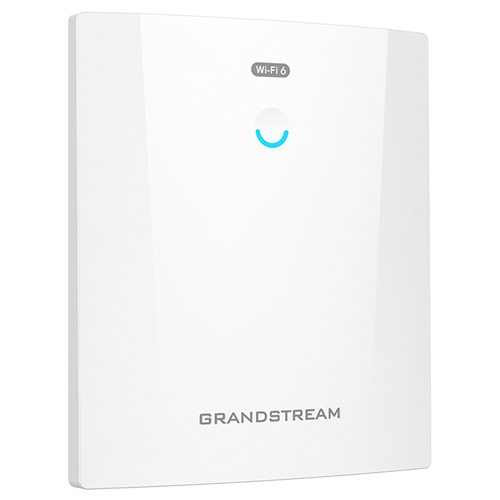

GWN7660ELR

GWN Enterprise-Grade 2x2:2 Wi-Fi 6 Weatherproof Long-Range Access Point
The GWN7660ELR is an enterprise-grade long-range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments.

3 Gbps aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline ports
Dual-band 2x2:2 MIMO with OFDMA technology
Self-power adaptation upon auto-detection of PoE or PoE+
Support 256 concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Flexibility of 5 internal antennas
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Contact Sales

Product Resources & Documentation

Wi-Fi 6

Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

Self-Guided Networking Solution Training

Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.


NameGWN7660ELR

Specs
Client Devices Up to 256
Range 300 Meters

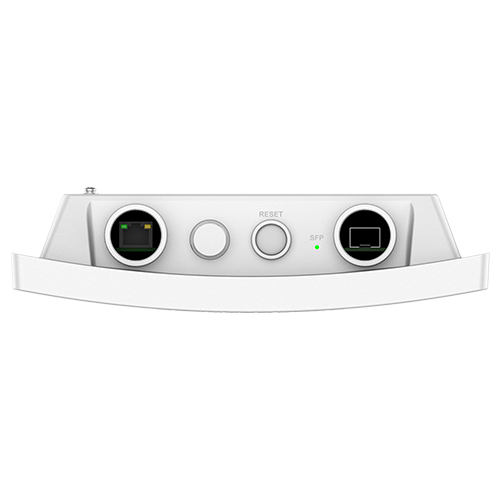

Network Interfaces 1x 1G RJ45 Port and 1x 2.5G SFP Port
PoE/PoE+ Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 13W
2.4G Throughput 573.5Mbps (2x2:2 MIMO)
5G Throughput 2.4Gbps (2x2:2 MIMO)
Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax
SSIDs 32 SSIDs total, 16 per radio
Antennas 5 individual internal antennas
Wi-Fi and Security Systems WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions 270mm x 230mm x 57mm

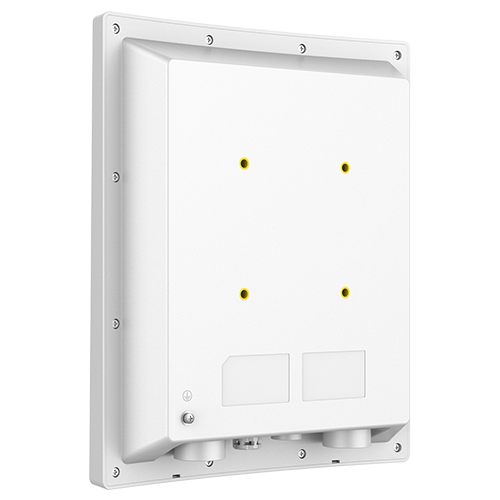

Mounting Wall mount or pole mount, kits included (The mounting kits can be adjusted and rotated by 60°)

GWN7664LR

3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
Dual-band 4x4:4 MU- MIMO with DL/UL OFDMA technology
Self power adaptation upon auto detection of PoE or PoE+
Support 750+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibility of 4 detachable/changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

GWN7660LR

1.77Gbps aggregate wireless throughput and2x Gigabit Ethernet ports
Dual-band 2×2:2 MU- MIMO with DL/UL OFDMA technology
Self-power adaptation upon auto-detection of PoE or PoE+
Support 500+ concurrent Wi-Fi client devices
Up to 250-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibility of 2 detachable/changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

GWN7630LR

2.33Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 4x4:4 MIMO technology
Self power adaptation upon auto detection of PoE/PoE+
Support 200+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibilty of detachable/ changeable antenna for different application scenarios
Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management

GWN7605LR

1.27Gbps aggregate wireless throughput and 2×Gigabit wireline ports
Dual-band 2×2:2 MUMIMO with beam-forming technology
Self power adaptation upon auto detection of PoE or PoE+
Supports 100+ concurrent Wi-Fi client devices
Up to 250-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibilty of 2 detachable/ changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

GWN7660ELR

Free Network Management Options

GDMS Networking

GWN Manager

Embedded Controller

Product Highlights

Wi-Fi 6

Self-Guided Networking Solution Training

Product Comparison
