Aquarius Motor Inn Case Study
Aquarius Motor Inn has excellent service and facilities including a swimming pool, private spa pool, SKY Guest Select (50+ SKY channels), and free, unlimited, wireless internet. Aquarius Motor Inn is in a quieter part of the Mount and is the ideal ‘base’ to explore the area. Whether it’s the glorious stretch of white sandy beaches, the bustling harbor with its many visiting cruise liners, the fantastic hot saltwater pools, or the Mount itself, they are within close proximity of all the major attractions.
The GWN7605s were installed on the roof and downstairs in the building apartments. The upstairs apartment roofs house the cabled master access points and downstairs access points operate over a mesh connection to the master devices.
GWN Management Platforms
Grandstream's GWN7605, along with the rest of our GWN networking portfolio, can be fully managed from GWN.Cloud and GWN Manager. These two free platforms allow you to configure, monitor, and troubleshoot GWN deployments from either the cloud or an on-site server. Secure networks can be deployed in seconds using our GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.
Click below to head to our documentation center, and learn how you can deploy the GWN7605, and our other devices, on GWN.Cloud or GWN Manager.
Self-Guided Networking Solution Training
Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.
This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

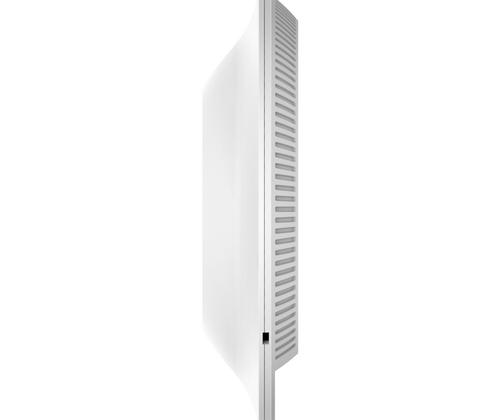

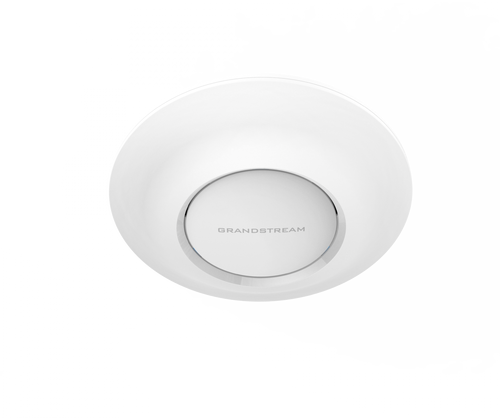

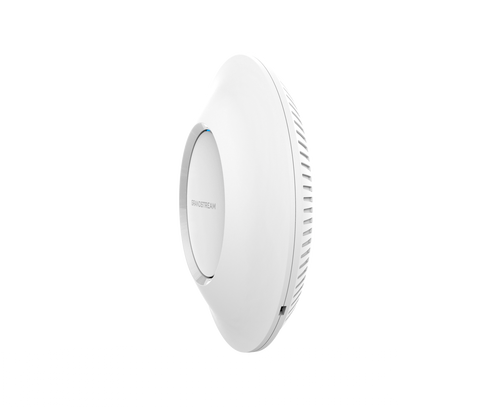

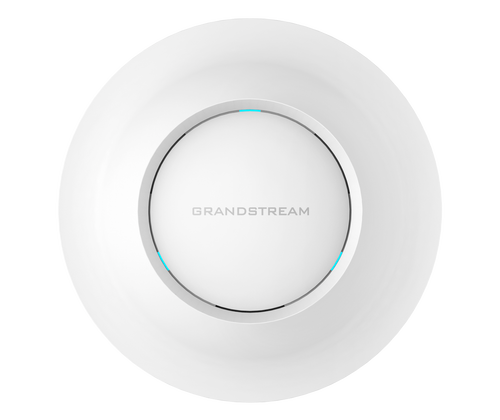

| NameGWN7605 |
|---|
 |
| Specs |
| Client Devices 100+ |
| 2.4G Throughput 300Mbps (2x2:2 MIMO) |
| 5G Throughput 867Mbps (2x2:2 MU-MIMO) |
| 6G THROUGHPUT N/A |
| Range Up to 165 Meters |
| Network Interfaces 2 x autosensing 10/100/1000 Base-T Ethernet Ports |
| PoE/PoE+ Supports PoE 802.3af/ 802.3at; Max Consumption: 10.16W |
| Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2) |
| SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz) |
| Antennas 2 dual band internal antennas |
| Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures |
| Dimensions 180.4x180.4x40.8mm |
| Mounting Indoor wall mount or ceiling mount |
