    GWN7603

    802.11ac Wave-2 Wi-Fi Access Point
    The GWN7603 is a versatile, compact Wi-Fi access point that provides 4 Gigabit ports; two ports with PSE that can provide PoE and a network connection to other devices and one uplink port that can receive PoE to power the access point.

    • 1.27Gbps aggregate wireless throughput, 1x Gigabit and 3x Gigabit wireline speed
    • Up to 100 meters coverage range
    • Self power adaptation upon auto detection of PoE/PoE+ and PSE
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Support up to 100+ Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    www.grandstream.comhubfsgwn cloud combinationn graphic

    GWN.Cloud

    GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

    GWN.Cloud
    gwnmanager_thumbnail

    GWN Manager

    GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





    Product Highlights

    Self-Guided Networking Solution Training

    Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

    This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

    Networking Solution Self-Training (GCS)

    Product Comparison

    GWN7603

    NameGWN7603
    Specs
    Client Devices 100+
    Range Up to 100 Meters
    Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
    PoE/PoE+ Supports PoE 802.3af/ 802.3at; PSE max output per port: 12W;Max Consumption: 6.5W (Excluding PoE Output)
    2.4G Throughput 300Mbps (2x2:2 MU-MIMO); 400 Mbps with 256-QAM
    5G Throughput 867Mbps (2x2:2 MU-MIMO)
    6G THROUGHPUT N/A
    Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
    SSIDs 16 SSIDS total, 8 per radio (2.4Ghz and 5Ghz)
    Antennas 2 dual band internal antennas
    Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
    Dimensions 135mm x 115mm x 30mm
    Mounting Indoor wall mount

    Related Products

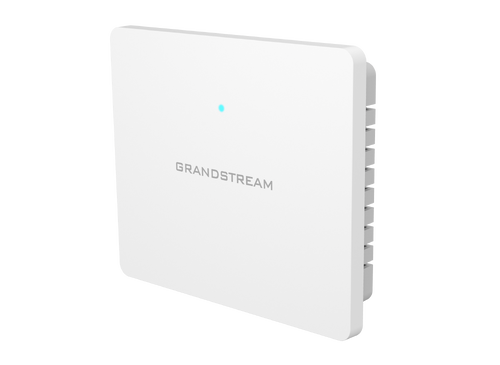

    GWN7602

    GWN7602

    GWN7602

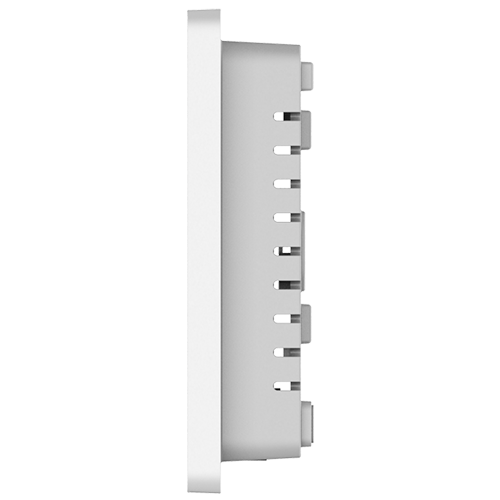

    GWN7603_side-1

    • 1.17Gbps aggregate wireless throughput, 1x Gigabit and 3x 100Mbit wireline speed
    • Up to 100 meters coverage range
    • Self power adaptation upon auto detection of PoE/PoE+ and PSE
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Support up to 80 Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures,

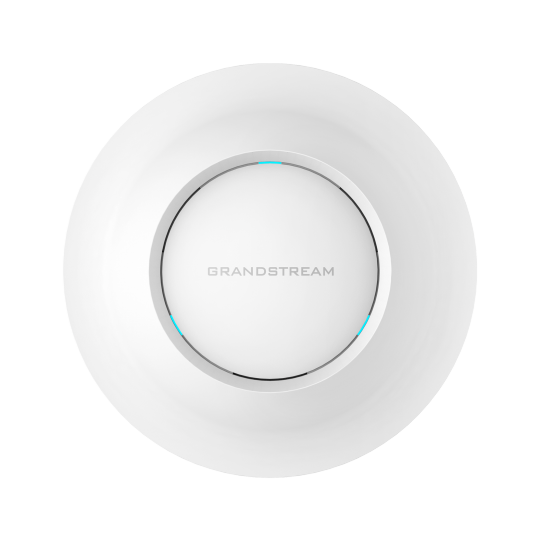

    GWN7605

    GWN7605

    GWN7605


    • 1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
    • Dual-band 2x2:2 MU-MIMO with beamforming technology
    • Self power adaptation upon auto detection of PoE/PoE+
    • Supports 100+ concurrent Wi-Fi client devices
    • Up to 165-meter coverage range
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

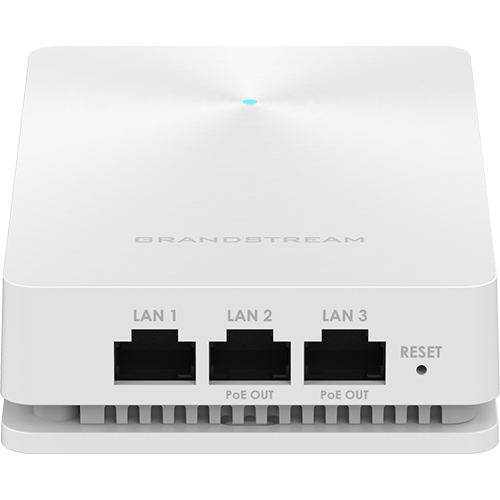

    GWN7624

    GWN7624

    GWN7624

    GWN7624_4

    • 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
    • Supports up to 200 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Self-power adaptation upon auto detection of PoE or PoE+
    • Embedded controller can manage up to 30 local GWN series APs;
    • GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
