    GWN7660EM

    Wi-Fi 6 Extender and Access Point
    The GWN7660EM is an AX3000 Wi-Fi 6 access point with a socket design, enabling simple deployment and superior performance. It can be used as a wireless extender to build a home wireless mesh network to expand network coverage.

    • 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
    • Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
    • Up to 120-meter coverage range
    • Supports 128 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to
      provide easy network expansion
    • Embedded controller can manage up to 10 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Wi-Fi 6

    Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

    Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

    Market-Leading Features

    The GWN7660EM comes equipped with advanced performance-boosting features:
    • UL/DL OFDMA: Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands

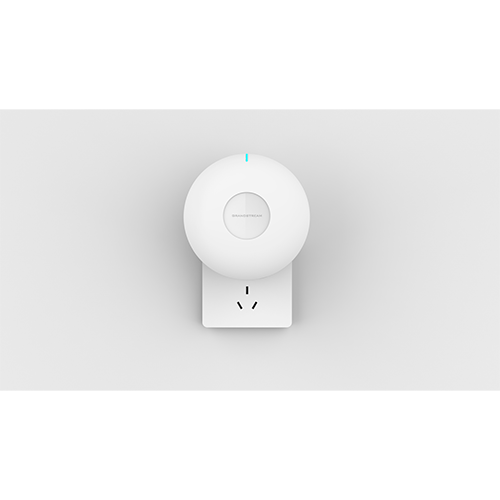

    • Plug-in Access Point and Wi-Fi Extender: GWN7660EM has a socket like design, which enables simple deployment and can be easily plugged in to be used as either an Access Point or an Extender.
    • MESH Networking: Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to provide easy network expansion
    • Multiple Customized SSIDs: Up to 16 SSID channels with customized client configurations, captive portal, and bandwidth limits
    • QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment

    Product Comparison

    NameGWN7660EM
    Specs
    Client Devices 128
    2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO)
    5G Throughput 2.4Gbps (3x3:2 MU-MIMO)
    6G Throughput N/A
    Range Up to 120 Meters
    Network Interfaces 1x autosensing 10/100/1000 Base-T Ethernet Port
    PoE/PoE+ N/A
    Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
    SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
    Antennas 1 single frequency antenna and 2 dual frequency antennas
    Wi-Fi and Security Systems WPA2-PSK (personal) WPA2-802.1x (enterprise) WPA3-SAE (personal) WPA3-802.1x (enterprise) WPA/WPA2, WPA2/WPA3 Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, Open system OSEN, MAC filtering Client isolation OS filtering, Inbound/outbound traffic rules Rogue AP detection and containment ARP attack defense ND attack defense
    Dimensions 110mmx110mmx56.7mm
    Mounting Indoor wall-plug mount
