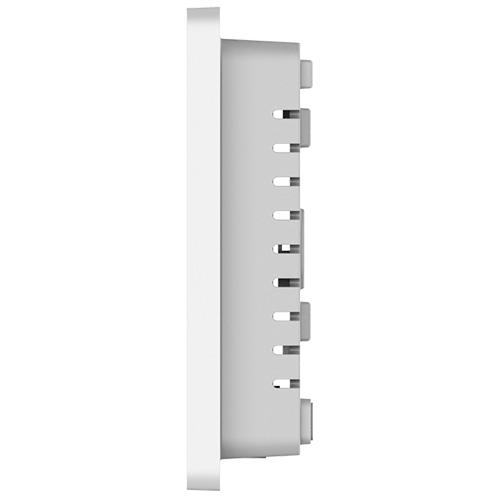

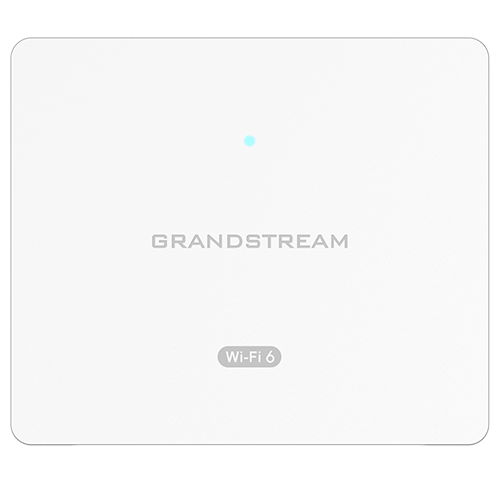

    GWN7604

    Wi-Fi 6 Access Point with Integrated PoE Switch
    The GWN7604 is a compact and versatile Wi-Fi 6 Access Point with 4 Gigabit Ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point and two ports with PSE that can provide PoE and a network connection to other devices.

    • 3Gbps aggregate wireless throughput, 4x Gigabit ports
    • Up to 100 meters coverage range
    • Self power adaptation upon auto detection of PoE/PoE+ and PSE
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Supports up to 256 concurrent Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.






    Product Highlights

    Self-Guided Networking Solution Training

    Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

    This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

    Networking Solution Self-Training (GCS)

    Product Comparison

    NameGWN7604
    Specs
    Client Devices Up to 256
    2.4G Throughput 573.5Mbps (2x2:2 MU-MIMO)
    5G Throughput 2.4Gbps (3x3:2 MU-MIMO)
    6G THROUGHPUT N/A
    Range Up to 100 Meters

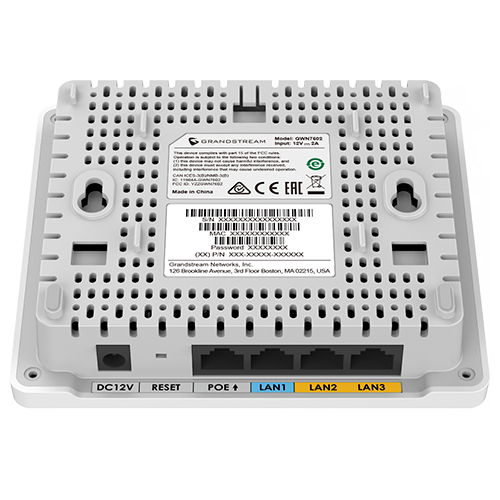

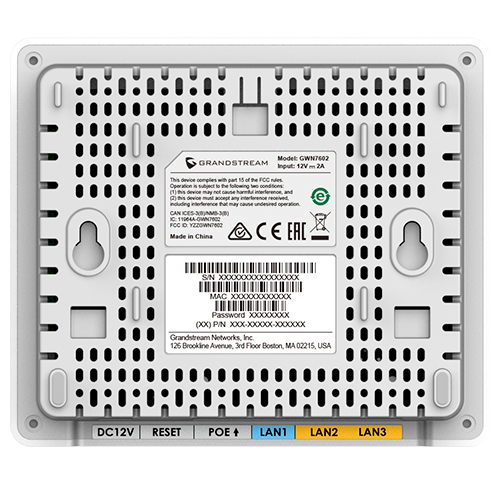

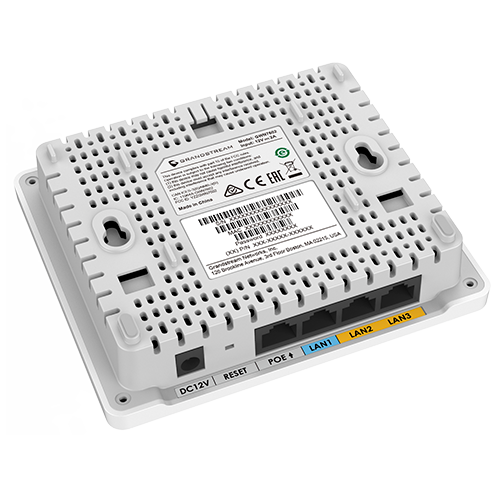

    Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
    PoE/PoE+ PoE 802.3af/ 802.3at PSE max output: Total 12W power budget for LAN2/LAN3 Maximum Power Consumption: 7.5W (Excluding PoE Output)
    Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
    SSIDs 32 SSIDs total, 16 per radio (2.4GHz and 5 GHz)
    Antennas 2 x dual-band internal antennas,1x 5G internal antenna
    Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
    Dimensions 135mm(L) x 115mm(H) x 30mm(W)
    Mounting Indoor Wall mount
