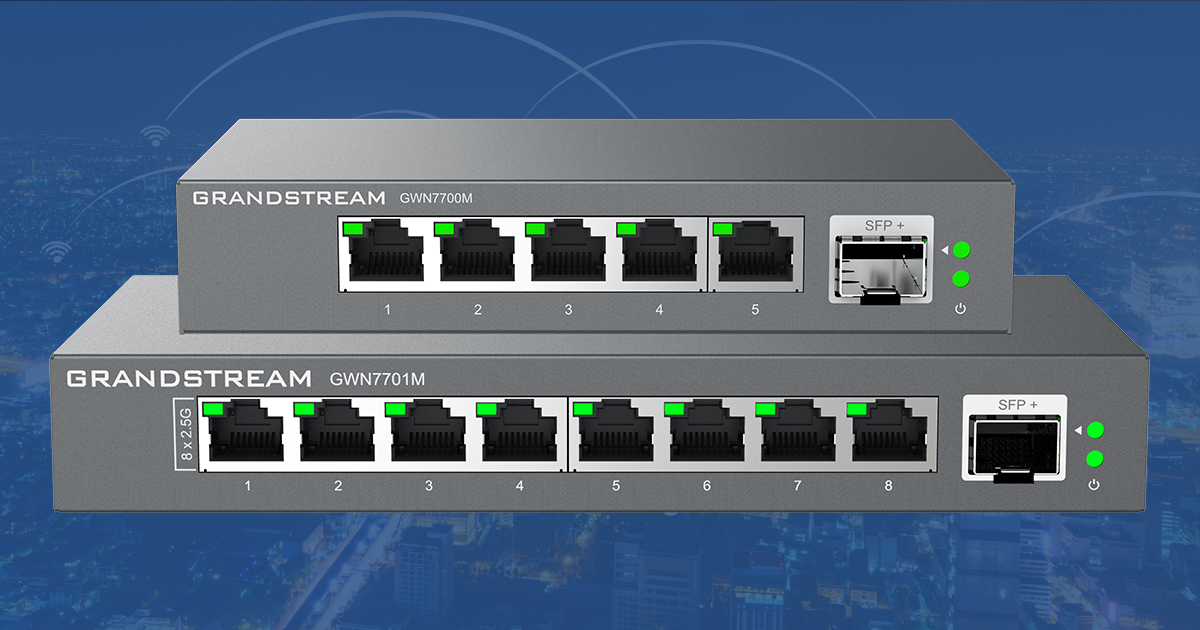

    GWN7700M Series

    Unmanaged 2.5G Multi-Gigabit Network Switches
    The GWN7700M series are 6 & 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses

    • 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
    • One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
    • LED Indicators; Per port: Link/Activity/Speed Per device: Power
    • Auto MDI/MDIX crossover for all ports
    • Whisper Quiet: fanless
    • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
    • Green technology reduces power consumption
    • QoS - Supports Default Strict Priority when present
    Contact Sales
    Product Resources & Documentation
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    www.grandstream.comhubfsgwn cloud combinationn graphic

    GWN.Cloud

    GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

    GWN.Cloud
    gwnmanager_thumbnail

    GWN Manager

    GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





    Product Highlights

    Powerful Unmanaged Processing Capabilities

    The GWN7700M series of unmanaged network switches are designed to be plug-and-play devices that are cost-effective, easy to deploy, and have high network speeds.

    • The GWN7700 series supports up to 5, 8, 16, or 24 Gigabit ports depending on the model, supporting up to 100Gbps switching capacity and 10KB Jumbo Frame capabilities
    • All GWN7700 devices support Auto-Negotiation and Auto MDI/ MDIX, which are two features that help ensure the network and all devices within it are operating at high transmission rates
    • During times of heavy network activity, a switch's port buffers can receive too much traffic and fill up faster than the switch can send the information. GWN7700 switches have IEEE 802.3x Flow Control feature, which tells the transmitting device to wait so the information in the buffer can be sent

    Creating IT Infrastructures with Grandstream's GWN Series

    Grandstream's networking portfolio is widely adopted around the world to support deployments of workstations, IP endpoints, Wi-Fi access points, and other devices. Whether you are new to Grandstream's GWN networking portfolio or regularly install it, this interactive infographic aims to provide you with valuable insights on utilizing GWN Series switches in your networks.

    View Infographic

    Product Comparison

    NameGWN7700M
    Specs
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq
    Gigabit Ports 5
    PoE Ports (PoE Models) N/A
    Port Features
    • 5× 100/1000/2500Mbps RJ45 Ports
    • 1× SFP+ Fiber Port
    • AUTO Negotiation
    • AUTO MDI/MDIX
    PoE Configuration (PoE Models) N/A
    Switching Capability 45Gbps
    Jumbo Frame 9KB
    Enclosure Plastic
