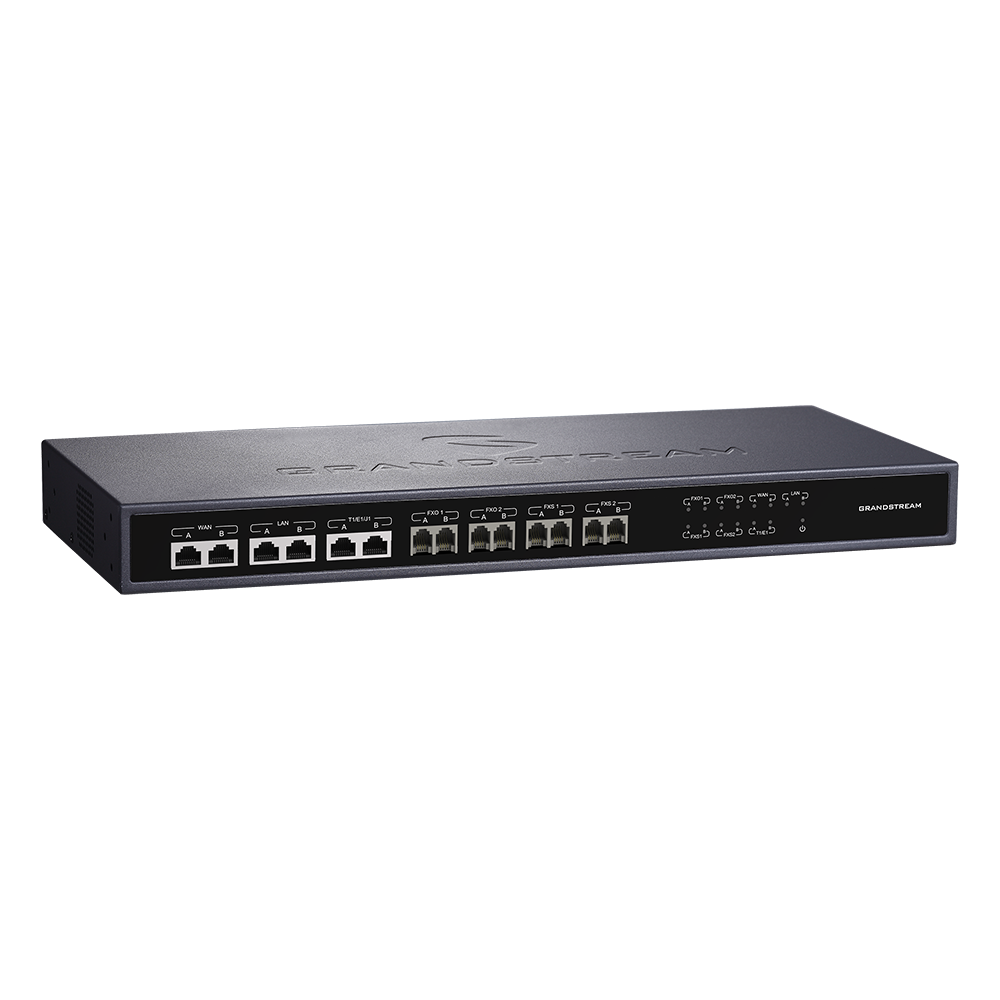

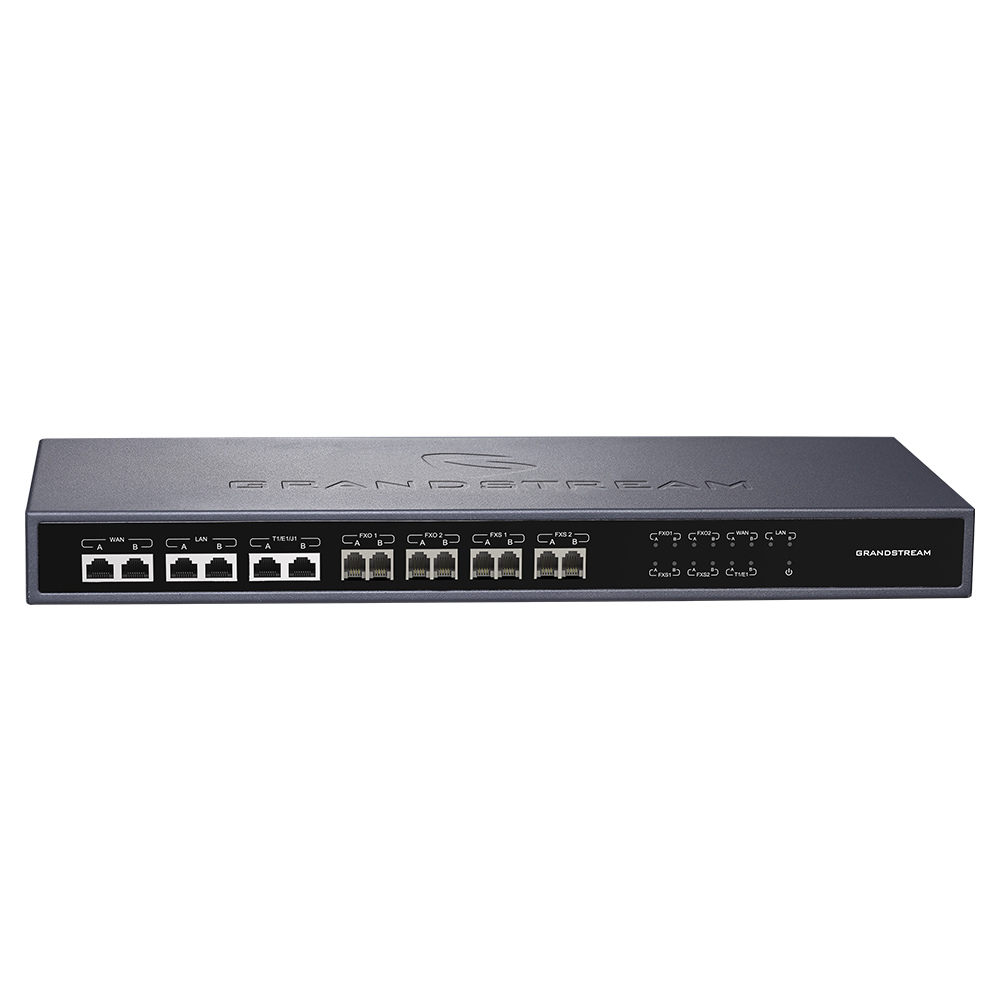

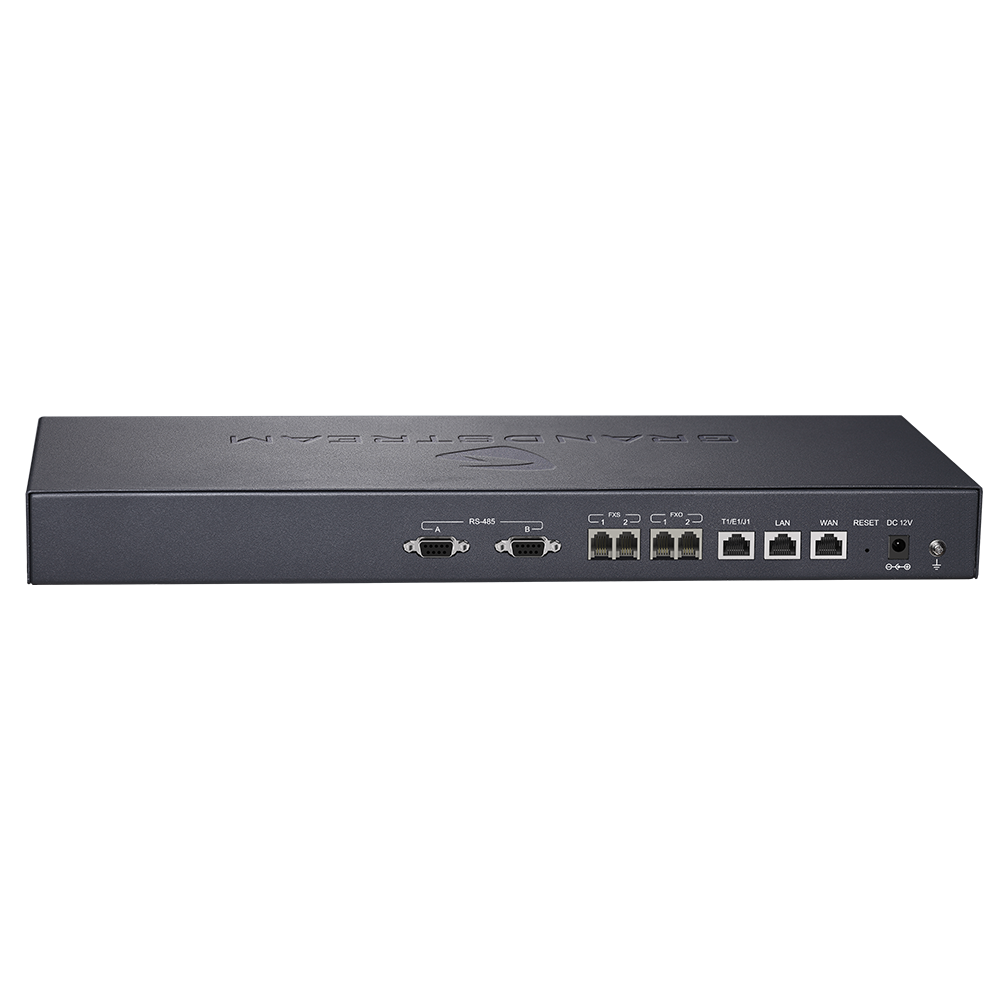

HA100

High Availability Controller for UCM6510
The HA100 offers an automated failover solution for the UCM6510 IP PBX. When connecting between two UCM6510, the HA100 constantly monitors the operation status of both UCM6510 and automatically switches the system control to the hot standby secondary UCM6510 in the event that the primary UCM6510 fails.

  • Connects and constantly monitors two UCM6510 together for high availability
  • Smart failover solution that automatically switches to a hot-standby secondary UCM6510 if the primary one fails
  • Up to 14 LED indicators showing real-time status of all of the telecom lines, network links, auxiliary devices, etc
  • Gratuitous ARP forces SIP endpoints to refresh the MAC address of the new UCM6510 without interruptions
  • Fast 10 to 50 second system switching time depending on the number of registered endpoints

Grandstream Device Management System

GDMS provides a FREE centralized interface to provision, manage, monitor and troubleshoot Grandstream products, including device management, account management, device configuration, firmware upgrades, device monitoring, intelligent alarm, and statistical analysis, individually or in batches of devices by site, group and model. This powerful cloud management platform adds robust security features to protect enterprise networks, including bank-grade TLS encryption from end-to-end, two-factor login authentication to protect your data security, two-way certificate verification and encryption of all device information. By offering a centralized, secure and zero-touch management for Grandstream endpoints, GDMS is ideal for enterprises, service providers and multi-site businesses as it allows them to easily deploy and manage large networks of Grandstream solutions. Visit gdms.cloud to sign up for free today!

Android and iOS mobile users can access the GDMS mobile app from any device by downloading for free through the app store, or get it on google play.

Sign Up
