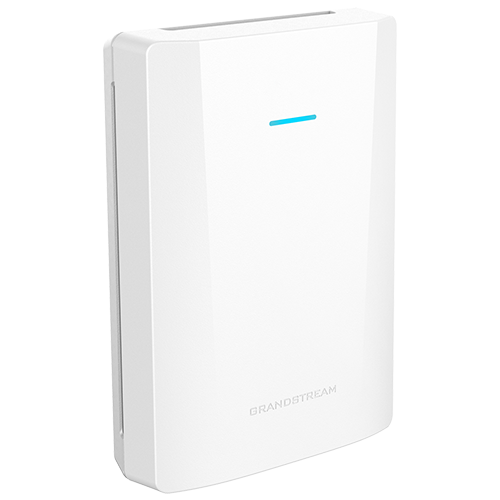

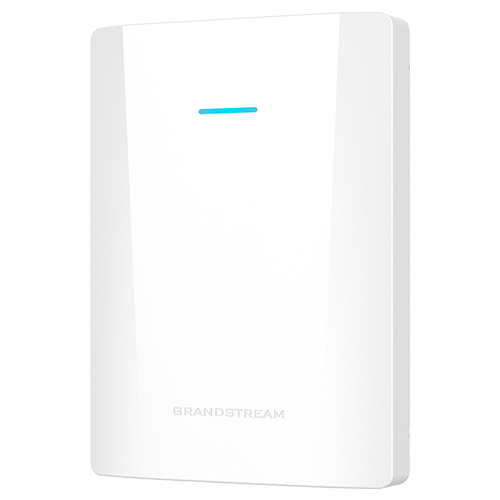

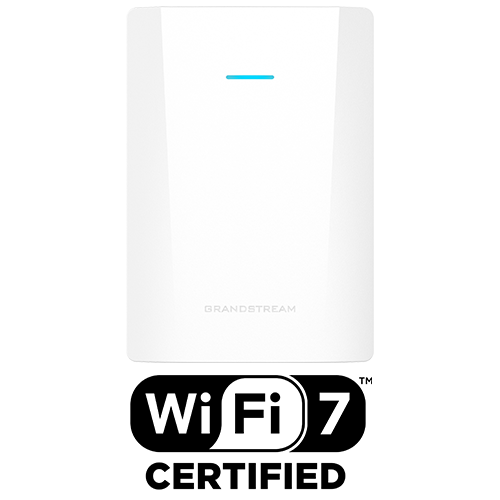

    GWN7672WM

    Wall-Mounted Tri-Band Wi-Fi 7 Access Point
    The GWN7672WM is a powerful enterprise-grade BE11000 tri-band Wi-Fi 7 access point, offering 2×2:2 MU-MIMO alongside DL/UL Enhanced OFDMA technology. It is an ideal solution for medium wireless network deployments with medium-to-high user density.

    • Features 11 Gbps aggregate wireless throughput and 5 Gbps wired throughput
    • Integrates Wi-Fi 7 Certified connectivity with tri-band 2×2:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
    • Delivers reliable connectivity across a vast 175-meter coverage range
    • Connects 384 Wi-Fi client devices simultaneously without compromising speed
    • Advanced QoS guarantees flawless performance for real-time and low-latency applications
    • Offers flexible mounting options, including junction box, in-wall, and on-wall installation
    • Enterprise-level security including anti-hacking secure boot, digital signature lockdowns for critical data, and unique Schools security certificates with random default passwords for every device
    • Supports up to 2,500 PPSK accounts for secure, individualized user access
    • Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
    Contact Sales
    Product Resources & Documentation
    Click here to view compliance resources and documentation >
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    State-of-the-Art Wi-Fi 7 Connectivity

    The GWN7672WM is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.



    Tri-Band Maximizes Speeds and Clients

    The GWN7672WM provides three bands to fully utilize spectrum resources while maximizing device support and speeds.



    Ideal for Demanding Environments

    The GWN7672WM provides speeds up to 11Gbps while supporting up to 384 clients per AP, making it an ideal solution for high-usage environments.



    High-Performance, Maximum Efficiency

    Devices can connect on multiple bands to ensure that high-priority data gets transmitted without delay while providing faster speeds through aggregation.



    Twice as Fast as Wi-Fi 6

    Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.



    Easy and Free Management

    Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

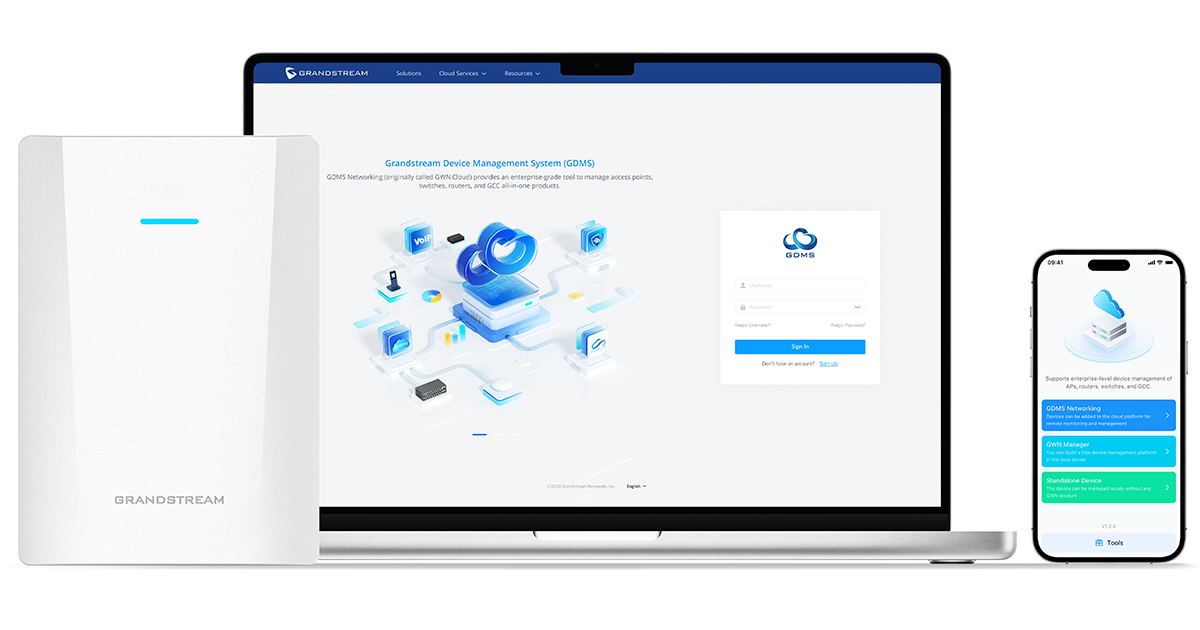

    Cloud Management





    Beyond local Web UI control, this model supports GDMS Networking, a premier cloud-based management platform. It delivers real-time monitoring, instant alerts, and in-depth statistics. Accessible from anywhere via a web browser or mobile app, GDMS Networking makes AP management across multiple locations simpler and more intuitive than ever.

    GWN7672WM Cloud Management

    Application Scenarios



    This model is purpose-built for superior indoor connectivity, delivering enterprise-grade performance for offices, retail spaces, and educational institutions.

    It creates a high-performance mobile working environment for employees in medium and large offices without sacrificing speed. For retail, it enhances the customer experience and streamlines operations by providing robust, dedicated Wi-Fi for both guests and staff. In demanding educational environments, this model helps staff and students excel with rapid, reliable wireless connections.

    GWN7672WM_FE_01

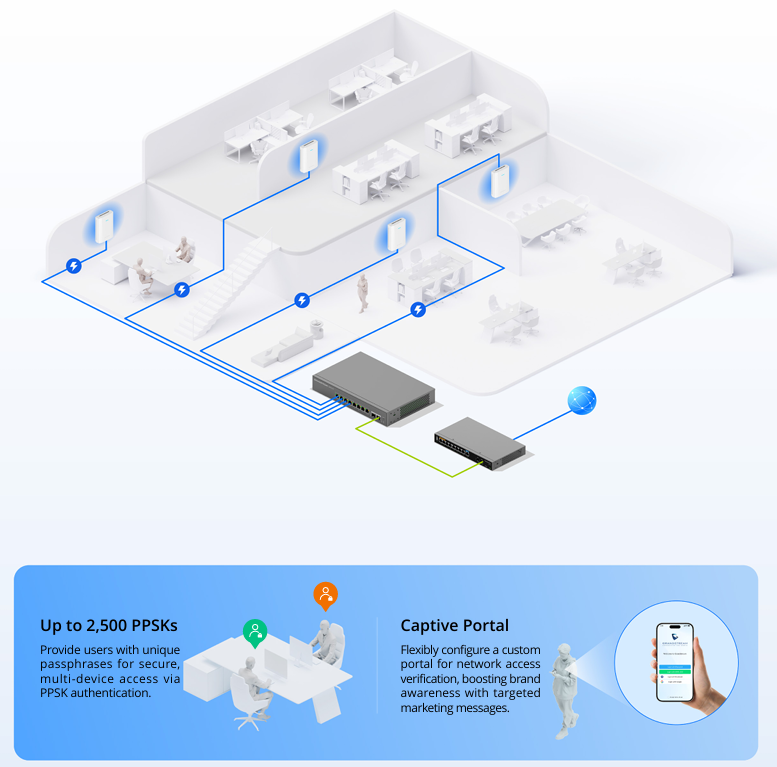

    Classic Deployment









    Engineered for effortless integration into any network environment, the GWN7672WM establishes a high-speed wired uplink to your routers and switches. Once connected, it serves as a powerful wireless hub, broadcasting a robust signal to provide high-performance Wi-Fi for all your critical client devices.

    GWN7672WM Classic Deployment

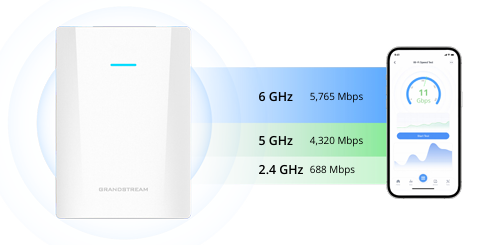

    Ultra-Fast Tri-Band Connectivity



    GWN7672WM redefines your wireless experience with the enhanced 6 GHz spectrum.

    Featuring an ultra-wide 320 MHz channel, it significantly reduces congestion to provide unparalleled stability. Integrated Multi Link Operation (MLO) technology pushes performance to a professional-grade 11 Gbps, establishing a specialized high-capacity channel tailored for high-density scenarios

    GWN7672WM Tri-Band

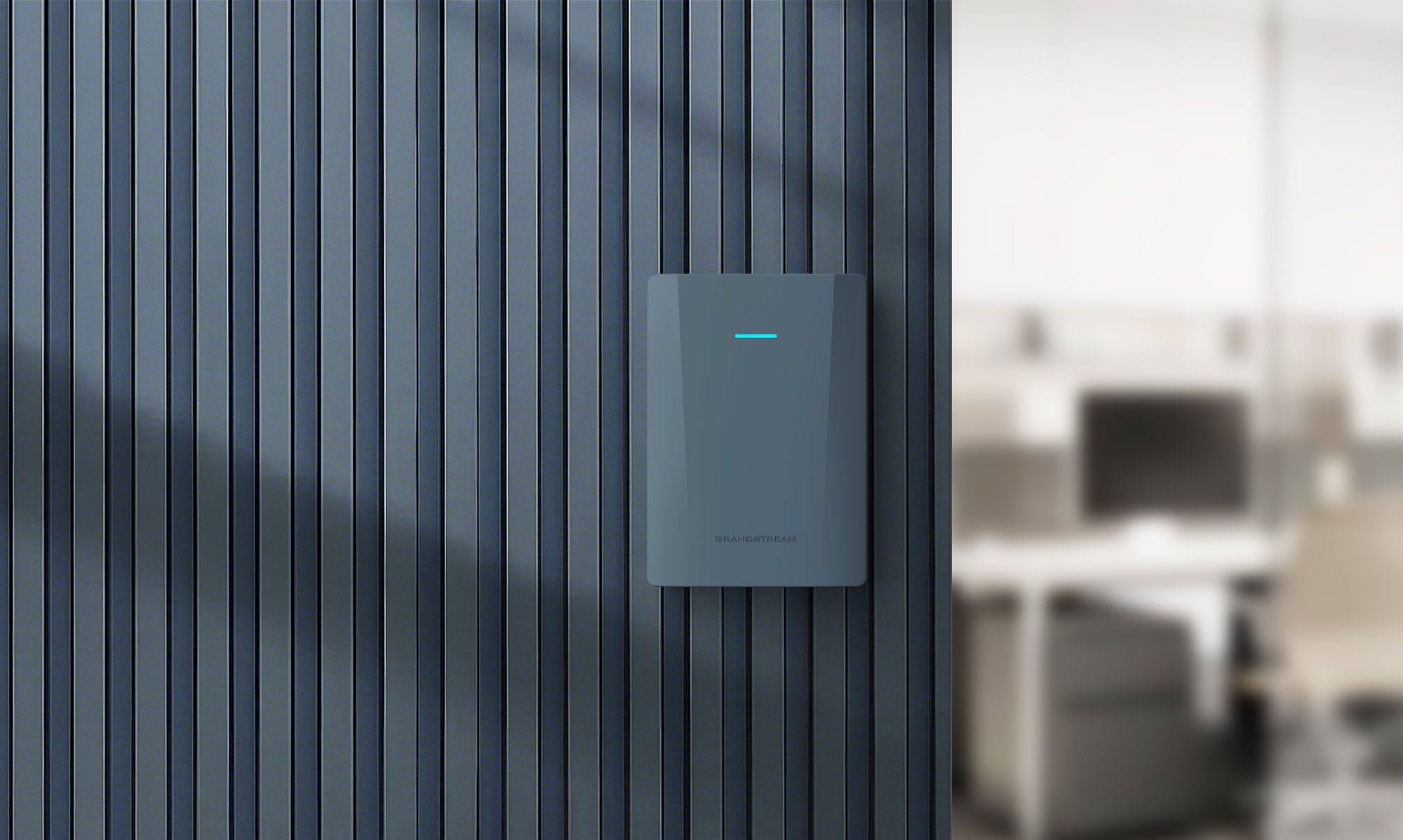

    Design and Placement Flexibility

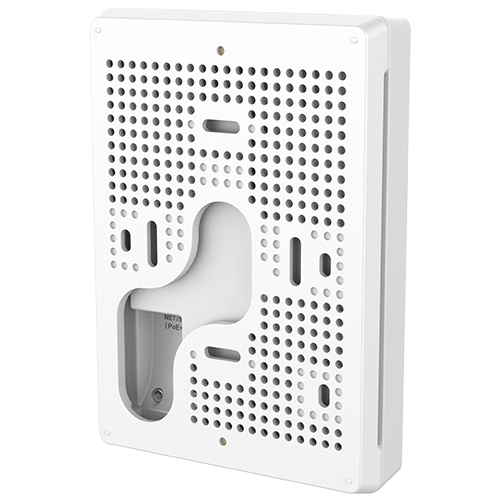

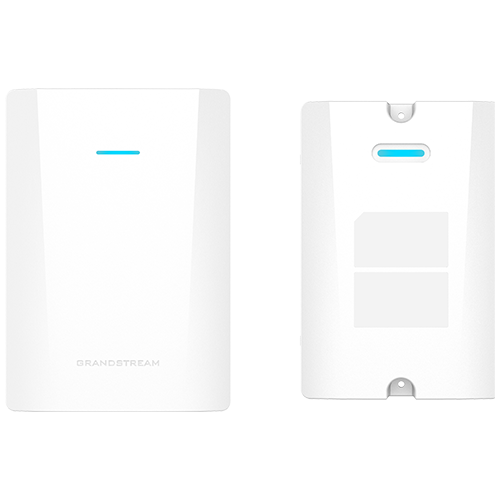

    Features a paintable front cover for a customized appearance, allowing the AP to blend seamlessly into any setting. Beyond its looks, the rugged rear shell supports diverse mounting needs—including in-wall, on-wall, and junction box installations—for a perfect fit in any environment

    GWN7672WM_FE_05

    Product Highlights

    GWN7672WM Key Deployment Scenarios

    The GWN7672WM can be deployed in various scenarios including:
    • Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
    • Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
    • Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

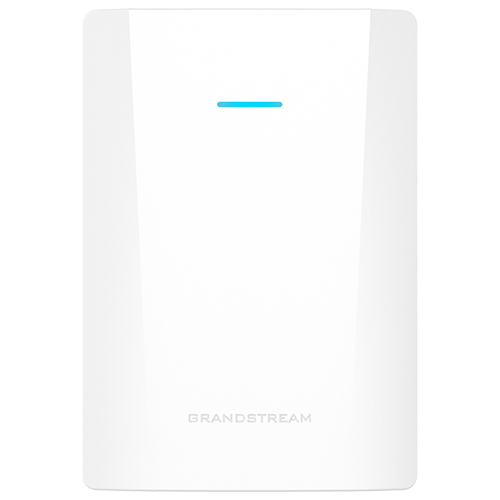

    Product Comparison

    NameGWN7672WM
    Specs
    Client Devices 384
    2.4G Throughput 688Mbps (2x2:2 MU-MIMO)
    5G Throughput 4320Mbps (2x2:2 MU-MIMO)
    6G Throughput 5765Mbps (2x2:2 MU-MIMO)
    Range Up to 175 Meters

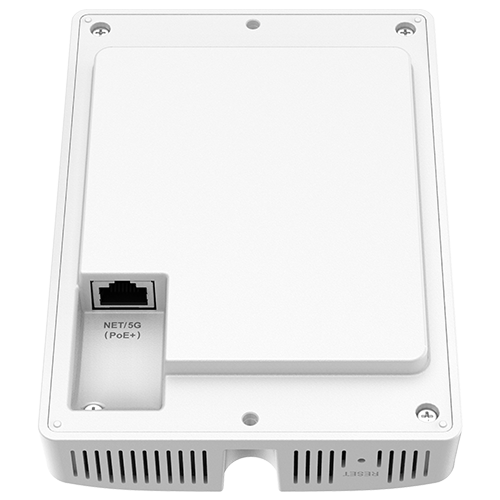

    Network Interfaces 1 × 5 GbE RJ45 port (Supports PoE Input)
    PoE/PoE+ Supports PoE 802.3at; Maximum Power Consumption: 25.5W
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
    SSIDs 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz)
    Antennas 7 single frequency antennas
    Wi-Fi and Security Systems Open System, OSEN, WPA2-PSK (Personal), WPA2-802.1x (Enterprise), WPA3-SAE (Personal), WPA3-802.1x (Enterprise), WPA3-OWE (Enhanced Open), WPA/WPA2, WPA2/WPA3, Unique Security Certificate and Random Default Password per Device, Anti-Hacking Secure Boot, Critical Data and Control Lockdown via Digital Signatures
    Dimensions 168.95 mm × 118.95 mm × 39.1 mm
    Mounting In-Wall Mount, On-Wall Mount and Junction Box Mount
