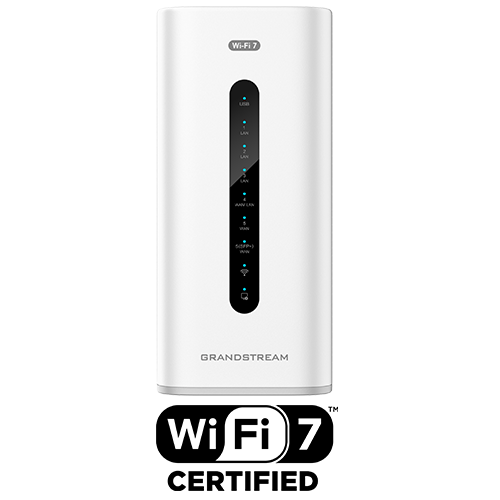

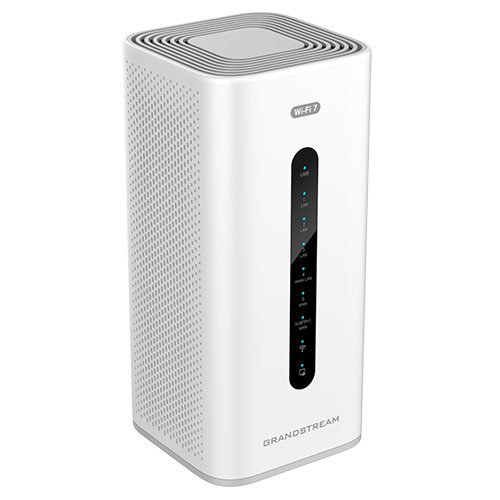

    GWN7072

    GWN Series Tri-Band Wi-Fi 7 Router
    The GWN7072 is a high-performance Wi-Fi 7 (802.11be) tri-band router built for families, SOHO, and SMBs. It is managed via a built-in web controller or centralized platforms, and it delivers 10 Gbps wired throughput.

    • Integrates Wi-Fi 7 Certified connectivity with 4K QAM, MLO, MRU, and preamble puncturing
    • Tri-band router includes 6 GHz band with 320 MHz bandwidth
    • Maximizes throughput with flexible port configurations: a 10 Gbps Combo WAN, a 2.5 Gbps WAN/LAN, and three dedicated 2.5 Gbps LAN ports
    • Comprehensive VPN services provide secure, encrypted remote access to enterprise or home network without complexity
    • Connects up to 128 Wi-Fi client devices simultaneously without compromising speed
    • Supports up to 16 mesh nodes with easy configuration and flexible expansion
    • Provides robust security features, including firewalls, URL content filtering, application control, firmware upgrades, and secure boot based on digital signatures
    • A versatile USB port supports mobile dongle dial-up, network printing, and convenient storage sharing to meet the diverse needs of modern offices and smart homes
    • Besides the intuitive local Web UI, you can manage your router via GDMS, GWN Manager, the GWN app, and the Grandstream Home app for centralized management
    Contact Sales
    Product Resources & Documentation
    Click here to view compliance resources and documentation >
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...

    Free Network Management Options

    gdms-networking-thumbnail

    GDMS Networking

    GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

    GDMS Networking
    gwn-manager-thumbnail-2

    GWN Manager

    GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

    GWN Manager
    embedded_controller_thumbnail

    Embedded Controller

    Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

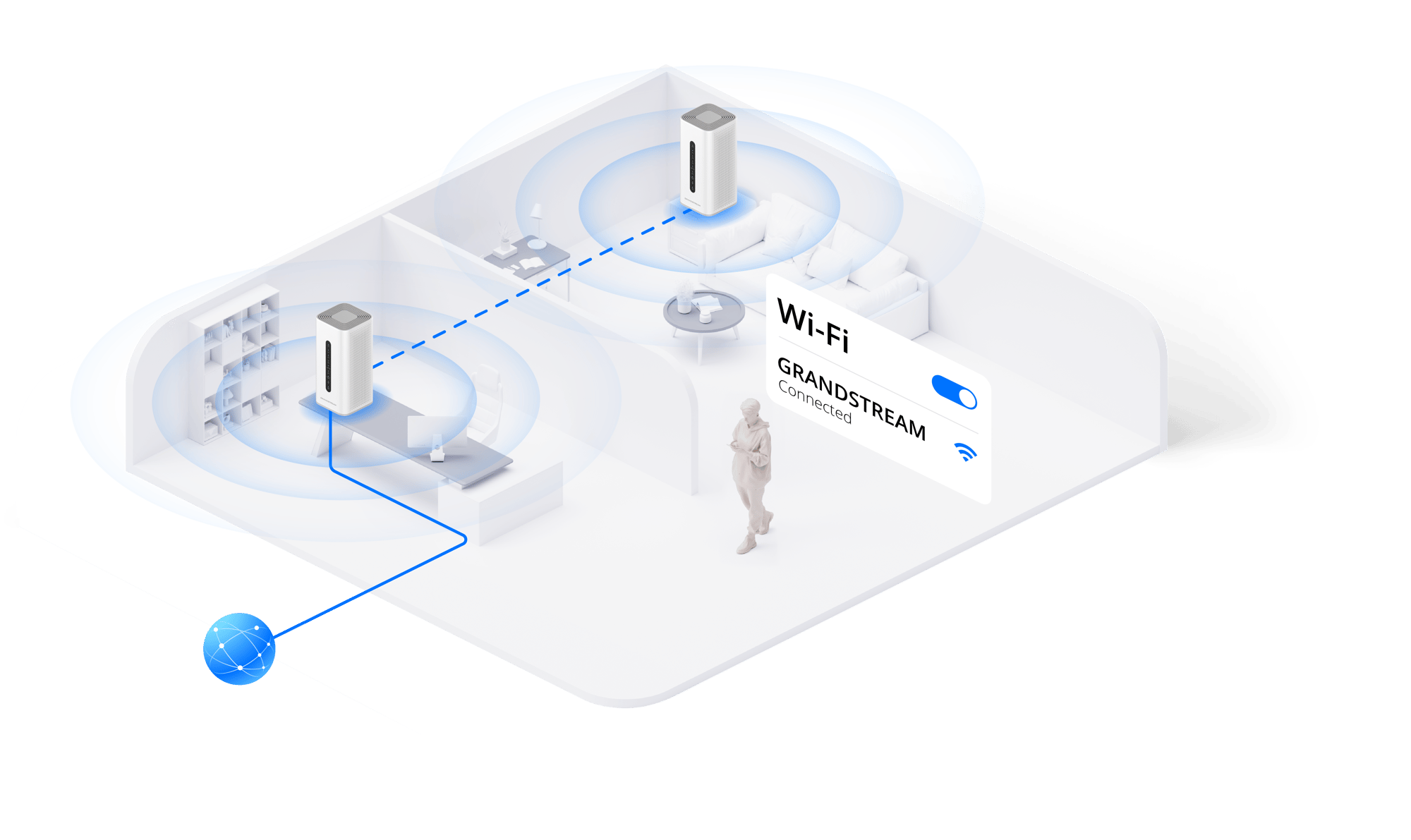

    Seamless MESH Networking





     The intelligent mesh technology enables seamless roaming and expansive coverage across your entire office or home, ensuring a rock-solid connection while eliminating frustrating signal blind spots.

    GWN7072_FE_01

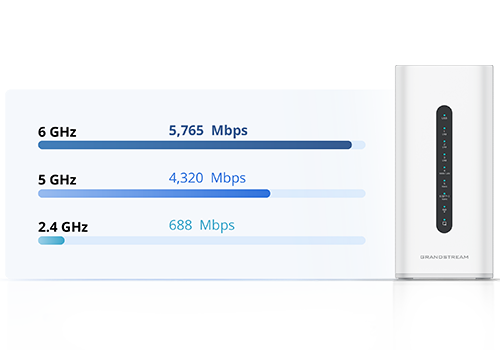

    Ultra-Fast Tri-Band Connectivity





    By utilizing the 2.4 GHz, 5 GHz, and the ultra-wide 6 GHz bands, this model effectively eliminates signal interference and congestion, delivering an aggregate Wi-Fi speed of up to 11 Gbps for seamless 4K or 8K streaming, online gaming, and video conferencing.

    Tri-Band Image

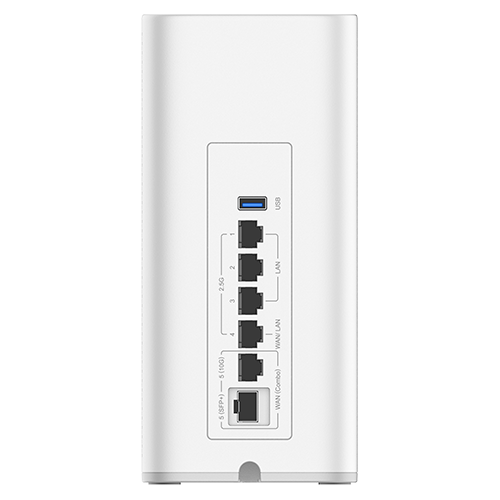

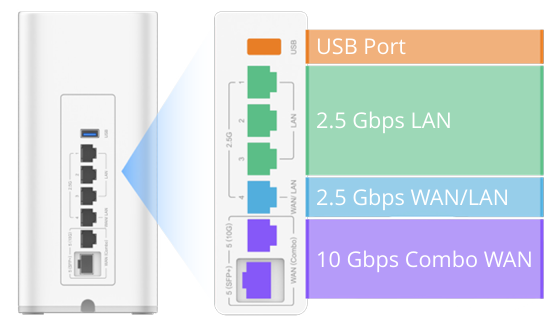

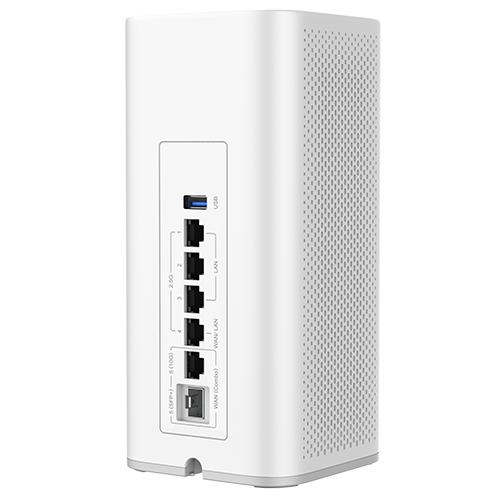

    Versatile Port Configuration



    A comprehensive port configuration eliminates bottlenecks and maximizes network throughput. Engineered for ultimate flexibility, this interface features a lightning-fast 10 Gbps Combo WAN port, a 2.5 Gbps WAN/LAN port, and three dedicated 2.5 Gbps LAN ports for users. Additionally, a versatile USB port provides expanded utility for convenient storage sharing, network printing, and USB WAN connectivity.

    Port Configuration

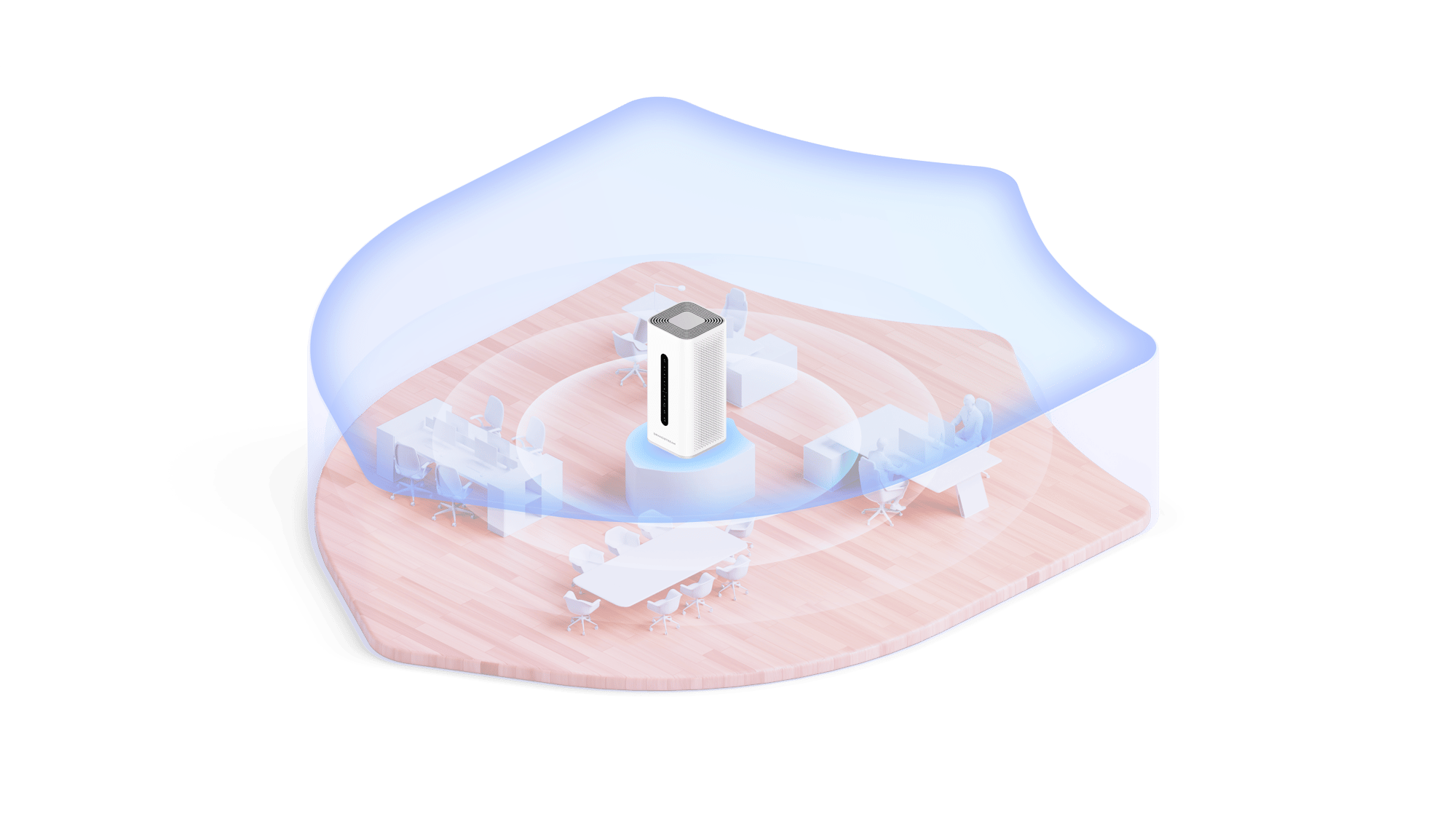

    Reliable Security Performance



    Our robust security suite combines content filtering and comprehensive firewalls with enterprise-level encryption, strengthening your network's defenses against evolving cyber threats and unauthorized access.

    • Firewall

    • Content Filter (App Control, DPI Technology)

    • Security Defense

    GWN7072_FE_04

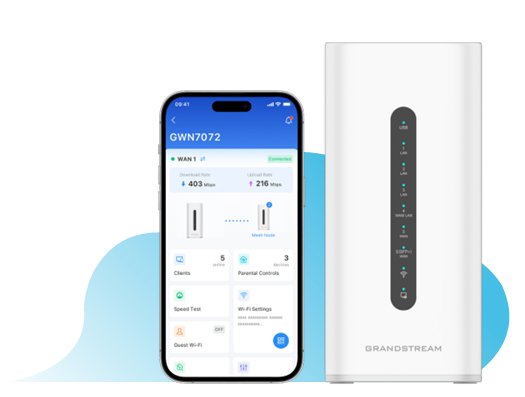

    Intelligent Network Management







    While the router is in Home Mode, the Grandstream Home app allows you to view network status and safeguard your family with advanced parental controls, intelligent detection, and one-touch device upgrades.

    Network Management

    Product Highlights

    GWN7052F and GWN7062 Sales Kit

    Our sales kit is a great place to begin learning about the GWN7052F and GWN7062 Wi-Fi routers. This is also a go-to resource for providing to potential clients to help them understand the benefits of these devices. Through the sales kit you'll find:

    • Overview information about the GWN7052F and GWN7062, including product positioning, technical comparisons, and key features
    • Competitive differentiators that outline the devices' market-leading features, including Wi-Fi 6 capabilities, affordability, VPN settings, client configurations, and more
    • Deployment scenarios and a Grandstream integration diagram to help you easily understand the use cases of the devices

    Download the Sales Kit PDF

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

    Product Comparison

    NameGWN7072
    Specs
    Memory and NAT Sessions 64K NAT Sessions
    NAT Routing & IPSec VPN Performance 10Gbps NAT routing and 1.2Gbps IPSec VPN performance
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
    Network Interfaces 1x 10GbE Combo WAN port (SFP+ or RJ45), 1x 2.5GbE Autosensing WAN/LAN port, 3x 2.5GbE LAN ports, and 1x USB 3.0 port
    Network Protocols N/A
    PoE Output N/A
    QoS Support 8 queues with multiple traffic priority and bandwidth, APP QoS, QoS rules
    Firewall DoS attack defense, Blocklist
    VPN

    Supports up to 50 VPN tunnels:
    • L2TP Client
    • PPTP Client
    • IPSec Site-to-Site & Client-to-Site
    • OpenVPN® Server
    • WireGuard® Site-to-Site & Peer-to-Site

    • SSL VPN
