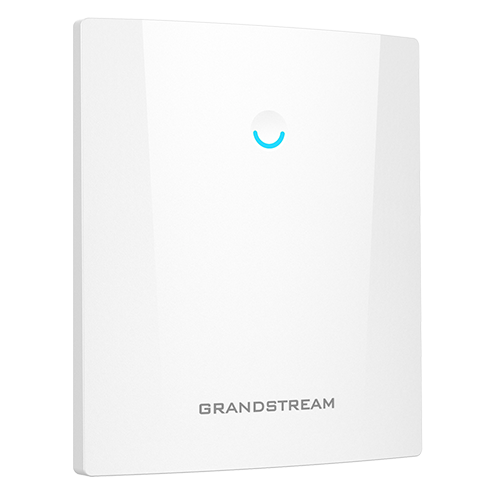

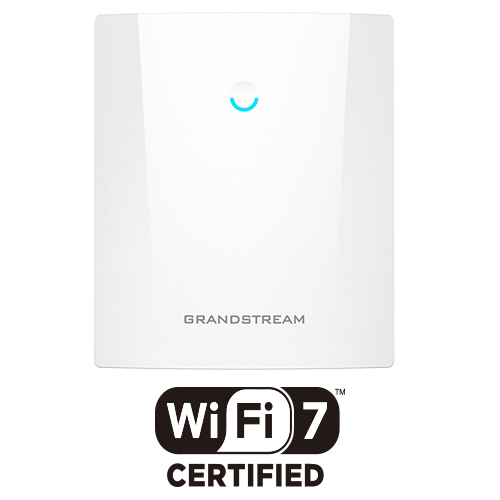

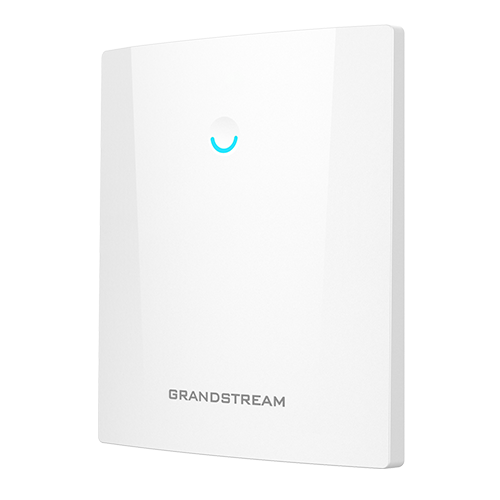

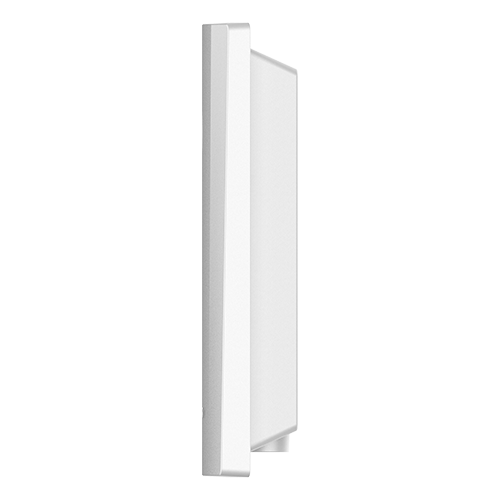

    GWN7670ELR

    Long-Range Dual-Band Wi-Fi 7 Access Point
    The GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses and features advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA. It is an ideal solution for multi-floor offices, warehouses, parks, hospitals, schools, and more.

    • Features 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
    • Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
    • Delivers reliable connectivity across a vast 350-meter coverage range
    • The SFP port delivers rock-solid optical transmission across distances of up to 20 km
    • Connects 512 Wi-Fi client devices simultaneously without compromising speed
    • Supports up to 1,000 PPSK accounts for secure, individualized user access
    • Xtra Range 2.0 technology on the 5 GHz band enhances signal penetration and network coverage
    • Engineered to withstand harsh outdoor environments with a certified IP67 rating
    • Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
    Contact Sales
    Product Resources & Documentation
    Click here to view compliance resources and documentation >
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    State-of-the-Art Wi-Fi 7 Connectivity

    The GWN7670ELR is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.



    Ideal for Medium-Scale and High-Density Environments

    The GWN7670ELR provides speeds up to 3.6Gbps while supporting up to 512 clients per AP, making it an ideal solution for for medium-scale, high-density wireless environments.



    High-Performance, Maximum Efficiency

    Devices can connect on multiple bands to ensure that high-priority data gets transmitted without delay while providing faster speeds through aggregation.



    Twice as Fast as Wi-Fi 6

    Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.



    Easy and Free Management

    Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

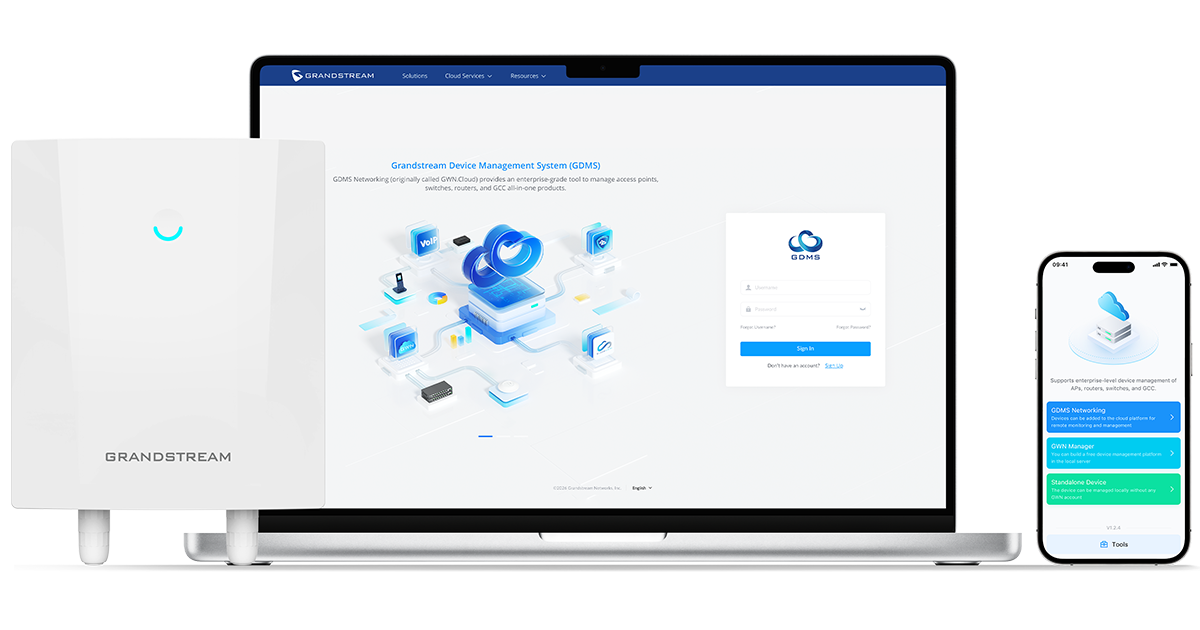

    Flexible Management





    Beyond local Web UI control, this model supports GDMS Networking, a premier cloud-based management platform. It delivers real-time monitoring, instant alerts, and in-depth statistics. Accessible from anywhere via a web browser or mobile app, GDMS Networking makes AP management across multiple locations simpler and more intuitive than ever.

    GWN7670ELR_Flexible Management

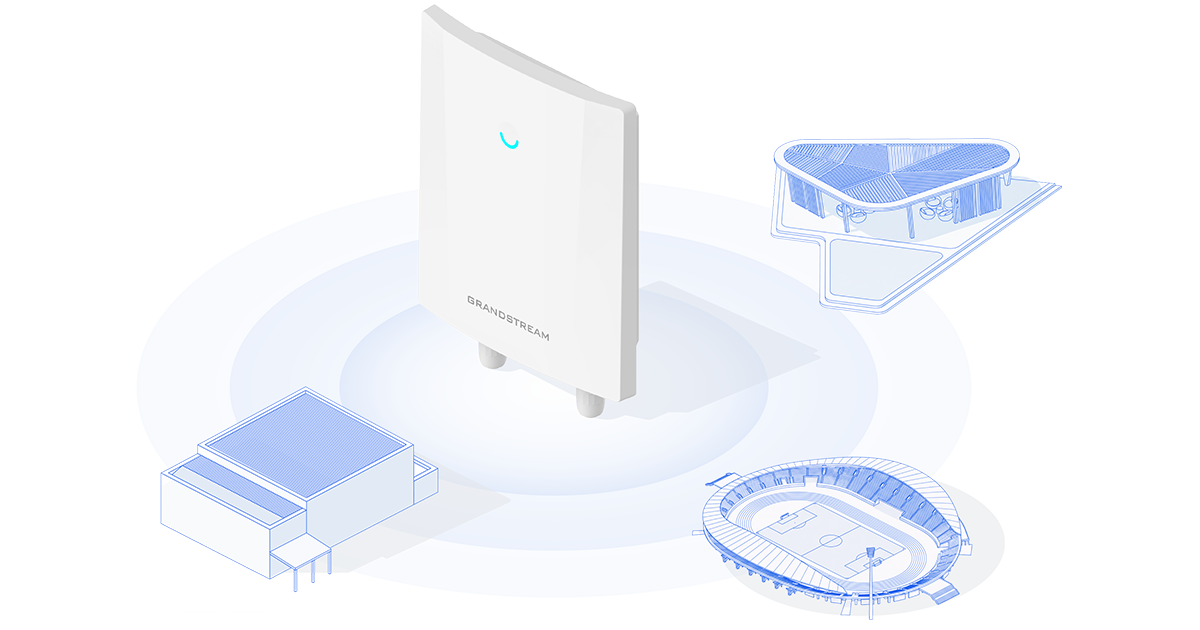

    Application Scenarios



    This model is purpose-built for superior outdoor connectivity with its IP67 rating, delivering enterprise-grade performance for stadiums, warehouses, and parks.

    Its omnidirectional antennas provide seamless 360° coverage in high-density venues like stadiums, eliminating the need for complex adjustments. For industrial zones, its rugged design ensures reliable connectivity in warehouse loading docks and parking lots. Additionally, this easily pole-mounted model provides visitors with fast, stable public Wi-Fi throughout park grounds.

    GWN7670ELR_Application Scenarios

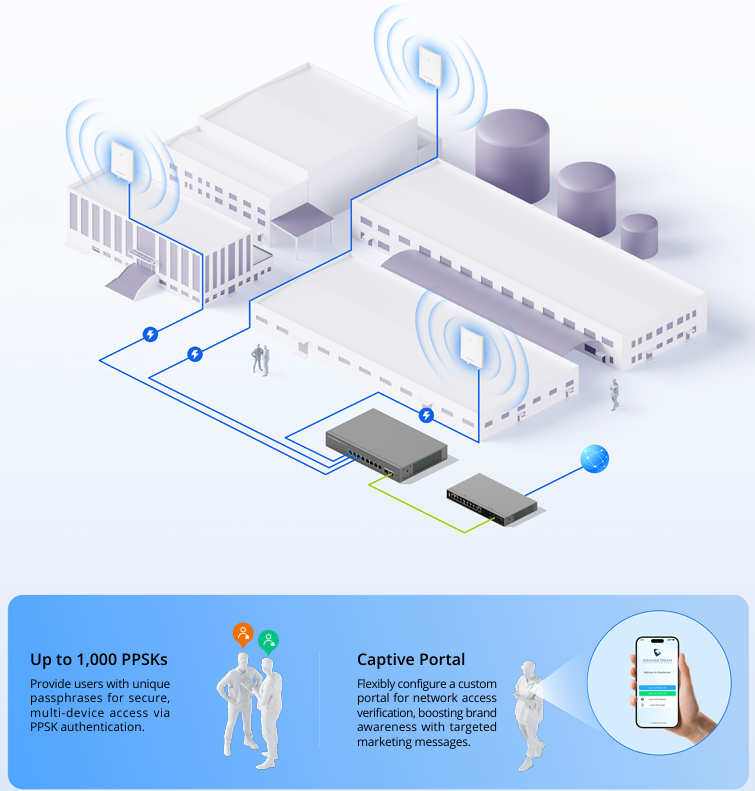

    Classic Deployment











    Engineered for effortless integration into any network environment, the GWN7670ELR establishes a high-speed wired uplink to your routers and switches. Once connected, it serves as a powerful wireless hub, broadcasting a robust signal to provide high performance Wi-Fi for all your critical client devices. Whether mounted on a post or wall outdoors, it acts as the perfect bridge between your core infrastructure and your mobile workforce

    Classic Deployment GWN7670ELR

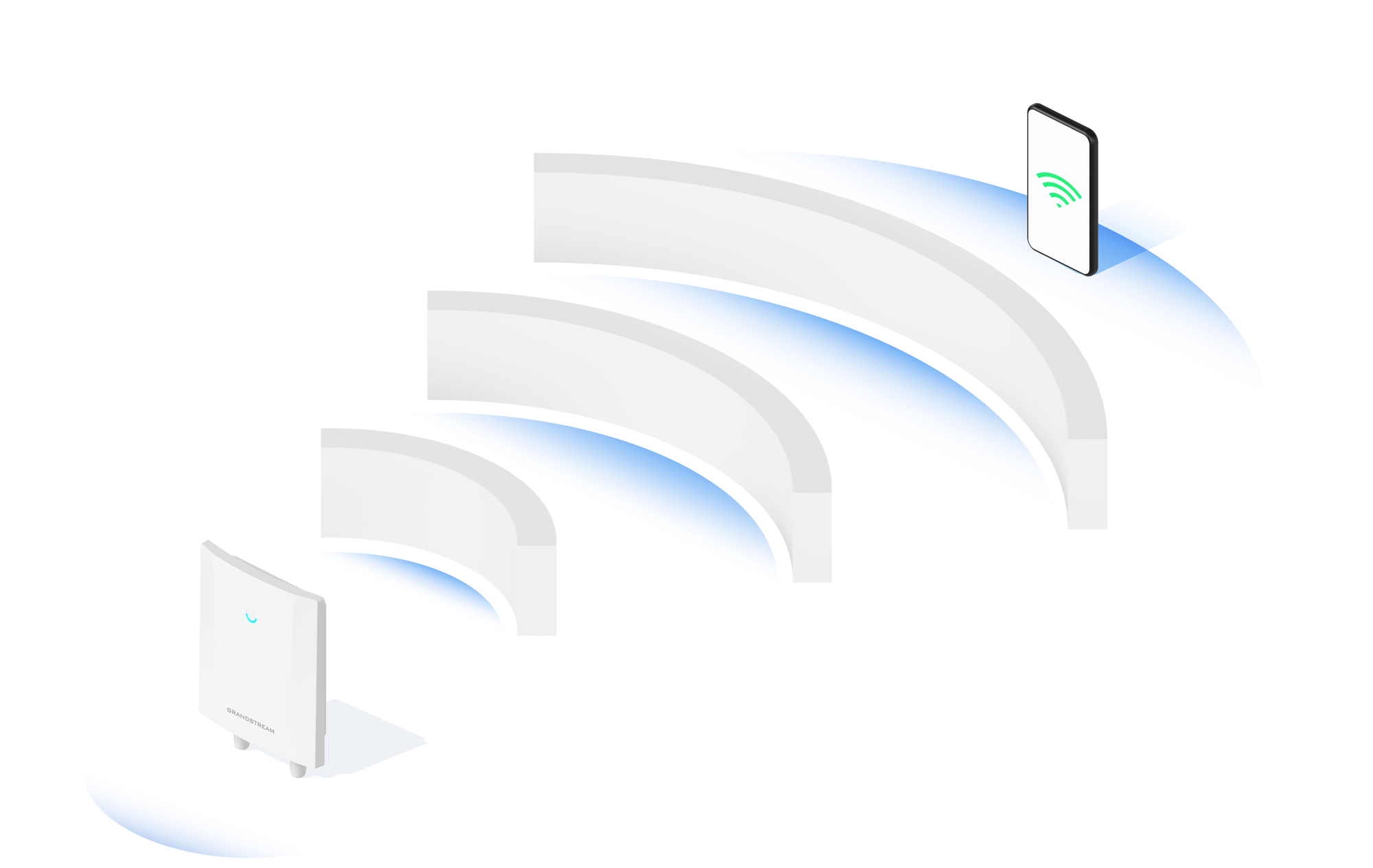

    Superior RF Performance





     By combining a high-gain 5 GHz antenna with cutting-edge Xtra Range 2.0 technology, this model delivers superior signal penetration that effortlessly reaches through walls and ensures seamless edge-to-edge coverage.

    This synergy guarantees a vastly expanded reach and rock-solid stability, maintaining a flawless connection even at long distances or through multiple obstructions.

    GWN7670ELR_FE_07

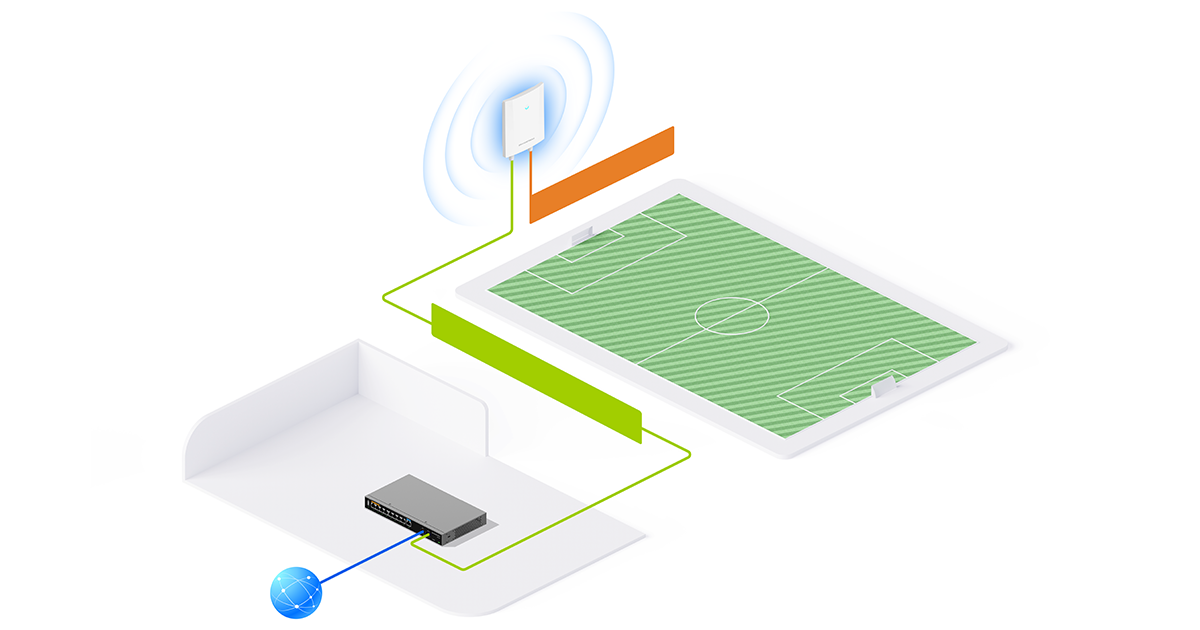

    SFP Port for Long-Range Transmission



    In addition to traditional copper cabling, this AP supports single-mode and multi-mode fiber cabling. You can insert an SFP module to transmit signals to AP deployment areas at a distance of up to 20 km via single-mode fiber cable, shattering the distance constraints of standard copper wiring.

    In this configuration, the SFP port exclusively manages high-speed data transmission over long distances, while the 2.5 GbE port receives PoE power. This dual-link approach offers an incredibly flexible, robust, and reliable solution for achieving seamless wireless coverage across expansive environments.

    GWN7670ELR_SFP Port

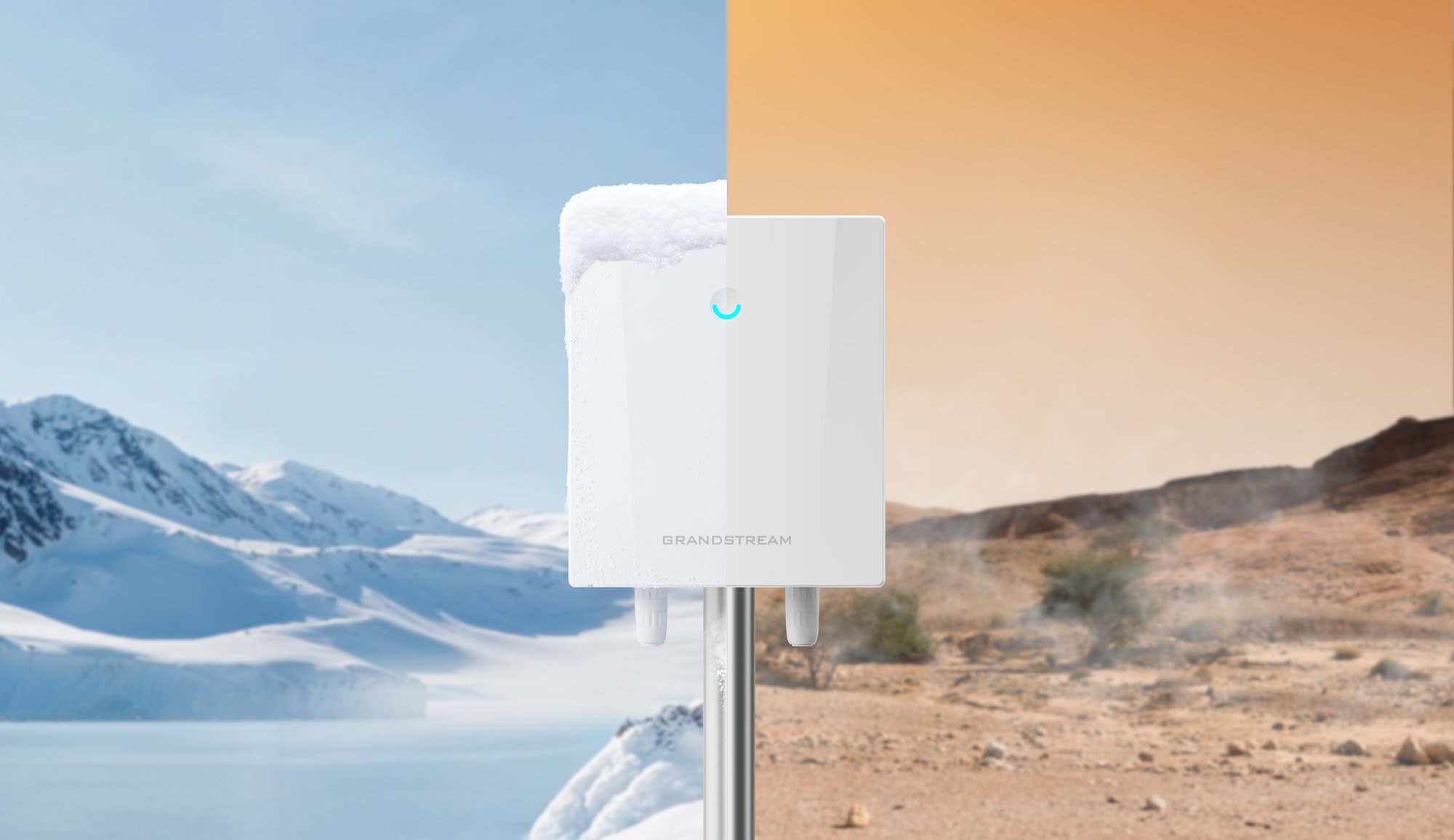

    Excellent Outdoor Protection






    Engineered with a rugged IP67 rating, this model is built to thrive in the harsh environments. From high-altitude regions to extreme temperatures ranging from -30 °C to 60 °C (-22 °F to 140 °F) and even intense sandstorms, it ensures rock-solid stability when it matters most.

    GWN7670ELR_FE_06

    Product Highlights

    GWN7670ELR Key Deployment Scenarios

    The GWN7670ELR can be deployed in various scenarios including:
    • Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
    • Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
    • Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

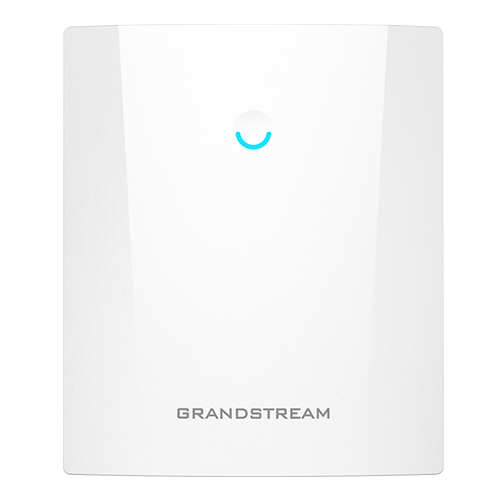

    Product Comparison

    NameGWN7670ELR
    Specs
    Client Devices 512
    Range 350 Meters

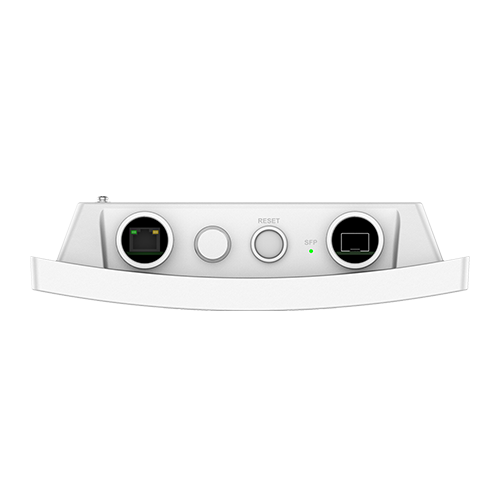

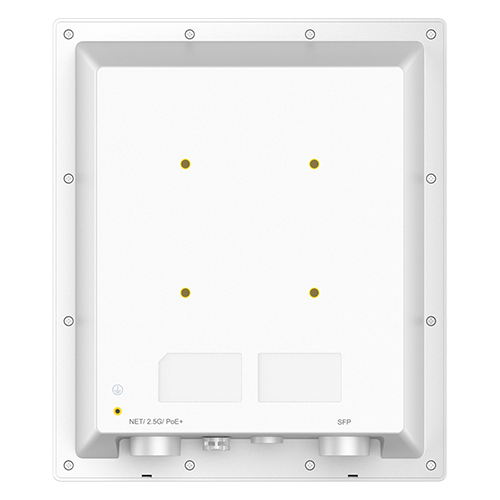

    Network Interfaces 1× 2.5 GbE RJ45 port (Supports PoE Input), 1× SFP port
    PoE/PoE+ Supports PoE 802.3at; Maximum Power Consumption: 16W
    2.4G Throughput 688Mbps (2x2:2 MU-MIMO)
    5G Throughput 2882Mbps (3x3:2 MU-MIMO)
    Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax/be
    SSIDs 32 SSIDs total, 16 per radio
    Antennas 5 single-frequency antennas
    Wi-Fi and Security Systems Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules, Rogue AP detection and containment, ARP attack defense, ND attack defense
    Dimensions 270mm × 230mm × 57mm

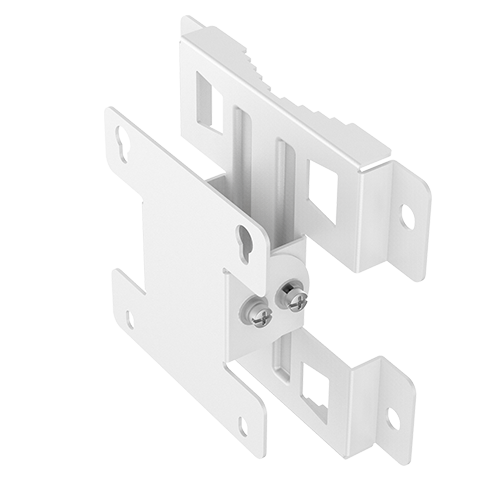

    Mounting Wall mount or pole mount, kits included
