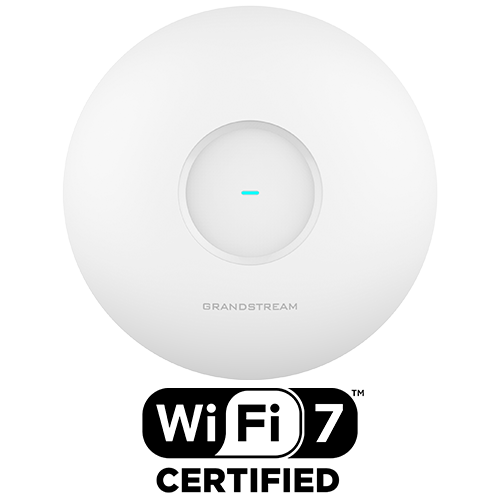

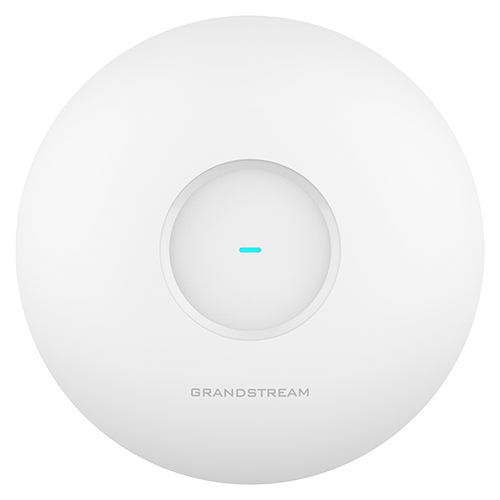

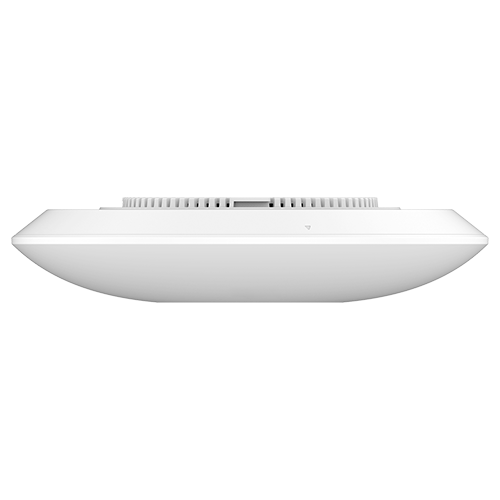

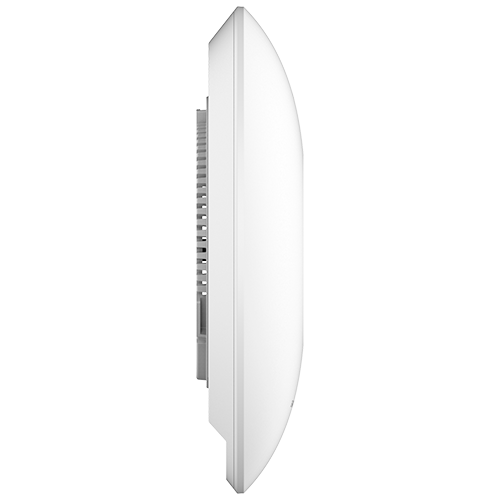

    GWN7673

    Dual-Band Wi-Fi 7 Access Point
    The GWN7673 is a powerful enterprise-grade BE5000 Wi-Fi 7 access point engineered with advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:3 MU-MIMO plus DL/UL OFDMA technology. It is an ideal solution for medium-scale, high-density wireless environments.

    • Features 5 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
    • Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:3 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
    • Delivers reliable connectivity across a vast 175-meter coverage range
    • Connects 512 Wi-Fi client devices simultaneously without compromising speed
    • Supports up to 1,000 PPSK accounts for secure, individualized user access
    • Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
    Contact Sales
    Product Resources & Documentation
    Click here to view compliance resources and documentation >
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    State-of-the-Art Wi-Fi 7 Connectivity

    The GWN7673 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.



    Ideal for Medium-Scale and High-Density Environments

    The GWN7673 provides speeds up to 5Gbps while supporting up to 512 clients per AP, making it an ideal solution for for medium-scale, high-density wireless environments.



    High-Performance, Maximum Efficiency

    Devices can connect on multiple bands to ensure that high-priority data gets transmitted without delay while providing faster speeds through aggregation.



    Twice as Fast as Wi-Fi 6

    Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.



    Easy and Free Management

    Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

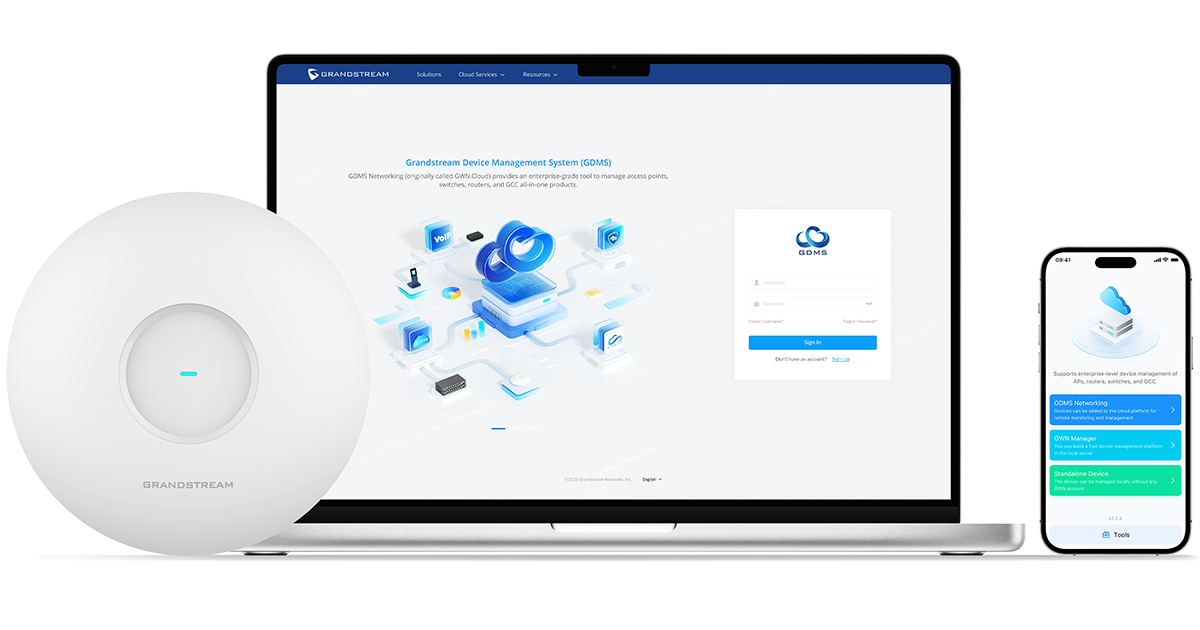

    Flexible Management





    Beyond local Web UI control, this model supports GDMS Networking, a premier cloud-based management platform. It delivers real-time monitoring, instant alerts, and in-depth statistics. Accessible from anywhere via a web browser or mobile app, GDMS Networking makes AP management across multiple locations simpler and more intuitive than ever.

    GWN7673_Cloud Management
    Application Scenarios



    This model is purpose-built for superior indoor connectivity, delivering enterprise-grade performance for offices, retail spaces, and educational institutions.

    It creates a high-performance mobile working environment for employees in medium and large offices without sacrificing speed. For retail, it enhances the customer experience and streamlines operations by providing robust, dedicated Wi-Fi for both guests and staff. In demanding educational environments, this model helps staff and students excel with rapid, reliable wireless connections.

    GWN7673_FE_01

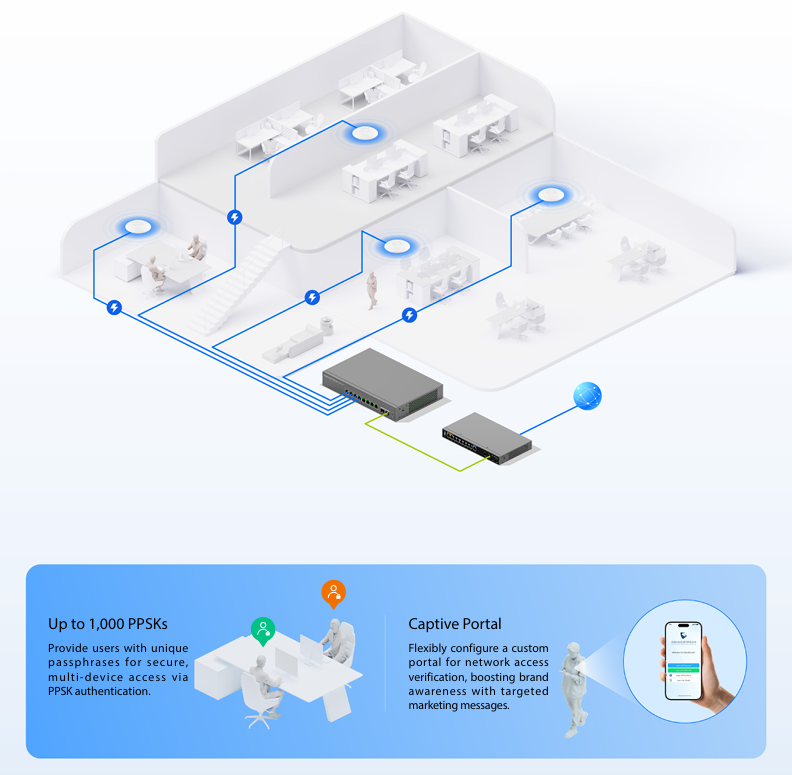

    Classic Deployment











    Engineered for effortless integration into any network environment, the GWN7673 establishes a high-speed wired uplink to your routers and switches. Once connected, it serves as a powerful wireless hub, broadcasting a robust signal to deliver high-performance Wi-Fi to all your critical client devices.

    Screenshot 2026-08-10 113850

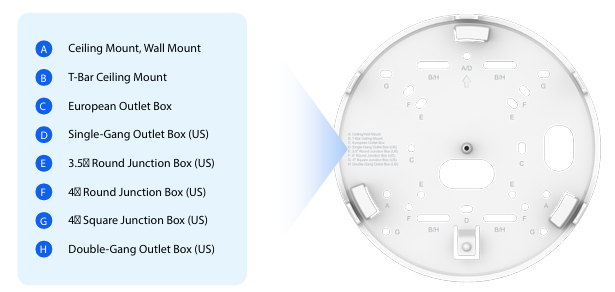

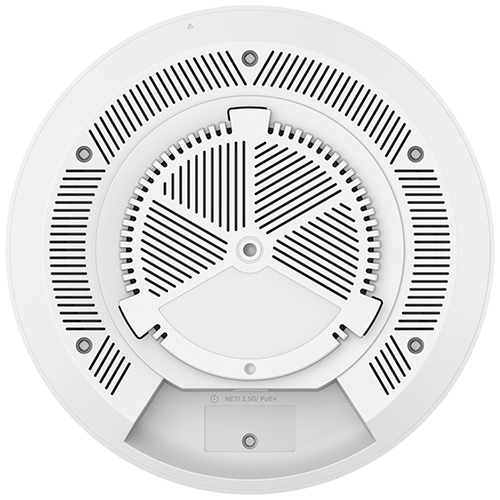

    Flexible Mounting Options





    Engineered for total deployment flexibility, the versatile multi-pattern bracket ensures a seamless installation experience - whether you're mounting on walls, ceilings, or various standard junction boxes.

    Screenshot 2026-08-10 114447

    Product Highlights

    GWN7673 Key Deployment Scenarios

    The GWN7673 can be deployed in various scenarios including:
    • Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
    • Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
    • Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

    Product Comparison

    NameGWN7673
    Specs
    Client Devices 512
    2.4G Throughput 688Mbps (2x2:2 MU-MIMO)
    5G Throughput 4323Mbps (3x3:3 MU-MIMO)
    6G Throughput N/A
    Range Up to 175 Meters

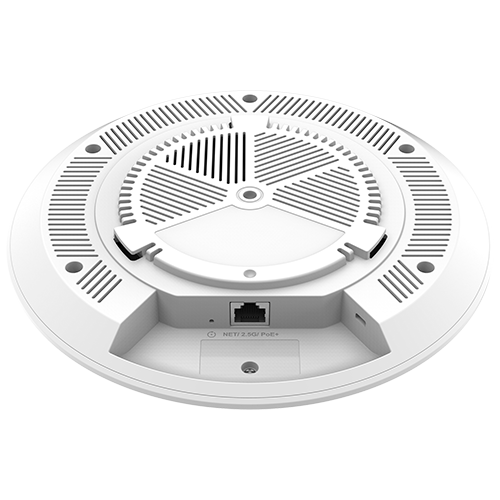

    Network Interfaces 1 × 2.5 GbE RJ45 port (Supports PoE Input)
    PoE/PoE+ Supports PoE 802.3at/af; Maximum Power Consumption: 16W
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
    SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
    Antennas 5 single frequency antennas
    Wi-Fi and Security Systems Open System, OSEN, WPA2-PSK (Personal), WPA2-802.1x (Enterprise), WPA3-SAE (Personal), WPA3-802.1x (Enterprise), WPA3-OWE (Enhanced Open), WPA/WPA2, WPA2/WPA3, Unique Security Certificate and Random Default Password per Device, Anti-Hacking Secure Boot, Critical Data and Control Lockdown via Digital Signatures
    Dimensions Ø220 mm × 48.5 mm
    Mounting Indoor Wall Mount, Ceiling Mount, and Junction Box Mount
