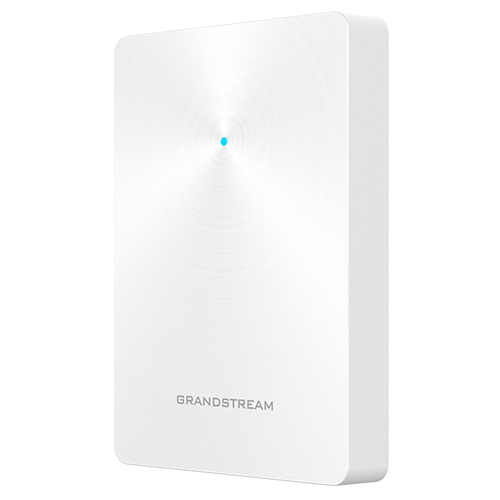

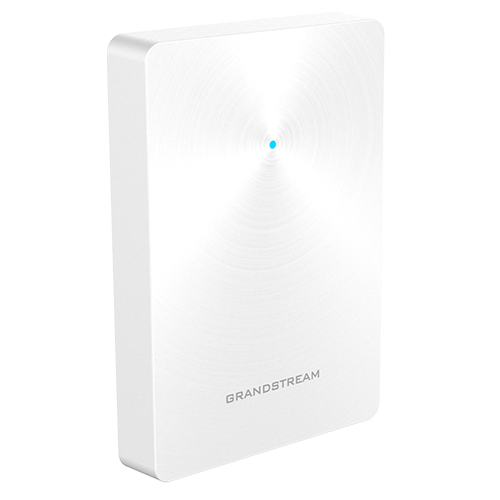

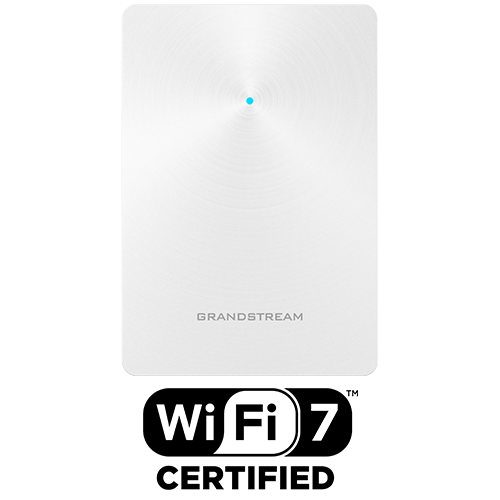

    GWN7671

    Wall-Mounted Dual-Band Wi-Fi 7 Access Point
    The GWN7671 is a wall-mounted dual-band Wi-Fi 7 BE3600 access point designed for small-to-medium businesses. Engineered with advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA technology, it delivers exceptional throughput and expansive coverage.

    • Features 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
    • Built-in PoE output capabilities streamline deployment by directly powering essential endpoints like IP phones and security cameras
    • Delivers reliable connectivity across a vast 175-meter coverage range
    • Xtra Range 2.0 technology on the 5 GHz band enhances signal penetration and network coverage
    • Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
    • Connects up to 256 Wi-Fi client devices simultaneously without compromising speed
    Contact Sales
    Product Resources & Documentation
    Click here to view compliance resources and documentation >
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...
    ...



    State-of-the-Art Wi-Fi 7 Connectivity

    The GWN7671 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.



    Ideal for Demanding Environments

    The GWN7671 provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it an ideal solution for high-usage environments.



    High-Performance, Maximum Efficiency

    Devices can connect on multiple bands to ensure that high-priority data gets transmitted without delay while providing faster speeds through aggregation.



    Twice as Fast as Wi-Fi 6

    Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.



    Easy and Free Management

    Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

    Cloud Management





    Beyond local Web UI control, this model supports GDMS Networking, a premier cloud-based management platform. It delivers real-time monitoring, instant alerts, and in-depth statistics. Accessible from anywhere via a web browser or mobile app, GDMS Networking makes AP management across multiple locations simpler and more intuitive than ever.

    Cloud Management GWN7671

    Application Scenarios

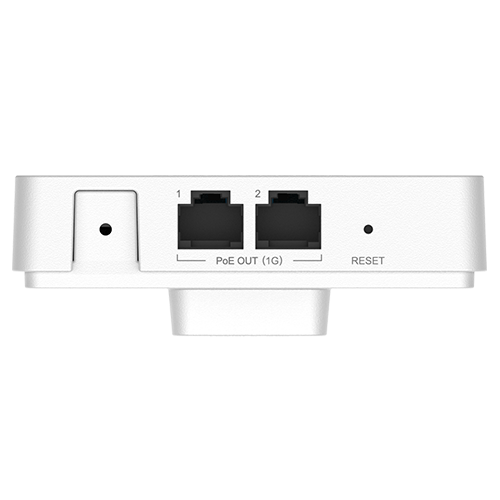

    Engineered for hotels, apartments, and modern office environments, this wall-mounted GWN7671 combines high-performance wireless coverage with smart hardware integration. Featuring two PoE OUT ports, it delivers reliable connectivity to employees and guests while directly powering essential desktop devices, such as IP phones, printers, and cameras, straight through the network cables. It ensures a streamlined installation that drastically reduces cabling infrastructure costs and keeps workspace clean and professional

    Application Scenarios - GWN7671

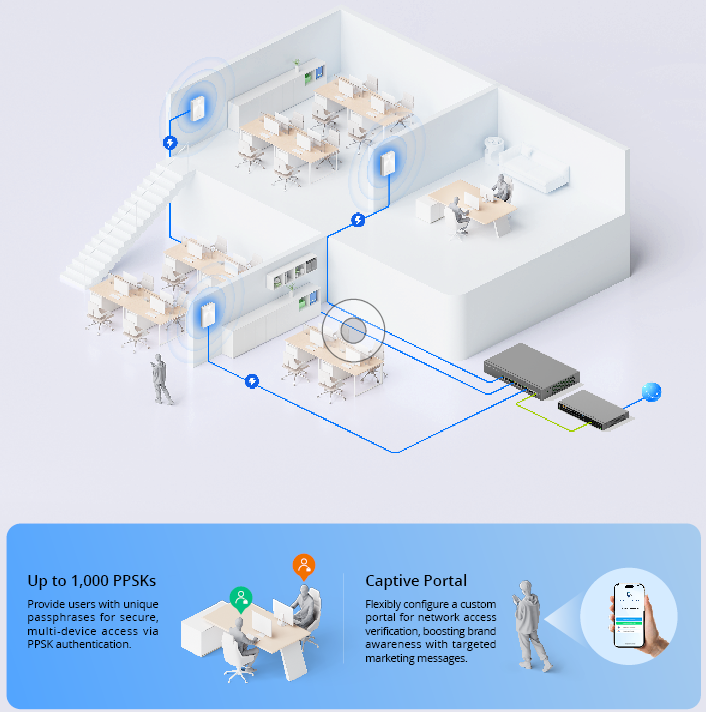

    Standard Deployment











    Engineered for effortless integration into any network environment, the GWN7671 establishes a high-speed wired uplink to your routers and switches. Once connected, it serves as a powerful wireless hub, broadcasting a robust signal to provide high-performance Wi-Fi for all your critical client devices

    Standard Deployment - GWN7671

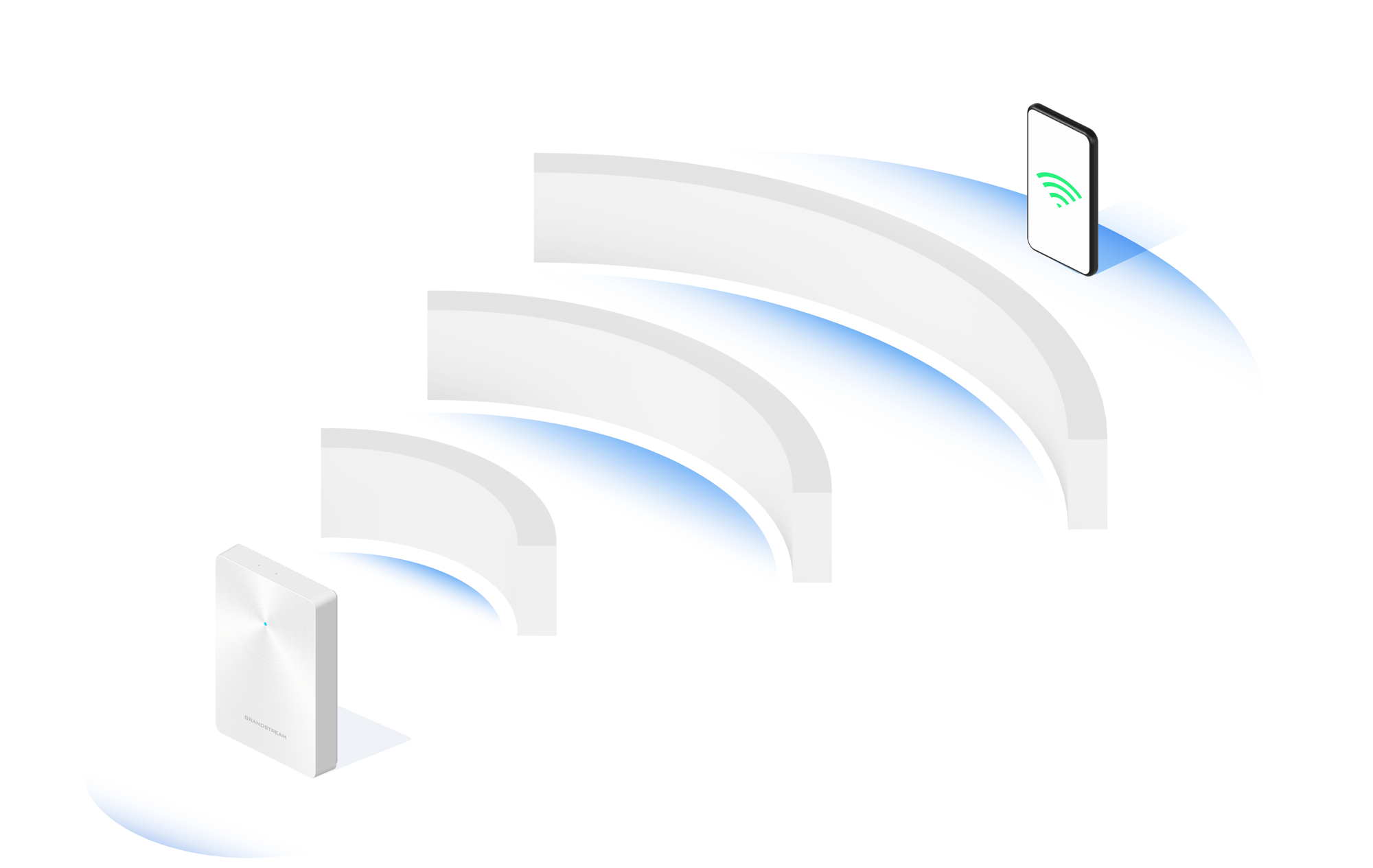

    5 GHz High-Performance & Extended Range





    In the 5 GHz band of the GWN7671, its 3×3:2 antenna architecture dedicates 1 extra antenna to support Xtra Range 2.0 technology, allowing for superior signal penetration that effortlessly reaches through walls and ensures seamless edge-to-edge coverage.

    Moreover, its wireless rate in the 5 GHz band is up to 2,882 Mbps with a channel bandwidth of up to 160 MHz.

    GWN7671_FE_06

    Product Highlights

    GWN7671 Key Deployment Scenarios

    The GWN7671 can be deployed in various scenarios including:
    • Offices: Small and Medium offices can utilize the GWN7671 to create a mobile working environment for employees that doesn't sacrifice performance.
    • Commercial Shops: Commercial stores can use the GWN7671 to create Wi-Fi environments for both guests and staff.
    • Hospitality: With its in-wall mount installation, coverage range, and network speeds that GWN7671 is an ideal access point that can be deployed in hotel rooms and other common areas of a hotel or resort.

    Wi-Fi 7

    Wi-Fi CERTIFIED 7™ is here to meet the growing user demands for immersive, interactive technology. Based on IEEE 802.11be technology, Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

    Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

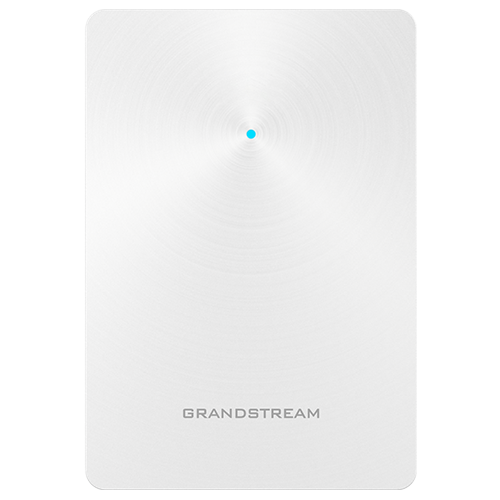

    Product Comparison

    NameGWN7671
    Specs
    Client Devices 256
    2.4G Throughput 688Mbps (2x2:2 MU-MIMO)
    5G Throughput 2882Mbps (3x3:2 MIMO)
    6G Throughput N/A
    Range Up to 175 Meters

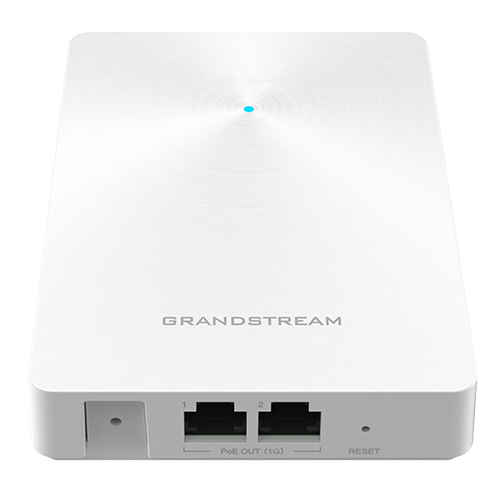

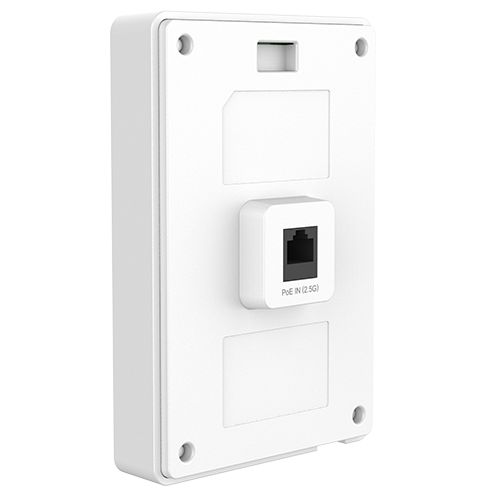

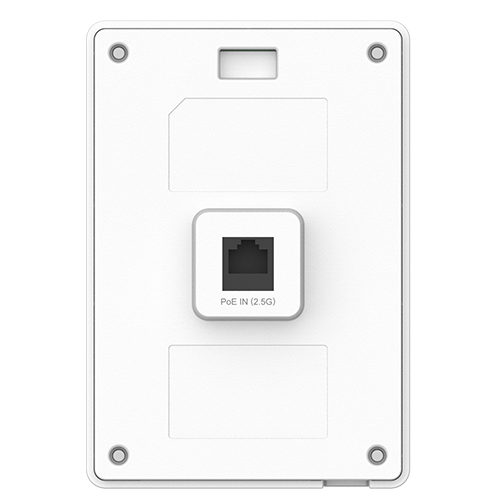

    Network Interfaces 1× 2.5 GbE RJ45 port (Supports PoE Input) 2× 1 GbE RJ45 ports (Supports PoE Output)
    PoE/PoE+ Supports PoE+ 802.3at; Maximum Power Consumption: 13.5W (excluding PoE output)
    Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be
    SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
    Antennas 1 single frequency antenna and 2 dual-frequency antennas
    Wi-Fi and Security Systems Open System, OSEN, WPA2-PSK (Personal), WPA2-802.1x (Enterprise), WPA3-SAE (Personal), WPA3-802.1x (Enterprise), WPA3-OWE (Enhanced Open), WPA/WPA2, WPA2/WPA3, Unique Security Certificate and Random Default Password per Device, Anti-Hacking Secure Boot, Critical Data and Control Lockdown via Digital Signatures

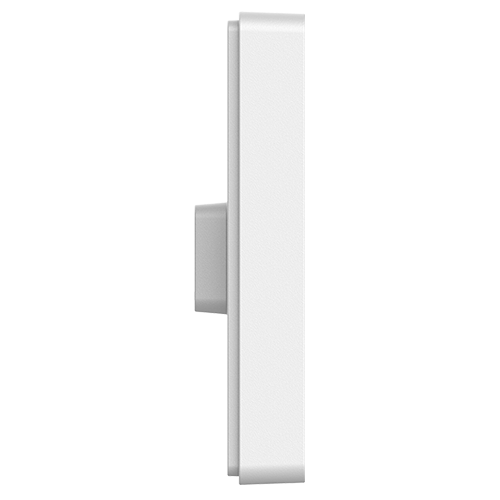

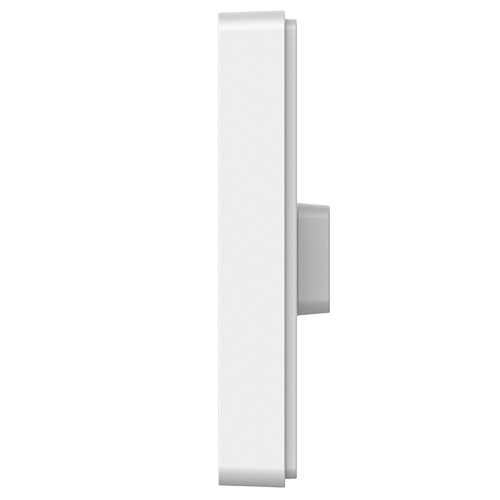

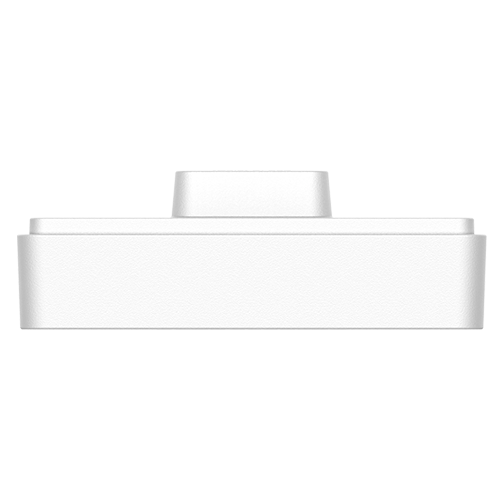

    Dimensions 143 mm × 99 mm × 33.5 mm

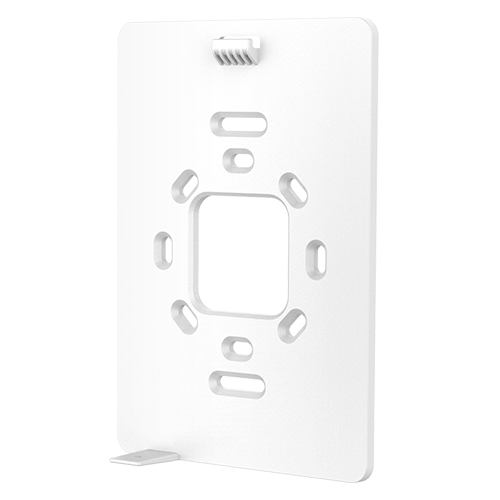

    Mounting In-Wall Mount
